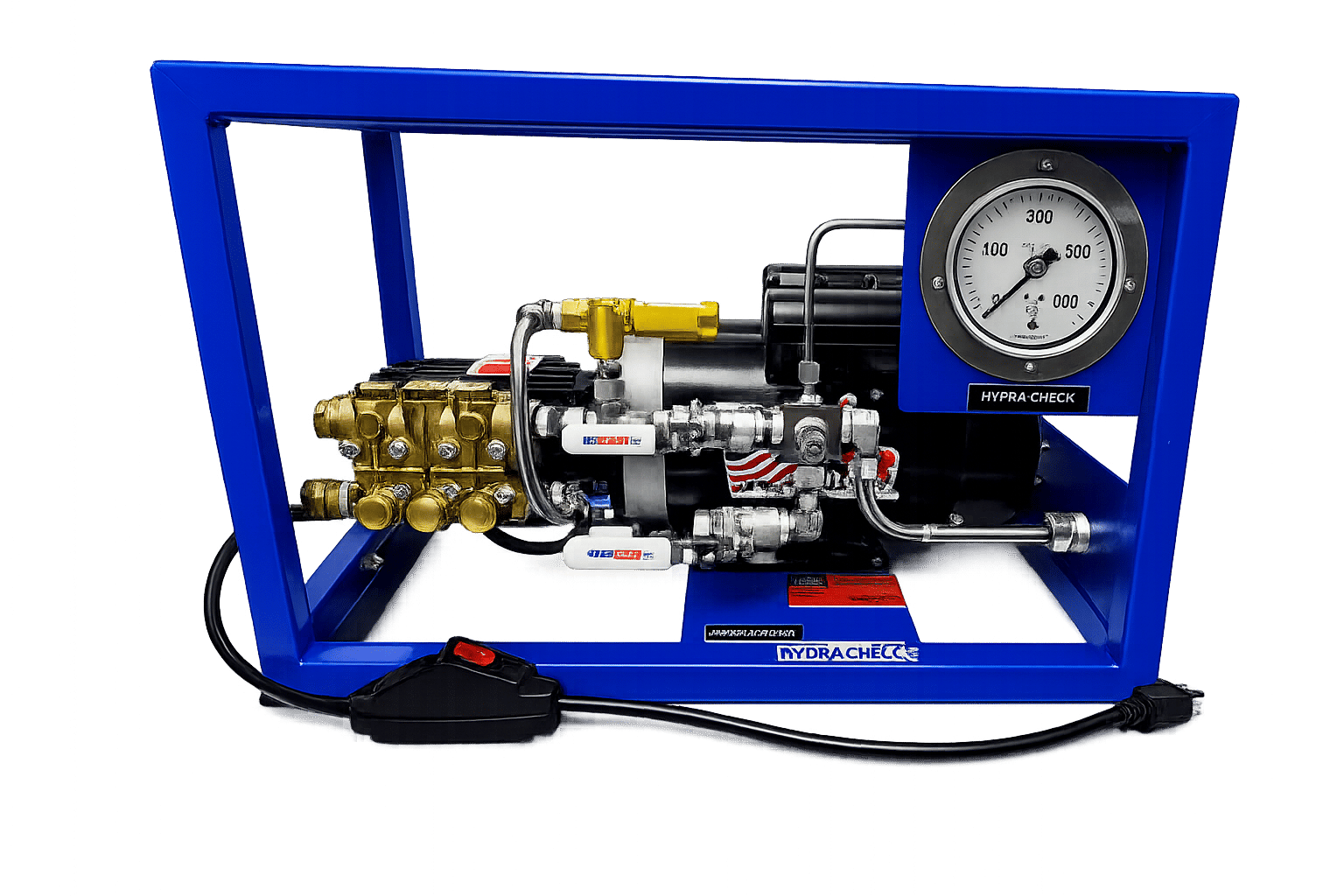

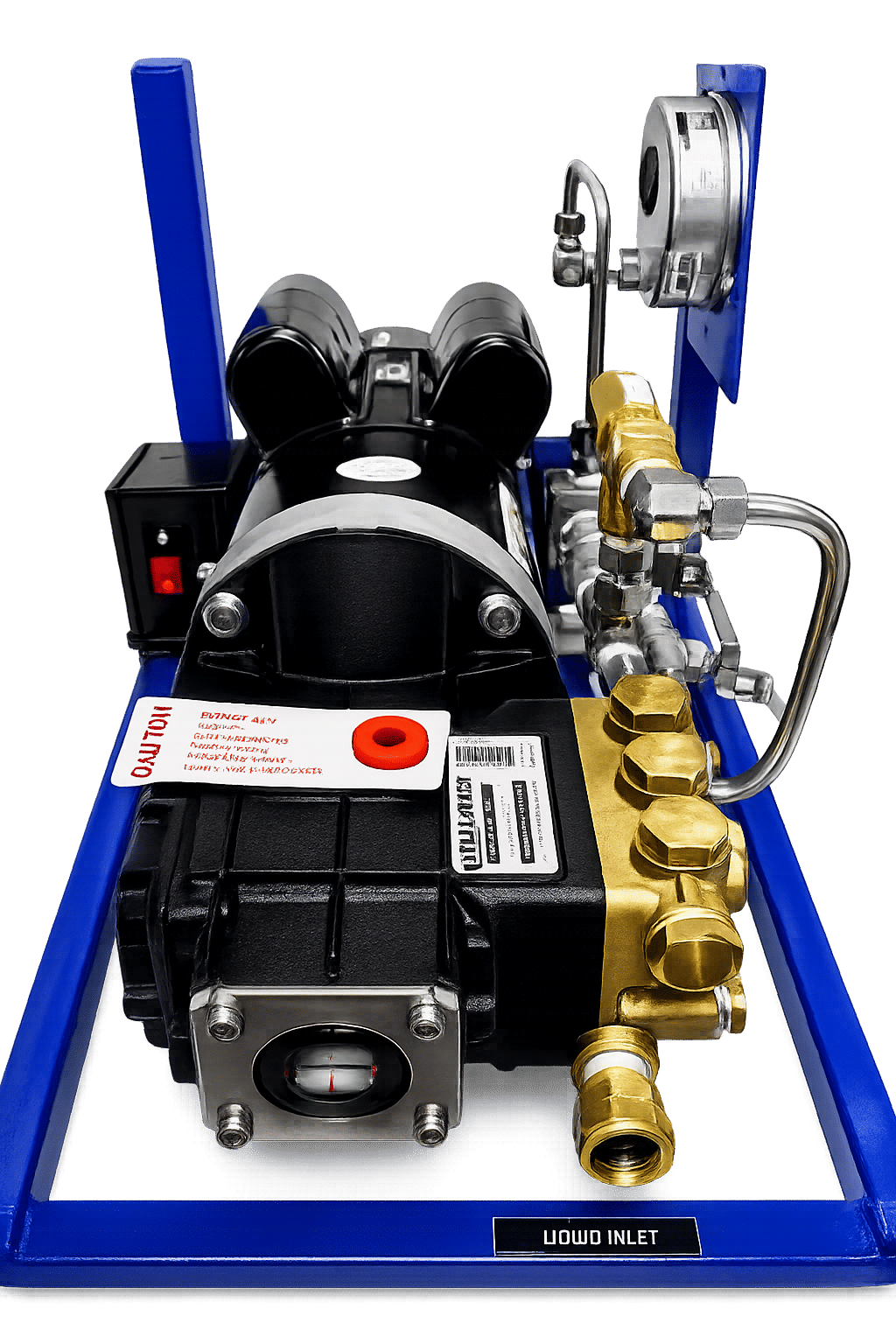

Electric Hydrostatic Test Pump
The Hydrorex M12 Series Electric Hydrostatic Test Pump is designed for hydrostatic pressure testing applications in industrial, commercial, and residential systems. Manufactured by Hydrorex, the M12 series provides reliable pressure generation for testing pipelines, pressure vessels, sprinkler systems, instrumentation systems, and plumbing installations.
Description
The system features a triplex plunger pump with stainless steel flow components, supporting a wide range of testing fluids including water, hydraulic fluid, glycol, and oils. Multiple pressure and flow configurations are available, with operating pressures up to 20,000 PSI.
| Pump Type | Triplex Plunger Pump |
| Flow System | Stainless Steel |
| Power Supply | 110V / 220V / 480V |
| Motor Frequency | 50/60 Hz |
| Maximum Pressure | Up to 20,000 PSI |
| Maximum Flow Rate | 6 GPM |
| Tank Suction Flow | 3 GPM |
| Pressure Regulation | Adjustable Pressure Regulator |
| Compatible Fluids | Water, Hydraulic Fluid, Glycol, Oils |
| Applications | Hydrostatic Testing, Pipelines, Pressure Vessels, Sprinkler Systems |
| System Weight | Approx. 85 lbs |
| System Dimensions | 22" × 14" × 16" |
| Shipping Weight | Approx. 108 lbs |
| Shipping Dimensions | 30" × 20" × 24" |
| HS Code | 8413.50.0050 |
| Model | Output Pressure | Output Flow | Power |
|---|---|---|---|
| M12-300 | 300 PSI (20 BAR) | 4 GPM (15 LPM) | 110V / 220V – 1HP |
| M12-500 | 500 PSI (20 BAR) | 4 GPM (15 LPM) | 110V / 220V – 1HP |
| M12-1000 | 1000 PSI (20 BAR) | 2 GPM (8 LPM) | 110V / 220V – 1.5HP |
| M12-1500 | 1500 PSI (20 BAR) | 2 GPM (8 LPM) | 110V / 220V – 1.5HP |
| M12-2000 | 2000 PSI (20 BAR) | 4 GPM (15 LPM) | 220V – 2HP |
| M12-7000 | 7000 PSI (20 BAR) | 4 GPM (15 LPM) | 220V / 480V – 3 Phase – 20HP |
| M12-18000 | 18000 PSI (20 BAR) | 4 GPM (15 LPM) | 220V / 480V – 3 Phase – 45HP |
| M12-20000 | 20000 PSI (20 BAR) | 2 GPM (8 LPM) | 220V / 480V – 25HP |
Features
- Electric hydrostatic pressure testing system
- Triplex plunger pump design
- Stainless steel flow system
- Adjustable pressure regulator
- Compatible with multiple testing fluids
- Available in multiple pressure and flow configurations
- Suitable for industrial and residential applications
- Continuous water source or tank operation
- Integrated high-quality USA-made pressure components
- Suitable for pipelines, vessels, and sprinkler testing
