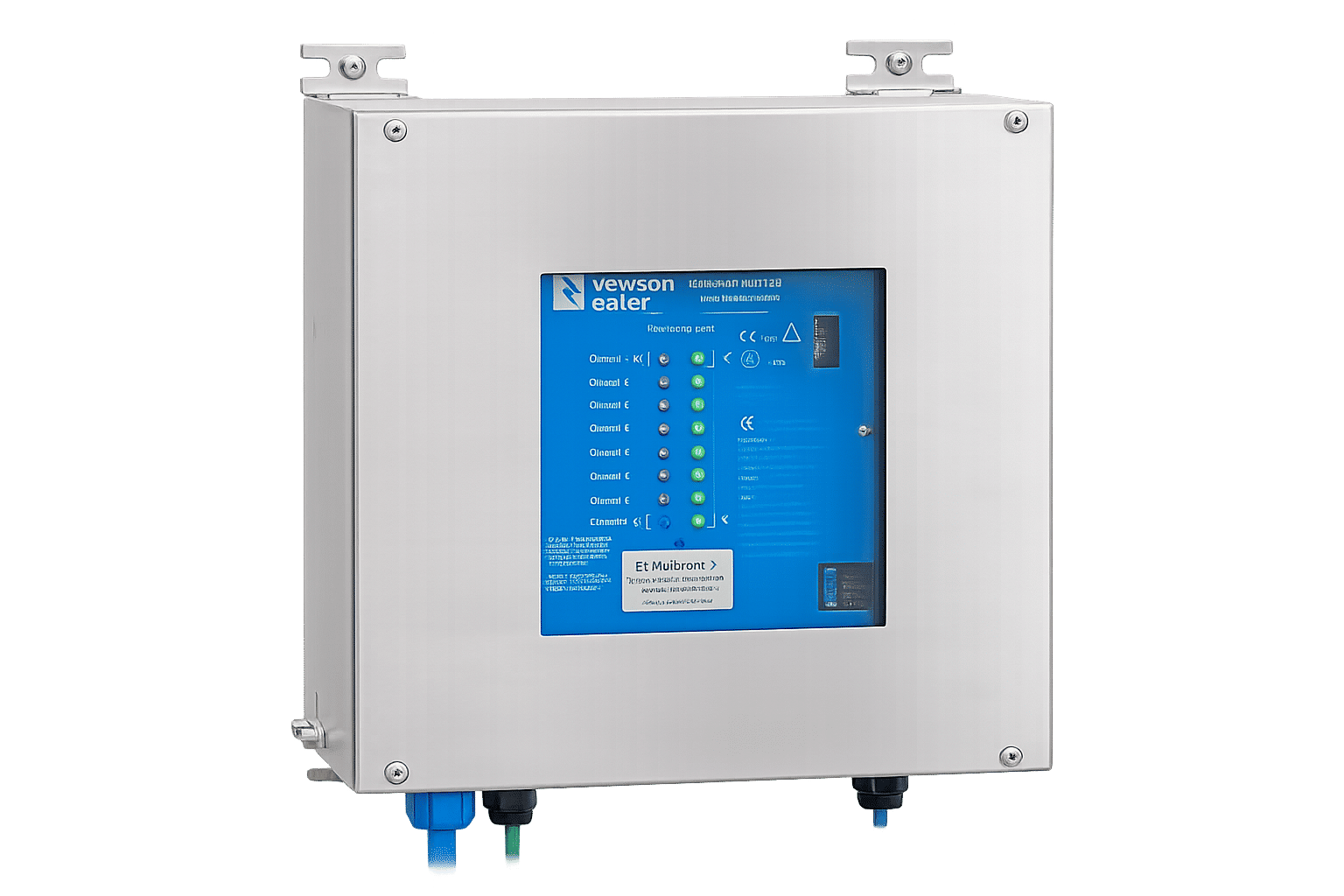

Earth-Rite® MULTIPOINT II

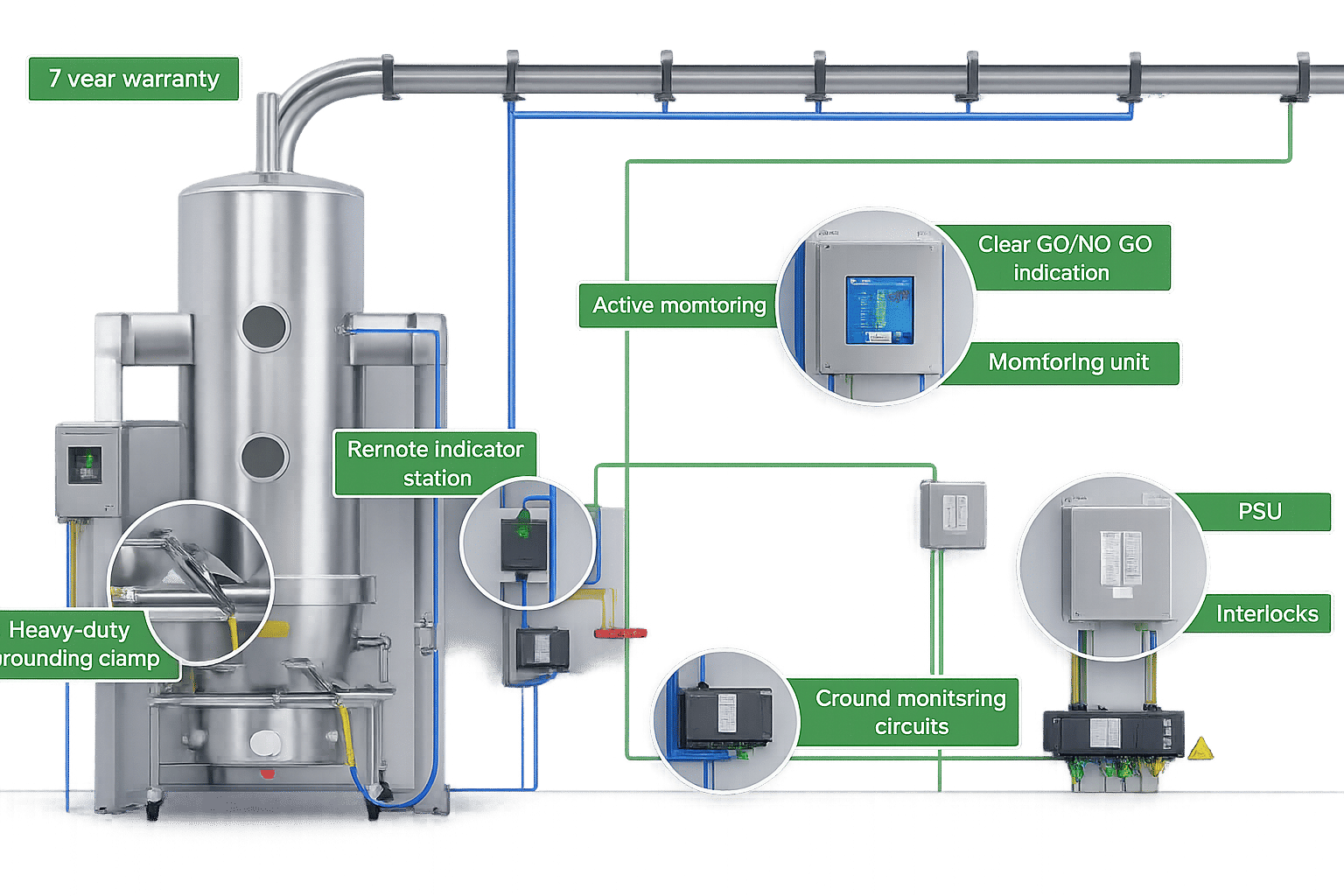

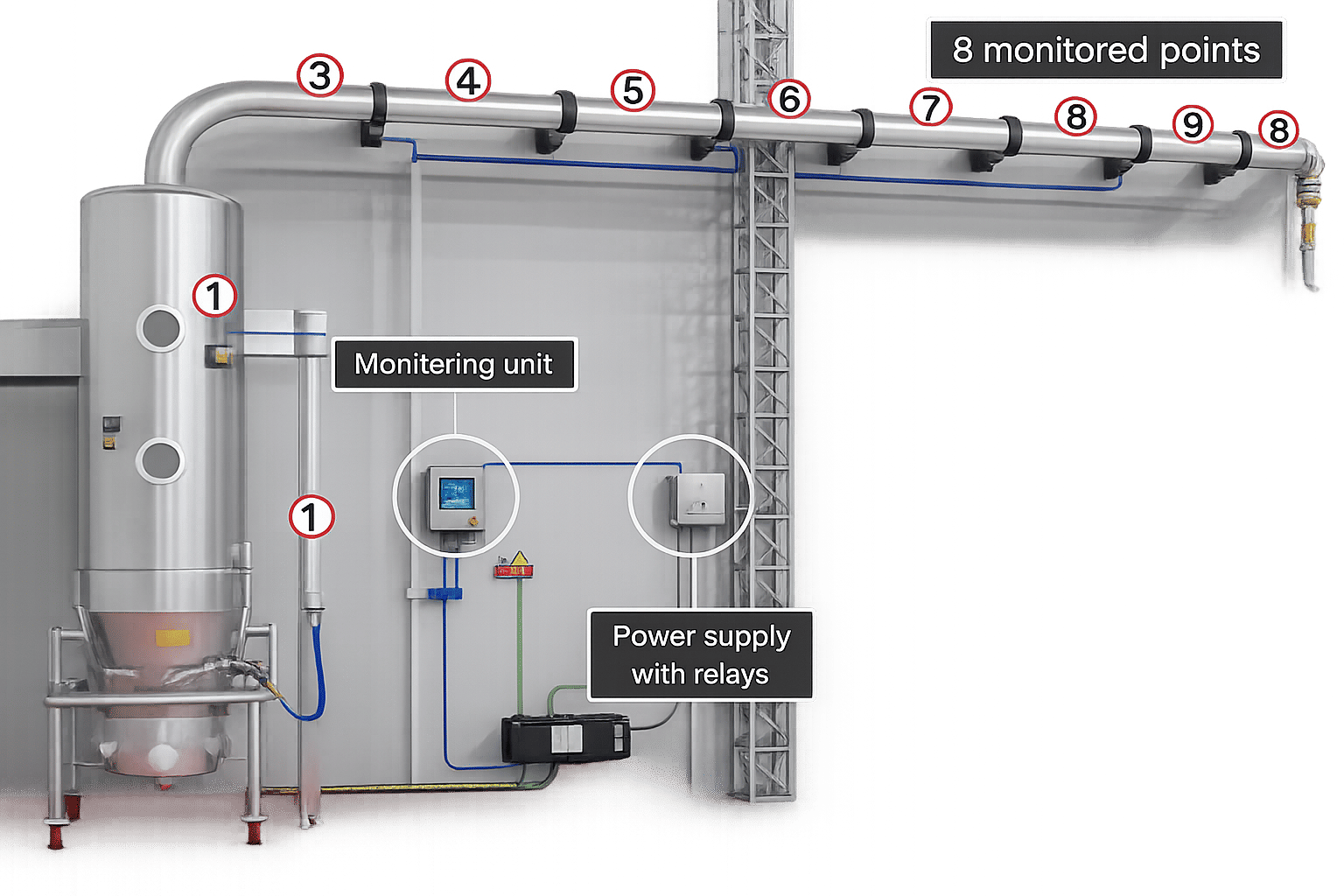

The Earth-Rite® MULTIPOINT II is an eight-channel static grounding system designed to monitor the grounding status of multiple metallic plant items simultaneously. It is used for equipment such as drums, totes, railcars, pharmaceutical process equipment, and fixed industrial machinery.
EquipmentMulti-channel Static Grounding System
ManufacturerNewson Gale
Type / Model / Part noEarth-Rite® MULTIPOINT II
Product description
Each channel independently verifies that the grounding resistance is within safe limits (≤ 10 Ω) before allowing a permissive condition for operation. The system provides continuous monitoring and interlocking capability for multi-point industrial processes.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Multi-channel static grounding system |
| Channels | Up to 8 independent monitoring points |
| Monitoring Function | Continuous grounding resistance monitoring |
| Resistance Threshold | ≤ 10 Ω per channel |
| Power Supply | 110 V / 240 V AC (50–60 Hz) |
| Status Indication | Red / Green LEDs per channel |
| Interlock Output | One common dry/volt-free relay (expandable options available) |
| Installation Type | Fixed or mobile equipment connections |
Features
- Eight independent grounding monitoring channels
- Continuous verification of grounding resistance (≤ 10 Ω each point)
- Individual red/green LED status indication per channel
- Optional remote indicator stations for hazardous locations
- Intrinsically safe design for use in classified areas
- Dedicated interlocking capability for process control
- Supports grouping of circuits for multi-step operations
- Suitable for fixed and mobile industrial equipment
- Watchdog self-checking system for software integrity monitoring
- Fault indication via red LEDs or fault relay output
- Flexible installation with clamps, cables, or connector systems
