Earth-Rite® II FIBC

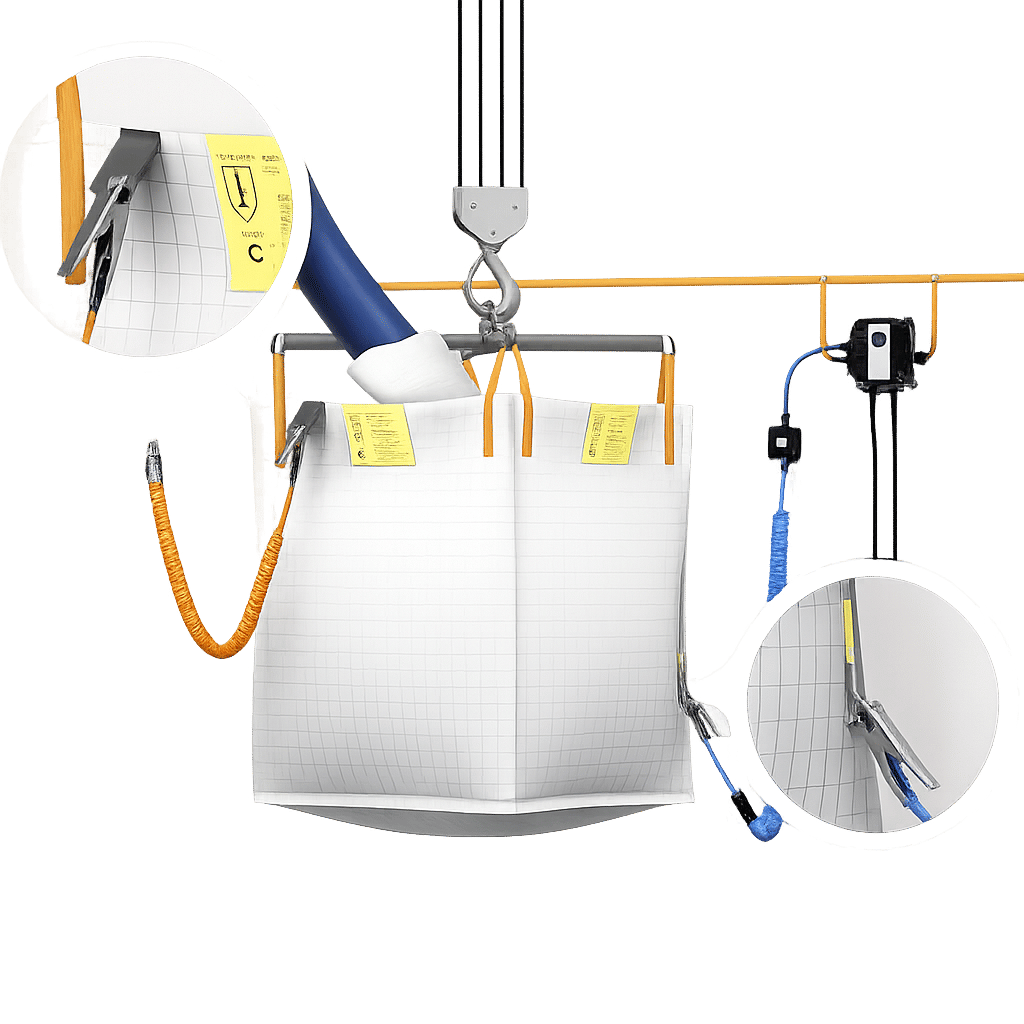

The Earth-Rite® II FIBC by IEP Technologies is a static grounding system designed for Type C Flexible Intermediate Bulk Containers (FIBCs) used during powder transfer operations. It ensures safe dissipation of electrostatic charges by continuously monitoring the grounding integrity of conductive FIBC bags.
Product description
The system verifies that the resistance of the bag remains below the safety threshold of 1 × 10⁸ Ω, as defined in NFPA 77 (2024 edition). This helps reduce the risk of electrostatic ignition in hazardous environments and prevents static shock hazards to personnel.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | FIBC static grounding and monitoring system |
| Application | Type C FIBC powder transfer operations |
| Monitoring Function | Continuous resistance monitoring |
| Resistance Threshold | ≤ 1 × 10⁸ Ω |
| Standard Compliance | NFPA 77 (2024 edition) |
| System Function | Grounding verification and static control |
Features
- Continuous monitoring of FIBC grounding integrity
- Ensures safe electrostatic discharge control during powder transfer
- Helps prevent incendive static discharge in hazardous areas
- Reduces risk of electrostatic shock to personnel
- Compatible with Type C conductive FIBC bags
- Designed for compliance with NFPA 77 requirements
- Supports safe grounding verification in industrial operations

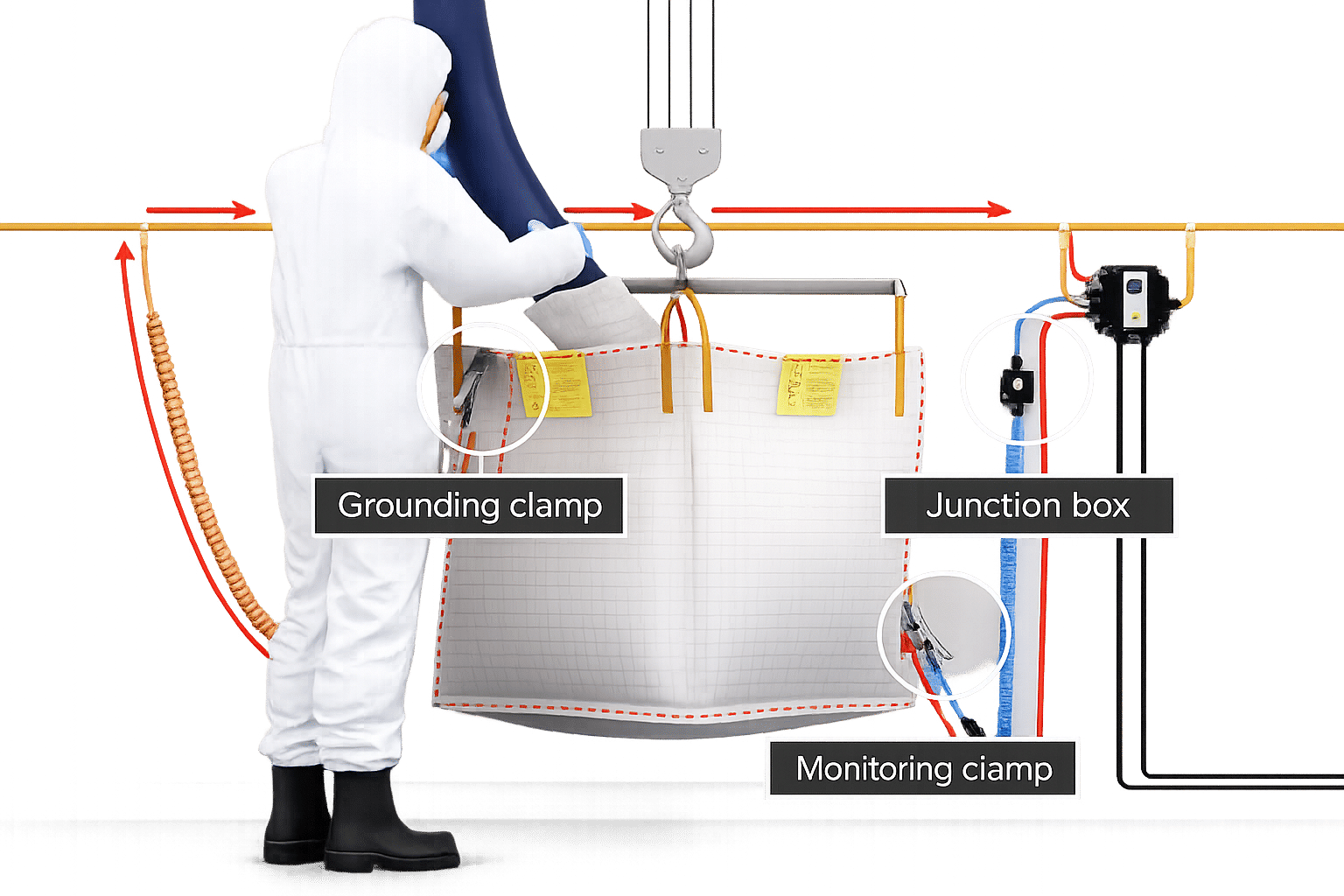

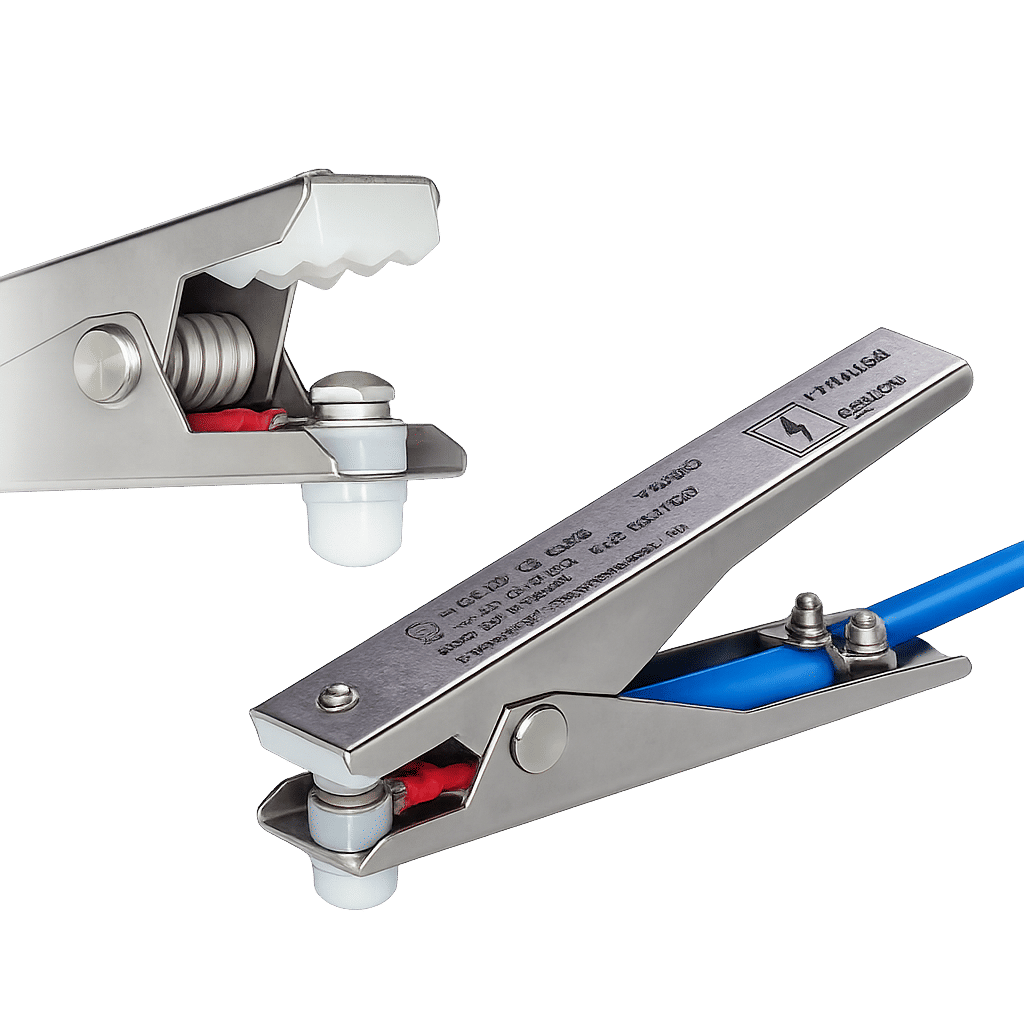

Monitoring clamp (vesx45-f)
Description
The monitoring clamp is designed to connect securely to Type C FIBC grounding tabs and verify grounding continuity without damaging the connection point.
Features
- Serrated nylon block for secure attachment
- Rounded contact design for stable electrical connection
- Maintains integrity of FIBC grounding tab
- Extends service life of FIBC bags
- Designed specifically for Type C FIBC grounding points
Safety Note
- Monitoring clamp and grounding clamp must not be attached to the same FIBC tab.
FIBC Exd - DC Version Installation & Operating Instructions
FIBC Exd - AC Version Installation & Operating Instructions
