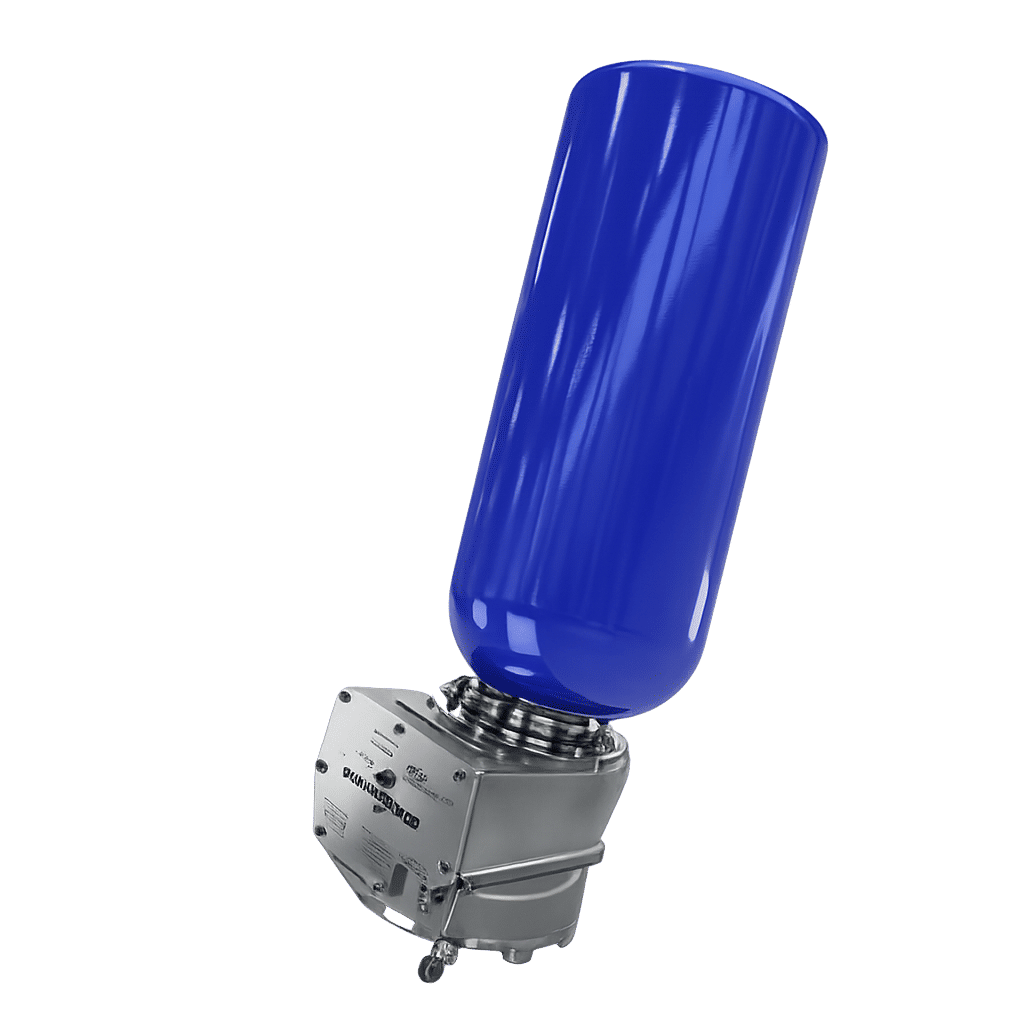

E-Suppressor
The IEP Technologies eSUPPRESSOR™ is a high-rate discharge suppressor designed for explosion suppression and explosion isolation systems in industrial process environments. The unit utilizes an electromechanical activation system that eliminates the need for pyrotechnic devices, improving operational safety while reducing storage, transportation, and licensing requirements.
Product description
Upon detection of an explosion event, the Explosion Protection Control Unit sends an actuation signal to the eSUPPRESSOR™ valve mechanism. The high-speed trigger mechanism opens the valve flap in less than 10 milliseconds, enabling rapid suppressant discharge into the protected equipment or process volume.
The eSUPPRESSOR™ features continuous monitoring of all safety functions, integrated status indication, and SIL2 third-party certification for enhanced system reliability and operational monitoring.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | High-rate discharge suppressor |
| Application | Explosion suppression and isolation |
| Actuation Type | Electromechanical |
| Activation Time | Less than 10 ms |
| Monitoring Functions | Continuous safety function monitoring |
| Pressure Monitoring | Yes |
| Temperature Compensation | Yes |
| Lock-Out-Tag-Out (LOTO) | Monitored |
| Status Indication | Integrated LED indicators |
| Valve Housing Rating | IP67 / NEMA 4X |
| Hazardous Area Rating | Suitable for dust and gas hazardous locations |
| Certification | SIL2 third-party certified |
| Transportation Certification | TPED and UN-DOT |
System Compatibility
- Explosion suppression systems
- Explosion isolation systems
- Existing IEP suppressor flange installations
- Industrial explosion protection systems
Typical Applications
- Dust handling systems
- Industrial process equipment
- Pneumatic conveying systems
- Dust collectors
- Processing plants
- Hazardous industrial environments
Features
- Electromechanical actuation without pyrotechnic devices
- Continuous monitoring of all safety functions
- Rapid suppressant discharge activation
- Integrated monitored Lock-Out-Tag-Out (LOTO)
- Cylinder pressure monitoring with temperature compensation
- LED status indication for operational monitoring
- Compatible with existing IEP suppressor flanges
- SIL2 third-party certified design
- IP67 and NEMA 4X rated valve housing
- Suitable for dust and gas hazardous locations
- Reduced transportation and storage restrictions compared to pyrotechnic systems
