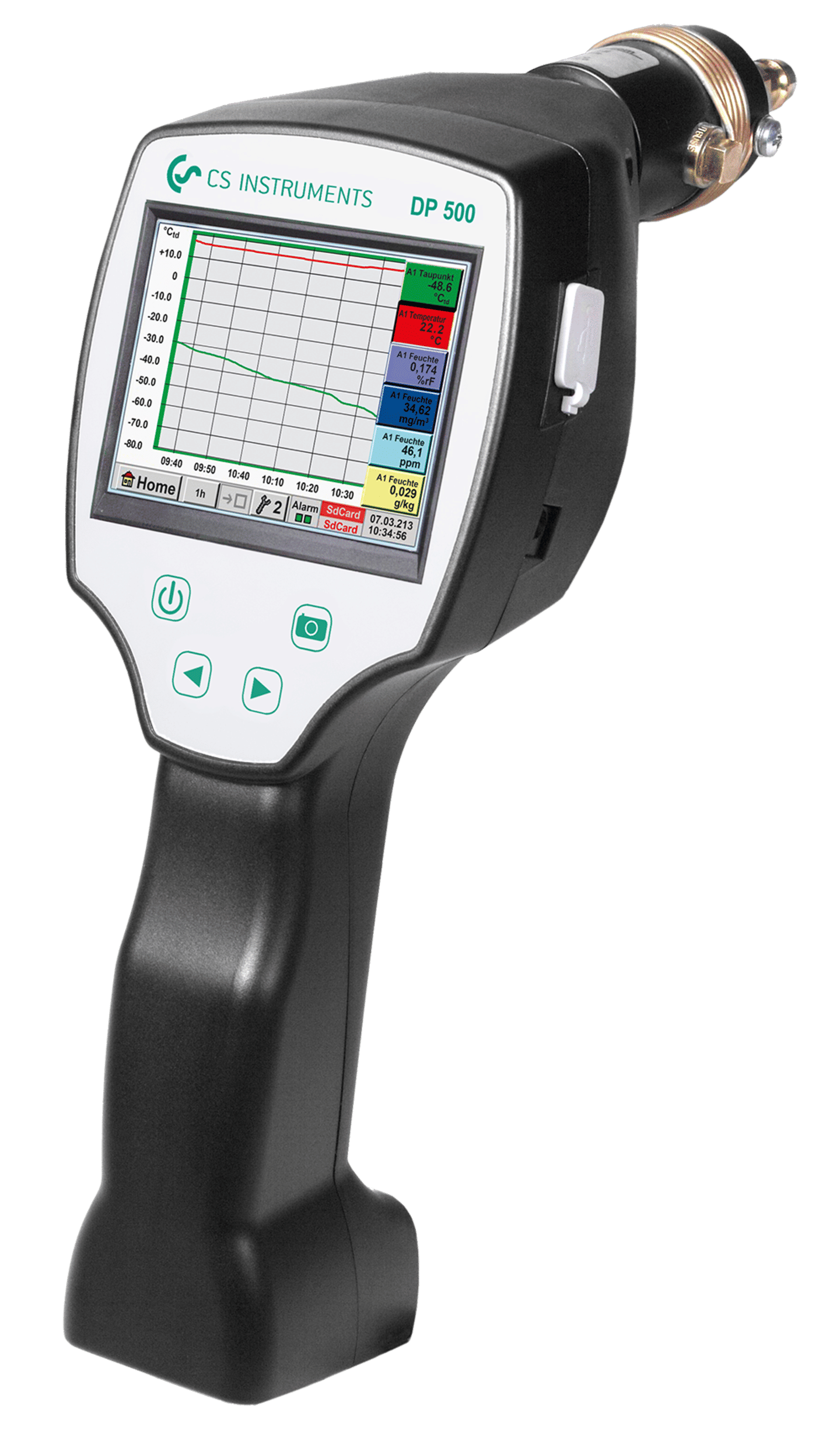

DP 500 - Portable dew point meter with integrated data logger
The DP 500 is a portable dew point meter with an integrated data logger designed for dew point measurement of compressed air dryers down to -80°Ctd dew point. It features a 3.5" graphic touchscreen display for operation and provides graphical display of coloured measurement curves.The instrument is designed to measure the current dew point and graphically display the dew point curve and the switching behaviour of the dryer over an extended period. It can store up to 100 million measured values together with the date and measurement location name. Measurement data can be transferred to a PC via a USB stick and analysed using CS Basic software, enabling measurement data and service reports to be created.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Portable dew point meter |
| Dew Point Measurement Range | Down to -80°Ctd dew point |
| Display | 3.5" graphic display |
| User Interface | Touchscreen |
| Data Logger | Integrated |
| Data Storage Capacity | Up to 100 million measured values |
| Stored Information | Measured values with date and measurement location name |
| Data Transfer | USB interface for reading out via USB stick |
| Moisture Parameters Calculated | g/m³, mg/m³, ppm V/V, g/kg, °Ctdatm |
| Language Support | Up to 8 selectable languages |
Functional Features
- Portable dew point meter with integrated data logger.
- Measures dew point of compressed air dryers down to -80°Ctd.
- Graphically displays coloured measurement curves.
- Measures the current dew point.
- Graphically displays the dew point curve.
- Graphically displays the switching behaviour of the dryer over a longer period of time.
- Quick response time. 3.5" graphic touchscreen display for easy operation.
- Integrated data logger for storing measured values.
- Stores up to 100 million measured values with date and measurement location name.
- USB interface for transferring data via USB stick.
- Measurement data can be analysed using CS Basic software.
- Enables creation of measurement data and service reports.
- Calculates moisture parameters including g/m³, mg/m³, ppm V/V, g/kg, and °Ctdatm.
- Supports up to 8 selectable languages.
Optional Modules / Accessories
- CS Basic software (for analysis of measurement data and creation of service reports).
Typical Applications
- Dew point measurement of compressed air dryers.
- Measuring the current dew point.
- Graphical display of the dew point curve.
- Graphical display of the switching behaviour of the dryer over an extended period.
