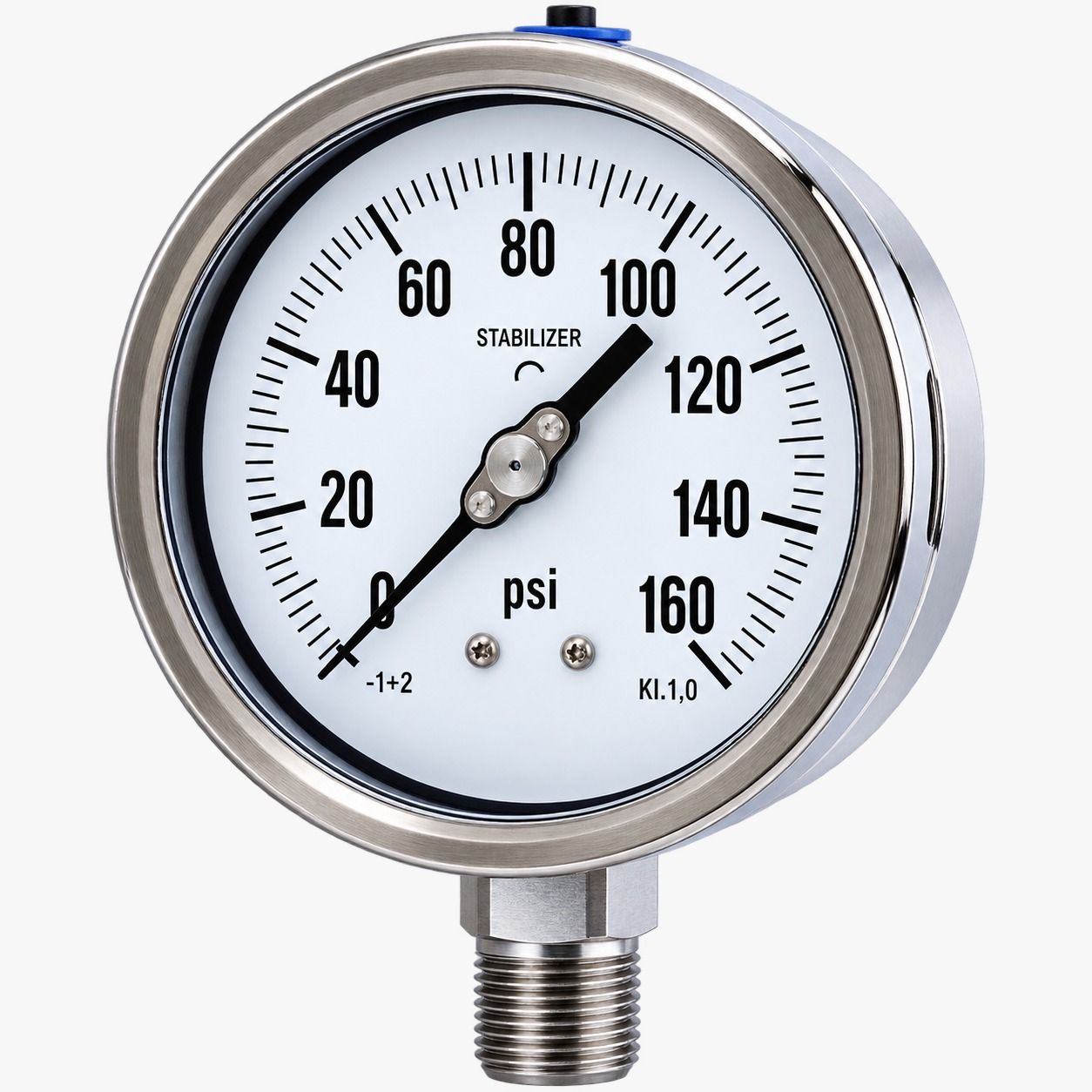

All SS Pressure Gauge
The All SS Pressure Gauge is a robust stainless-steel pressure measurement solution designed for reliable pressure monitoring across demanding industrial and process applications. Featuring stainless-steel wetted components, welded construction and high resistance to harsh operating environments, the gauge provides accurate and dependable pressure indication for a wide range of applications.
Description
The All SS Pressure Gauge is a robust stainless-steel pressure measurement solution designed for reliable pressure monitoring across demanding industrial and process applications. Featuring stainless-steel wetted components, welded construction and high resistance to harsh operating environments, the gauge provides accurate and dependable pressure indication for a wide range of applications.
Specifications
| Parameter | Value |
|---|---|
| Equipment | All Stainless Steel Pressure Gauge |
| Model | P-11 |
| Category | Pressure Gauge |
| Wetted Parts | AISI 316L Stainless Steel |
| Case | AISI 304 Stainless Steel |
| Socket | AISI 316L Stainless Steel |
| Bourdon Tube | AISI 316L Stainless Steel |
| Movement | AISI 304 Stainless Steel |
| Dial | Aluminum |
| Pointer | Micro Zero Adjustable |
| Window | Safety Glass |
| Standard | ASME B40.1 / EN 837-1 |
| Protection Rating | IP65 |
| Operating Pressure Range | Up to 75% of full scale |
| Over Pressure Limit | Up to 125% of maximum scale value |
| Process Temperature | Up to 100°C |
| Ambient Temperature | -20°C to +65°C |
| Joint Construction | TIG Argon Arc Welding |
| Accuracy | As per ASME B40.1 |
Technical specification
| Parameter | Specification |
|---|---|
| Model | P-11 |
| Case Material | AISI 304 Stainless Steel |
| Wetted Parts | AISI 316L Stainless Steel |
| Socket Material | AISI 316L Stainless Steel |
| Bourdon Tube | AISI 316L Stainless Steel |
| Movement | AISI 304 Stainless Steel |
| Dial | Aluminum |
| Window | Safety Glass |
| Standard | ASME B40.1 / EN 837-1 |
| Operating Pressure | 75% of Full Scale |
| Over Pressure | 125% of Maximum Scale Value |
| Process Temperature | Max. 100°C |
| Ambient Temperature | -20°C to +65°C |
| Protection | IP65 |
| Accuracy | As per ASME B40.1 |
| Construction | TIG Argon Arc Welded |
Design & construction
Stainless Steel Construction: The gauge uses an AISI 304 stainless-steel case with AISI 316L stainless-steel wetted components, providing durability and resistance to corrosive process environments. Welded Assembly: TIG Argon Arc welding is used for the gauge joints, providing a robust construction suitable for demanding pressure measurement applications. Accurate Pressure Indication: The gauge incorporates a precision mechanical movement and micro zero-adjustable pointer for dependable pressure indication in industrial process applications. Safety & Protection: The safety glass window and IP65-rated construction provide additional protection for the instrument in demanding operating environments.
System Components
- AISI 304 Stainless Steel Case
- AISI 316L Stainless Steel Socket
- AISI 316L Stainless Steel Bourdon Tube
- AISI 304 Stainless Steel Movement
- Aluminum Dial
- Micro Zero-Adjustable Pointer
- Safety Glass Window
- TIG Argon Arc Welded Joints
Applications
- Oil & Gas Processing
- Marine & Offshore Equipment
- Petrochemical Plants
- Chemical Processing
- Power Generation
- Water & Wastewater Treatment
- Hydraulic Systems
- Pneumatic Systems
- Process Instrumentation
- Industrial Machinery
- Pressure Monitoring Systems
- Skid-Mounted Process Equipment
Features
- All stainless-steel construction for demanding environments
- AISI 316L stainless-steel wetted components
- AISI 304 stainless-steel case and movement
- Designed according to ASME B40.1 / EN 837-1 standards
- TIG Argon Arc welded construction
- Safety glass window
- Micro zero-adjustable pointer
- IP65 protection against dust and water ingress
- Suitable for corrosive and harsh industrial environments
- High resistance to mechanical and process conditions
- Available for a wide range of pressure measurement requirements
Benefits
- Reliable pressure measurement in demanding applications
- Excellent corrosion resistance
- Durable stainless-steel construction
- Reduced risk of leakage through welded construction
- Suitable for marine, offshore and industrial environments
- Improved measurement reliability
- Long service life with minimal maintenance
- Suitable for continuous process monitoring
- Helps maintain safe and efficient operation of pressure systems
Why choose all ss pressure gauge?
The All SS Pressure Gauge combines stainless-steel construction, reliable mechanical pressure measurement and industrial-grade protection to provide dependable performance in demanding process environments. Its corrosion-resistant wetted components and robust construction make it suitable for marine, offshore, oil & gas, chemical and general industrial applications.
