ENAR
Industrial

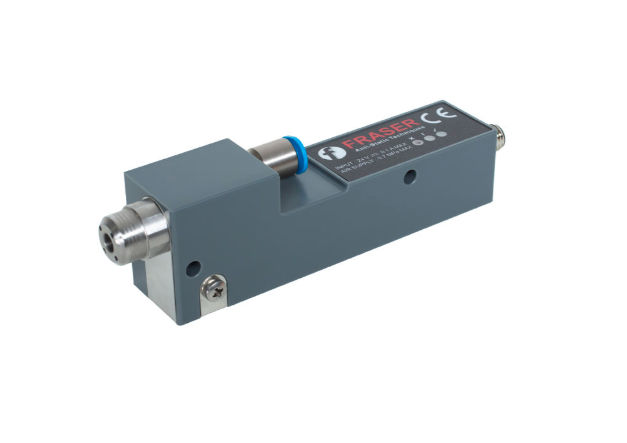

8001 Precision Point Ioniser
The 8001 Precision Point Ioniser is a compact static neutralisation and cleaning device designed for controlled environments, sensitive electronics, and compact industrial applications. It provides precision ionisation for removing static charges and airborne contaminants in cleanrooms and ESD-protected areas. The unit operates on 24 V DC with integrated electronics and delivers balanced ionisation performance better than ±20 V, exceeding ANSI ESD STM 3.1 requirements.
Key Features
- 24 V DC self-contained operation
- Integrated electronics with no external high-voltage generator required
- Balanced ionisation better than ±20 V
- Three-colour LED operational status indicators
- Remote monitoring outputs for system integration
- Replaceable tungsten emitter for extended service life
- Suitable for ISO Class 4 cleanrooms
- Designed for precision static neutralisation and dust removal
Applications
- ESD protected areas (EPAs)
- Electronics manufacturing
- Semiconductor handling
- Medical and pharmaceutical production
- Cleanroom static control
- Precision dust and contaminant removal
Specifications
| Parameter | Specification |
|---|---|
| Construction | PVC body, stainless steel base, tungsten emitter |
| Dimensions | 123 × 25 × 32 mm (L × W × H) |
| Weight | 80 g |
| Output Voltage | Up to 3 kV |
| Operating Frequency | 65 – 70 kHz |
| Ionisation Balance | Better than ±20 V |
| Electrical Input | 24 V DC (21–28 V), max 0.1 A |
| Connector | M8 × 4-pin male connector |
| Air Supply Pressure | 0 – 5 Bar max, 0.5 – 2.0 Bar optimum |
| Air Connection | Push-fit connector for 6 mm OD tubing |
| Operating Temperature | 0 – 55 °C |
| Humidity | 70% RH non-condensing max |
| Remote Monitoring | ‘OK’ and ‘Attention’ status outputs |
| PLC Compatibility | IEC 61131-2 Type 3 inputs |
| Certification | CE |
| Cleanroom Rating | ISO Class 4 |
Additional Features
- Local operational status via three-colour LEDs
- Remote status and cleanliness monitoring through 24 V signals
- Accessories available for wide-area ionisation, flexible nozzles, extensions, and special pipework
- Optional 100–250 V AC power supply available
