715 Static meter

Name: 715 Static meter
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 715 Static Meter is a handheld instrument designed for measuring and investigating static electricity in industrial environments. It enables engineers to identify static charge generation, monitor corrective measures, and verify acceptable static levels in production processes and products. The meter measures static voltages up to 200 kV at a distance of 100 mm and provides automatic range selection for accurate and efficient operation.

Static Neutralization and Generations

Static Mesurement

EquipmentStatic Meter

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no715 Static Meter

Download PDF

Technical specification

Specification item	Details
Equipment type	Handheld static electricity meter
Application	Static measurement and analysis in industrial environments
Measurement distance	100 mm
Measurement range	0–20 kV and 20–200 kV
Resolution	10 V (0–20 kV), 100 V (20–200 kV)
Accuracy	Better than ±5% at calibration
Range selection	Automatic
Drift	<0.1% in 10 seconds
Construction	Anodised aluminium case with recessed stainless steel sensing plate
Dimensions	124 × 64 × 24 mm
Weight	175 g
Calibration	150 mm × 150 mm charge plate standard
Operation	Zero, hold, and resume functions with automatic shut-off
Power supply	9 V PPS battery

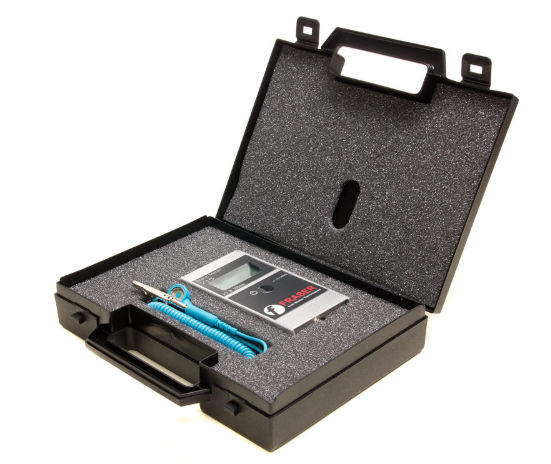

Included accessories	Carrying case, battery, earth lead, calibration certificate
Environmental limits	70% RH non-condensing max
Certification	CE, EN-500081-1 (EMC), BS7506-2
Optional version	ATEX certified EX-715 Static Meter
