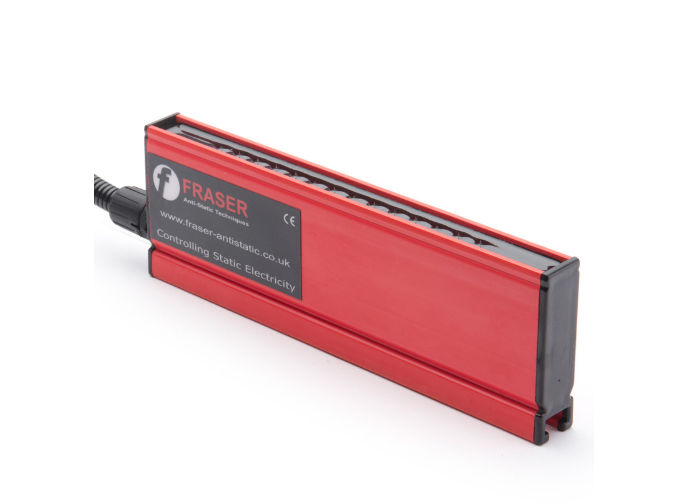

7130 / 7150 / 7160 Generator Bars
The 7130, 7150, and 7160 Generator Bars are industrial charging electrodes designed for safe, controllable, and reliable static charge application in temporary adhesion processes. These heavy-duty generator bars are used with Fraser IONFIX™ static generators for applications including interleaving, in-mould labelling (IML), laminating, wrapping, chill rollers, bag making, and labelling systems.
Product description
The bars feature individually resistively coupled tungsten emitters for long operational life and consistent charge distribution. Fully encapsulated construction improves reliability and operational safety in demanding industrial environments.
The 7160 Generator Bar is the standard model for use with IONFIX™ generators and supports voltages up to 60 kV, while the 7130 and 7150 models are designed for compatibility with older 30 kV and 50 kV generators.
Features
- Designed for temporary electrostatic adhesion applications
- Compatible with IONFIX™ Compact and IONFIX™ Pro generators
- Supports operation up to 60 kV
- Individually resistively coupled tungsten emitters
- Fully encapsulated construction for durability and safety
- Standard 10 mm emitter pitch for even charge distribution
- Optional 5 mm emitter pitch available
- Flexible cable conduit with 180° or optional 90° cable exit
- Long operational life with low maintenance requirements
- Suitable for high-performance industrial machinery
Technical specifications
| Specification | Details |
|---|---|
| Construction | Extruded FR-ABS with ABS end caps and epoxy resin |
| Emitters | Tungsten emitters at 10 mm pitch |
| Dimensions | 20 × 69 mm (W × H) |
| Available Lengths | 200 mm minimum, then 100 mm increments up to 4000 mm |
| Active Length | 70 mm less than overall length |
| Specialist Option | 60 mm version available |
| Cable | 2 m of 60 kV cable with HV connector |
| Cable Protection | Flexible nylon conduit |
| Minimum Bend Diameter | 100 mm |
| Cable Exit Options | 180° standard, optional 90° outlet |
| Safety Resistance | 170 MΩ resistance |
| Operating Environment | Clean, dry, oil-free location |
| Operating Temperature | 0 – 60 °C |
| Humidity | 70 % rH non-condensing max |
| Generator Compatibility | 7130: 30 kV generators,7150: 50 kV generators,7160: All IONFIX™ generators |
| Certification | CE |
Optional configurations & accessories
| Option | Details |
|---|---|
| T5 Variant | 5 mm tungsten emitter pitch with 400 MΩ resistance |
| Emitter Mask | Part No. 715003, 1 m length cut-to-size masking strip |
| Cable Outlet | Optional 90° cable outlet |
| Extended Cable Lengths | Available upon request |
