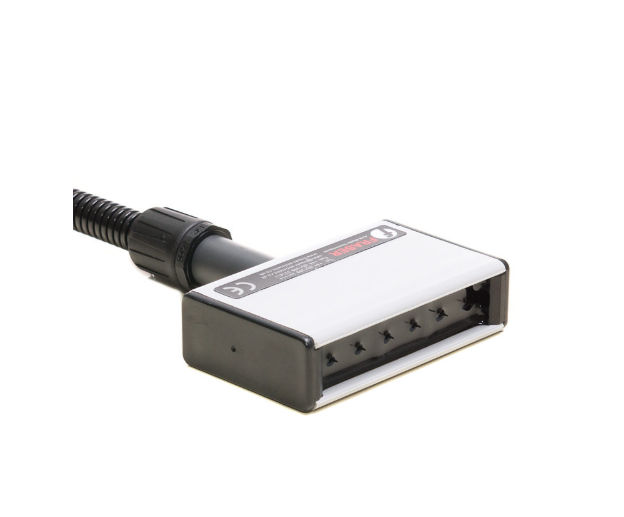

7090 / 7095 Static Pinners
The 7090 and 7095 Static Pinners are compact electrostatic charging electrodes designed for precise pinning and adhesion of small areas and lightweight materials. Operating with 30 kV static generators, they are used in processes such as trim charging, edge pinning, label positioning, and in-mould labelling (IML). The design provides controlled, high-intensity electrostatic fields for consistent material holding and positioning.
Technical Specification & Spare Parts:
- Operating Voltage: Up to 30 kV (with compatible generator)
- Emitter Type: Tungsten, resistively coupled
- Emitter Pitch: 5 mm (7095 series)
- Construction Materials: UL94 V-0 rated encapsulated body
- Cable: 2 m HV cable with protective nylon conduit
- Minimum Bend Radius: 100 mm
- Electrical Safety: 100 MΩ resistance for shockless operation
- Operating Temperature: Up to 60 °C
- Environmental Requirement: Clean, dry, oil-free environment
- Certification: CE
Model variants:
* 7090: Compact tubular design for point charging applications Diameter: 20 mm Length: 100 mm (body), 123.5 mm including connector Emitters: 3 tungsten emitters
* 7095 Series: Short-range, high-intensity charging electrodes 7095-4: 36 mm length, 100 g 7095-8: 56 mm length, 120 g 7095-12: 76 mm length, 140 g (high-temperature version available up to 100 °C)
Compatibility
- Designed for use with 30 kV static generators (e.g., IONFIX systems)
- Suitable for integration in automated or manual electrostatic processes
Options
- High-temperature version (7095-12 HT, up to 100 °C)
- Alternative electrode lengths depending on application requirements
