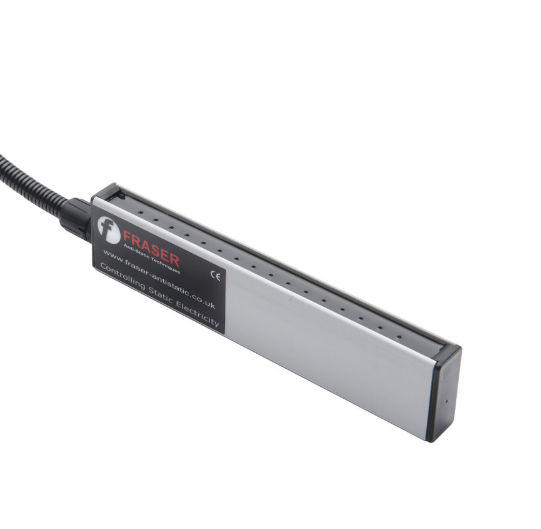

7080 / 7081 Generator Bar
The 7080 and 7081 Generator Bars are medium-duty static charging electrodes designed to provide safe, controllable, and reliable electrostatic charge application for temporary adhesion processes. These compact generator bars are used in a wide range of industrial applications such as interleaving, labelling, pinning, wrapping, bag making, and in-mould labelling (IML).
Product description
When used with Fraser IONFIX™ 30 kV generators, the 7081 model provides full operational control and feedback for stable and efficient performance. The 7080 model offers compatibility with older Fraser generator systems.
Both versions feature encapsulated construction and resistively coupled emitters to ensure safe, spark-free operation and long service life.
Features
- Designed for medium-duty electrostatic adhesion applications
- Compatible with 30 kV IONFIX™ Compact and Pro generators
- 7081 model supports full control with current generator systems
- 7080 model compatible with older Fraser 7330 and 7324 generators
- Compact and rigid construction for easy installation
- Fully encapsulated design for safety and reliability
- Resistively coupled emitters for spark-free operation
- Standard 10 mm emitter pitch for uniform charge distribution
- Optional 5 mm emitter pitch available
- Flexible nylon conduit cable protection
- Optional 90° cable exit configuration
- Suitable for continuous industrial use
Technical specifications
| Specification | Details |
|---|---|
| Construction | Extruded PVC with ABS end caps and epoxy resin |
| Emitters | Stay-sharp alloy emitters at 10 mm pitch |
| Dimensions | 20 × 45 mm (W × H) |
| Available Lengths | 100 mm minimum, then 100 mm increments up to 4000 mm |
| Active Length | Overall length minus 70 mm |
| Special Option | 60 mm version available |
| Cable | 2 m HV cable standard |
| Max Cable Length | Up to 10 m |
| Cable Protection | Flexible nylon conduit |
| Minimum Bend Diameter | 100 mm |
| Cable Termination | HV connector |
| Safety Resistance | 100 MΩ |
| Operating Environment | Clean, dry, oil-free environment |
| Operating Temperature | 0 – 60 °C |
| Humidity | 70 % rH non-condensing max |
| Generator Compatibility | 7081: 30 kV IONFIX™ generators,7080: Fraser 7330 and 7324 generators |
| Certification | CE |
Optional configurations & accessories
| Option | Details |
|---|---|
| T5 Variant | 5 mm emitter pitch (7080-T5 / 7081-T5) |
| Cable Outlet | 90° cable exit option |
