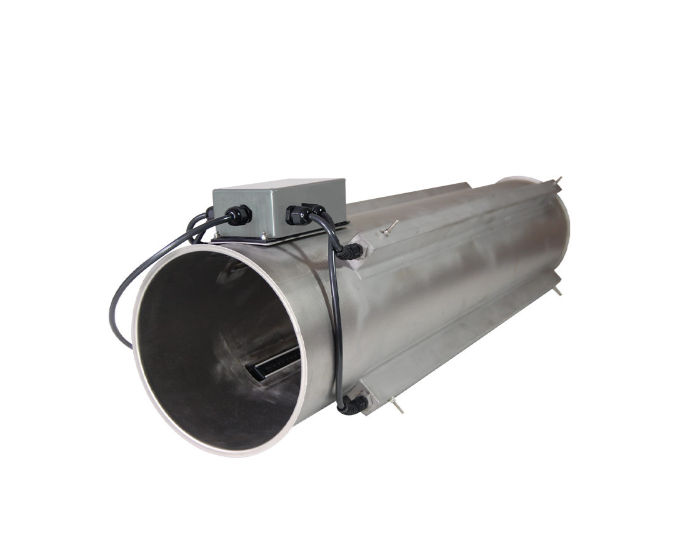

6000 Iontube In-Line Ioniser

Name: 6000 Iontube In-Line Ioniser
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 6000 Iontube In-Line Ioniser is designed for integration into pneumatic transport and conveying systems to neutralise static electricity generated during material movement. It is used to prevent blockages, material build-up, and flow disruptions in pipework, cyclones, air separators, hoppers, and waste collection systems. The system provides reliable static control in factory-critical processes where uninterrupted material flow is essential

Static Neutralization and Generations

Speacialist Equipments

EquipmentIn-Line Ioniser (Iontube System)

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no6000 Iontube In-Line Ioniser

Download PDF

Technical specification

Specification item	Details
System type	In-line pneumatic transport ioniser
Application	Pneumatic conveying, cyclones, hoppers, separators, waste extraction systems
Ionisation method	Anti-static bars mounted in tubular enclosure
Static eliminator type	Fraser 1250 static eliminator bars
Pipe material	Stainless steel (standard), alternative materials available
Pipe sizes	50 mm, 80 mm, 100 mm OD; up to 350 mm in 50 mm increments
Standard pipe length	1000 mm Jacob stainless steel pipe
Construction	Welded airtight stainless steel tube with mounted ioniser housings
Power unit	Fraser 5.5 kV HP power unit (current-limited to 5 mA)
Cable length	2 m standard HT cable (customisable)
Monitoring	Optional remote monitoring capability
Operating use	Continuous industrial pneumatic transport systems
Certification	CE
