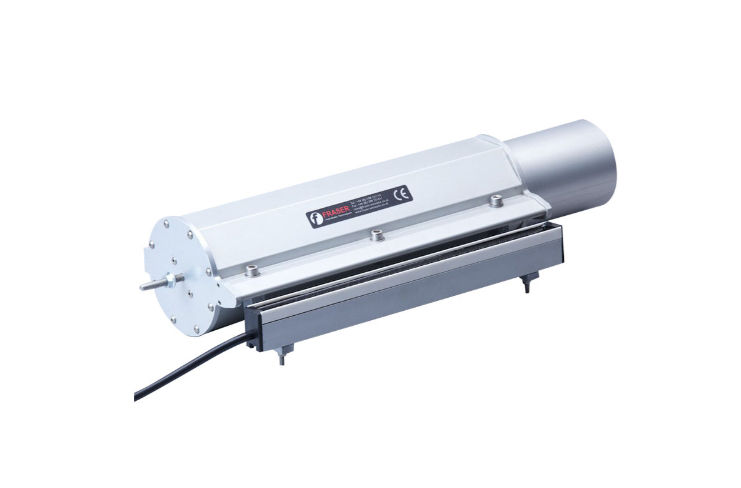

5500 Ionised Air Knife System

Name: 5500 Ionised Air Knife System
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 5500 Ionised Air Knife System is a fan-driven industrial ionisation system designed for static neutralisation, dust removal, and surface cleaning of large objects such as automotive components, glass sheets, mouldings, and flat panels. It generates a high-volume laminar airflow combined with ionisation to neutralise static charges and remove contamination efficiently. The system is designed for continuous industrial operation and offers improved energy efficiency compared to compressed air systems.

Static Neutralization and Generations

Speacialist Equipments

EquipmentIonised Air Knife System

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no5500 Ionised Air Knife System

Download PDF

Technical specification

Specification item	Details
System type	Fan-driven ionised air knife
Application	Static neutralisation, dust removal, surface cleaning
Ionisation technology	AC or 24 V DC
Ionising voltage	Up to 11 kV
Air type	High-volume laminar airflow
Air speed	Approx. 110 m/s at slot
Construction	Aluminium air knife with integrated static eliminator bar
Power requirement	Fraser 5.5–6 kV power units
Cable type	Hi-Flex 30 kV screened cable
Cable bend radius	70 mm
Standard cable length	2 m (longer lengths available)
Energy efficiency	Up to 70% lower running cost vs compressed air systems
Operating temperature	Up to 60°C
Humidity	Up to 70% RH non-condensing
Protection	IP66 (static eliminator bar)
Certification	CE (ATEX option available)
Options	ATEX EX version, 24 V DC ionisation option
