4900 Roto-Clean

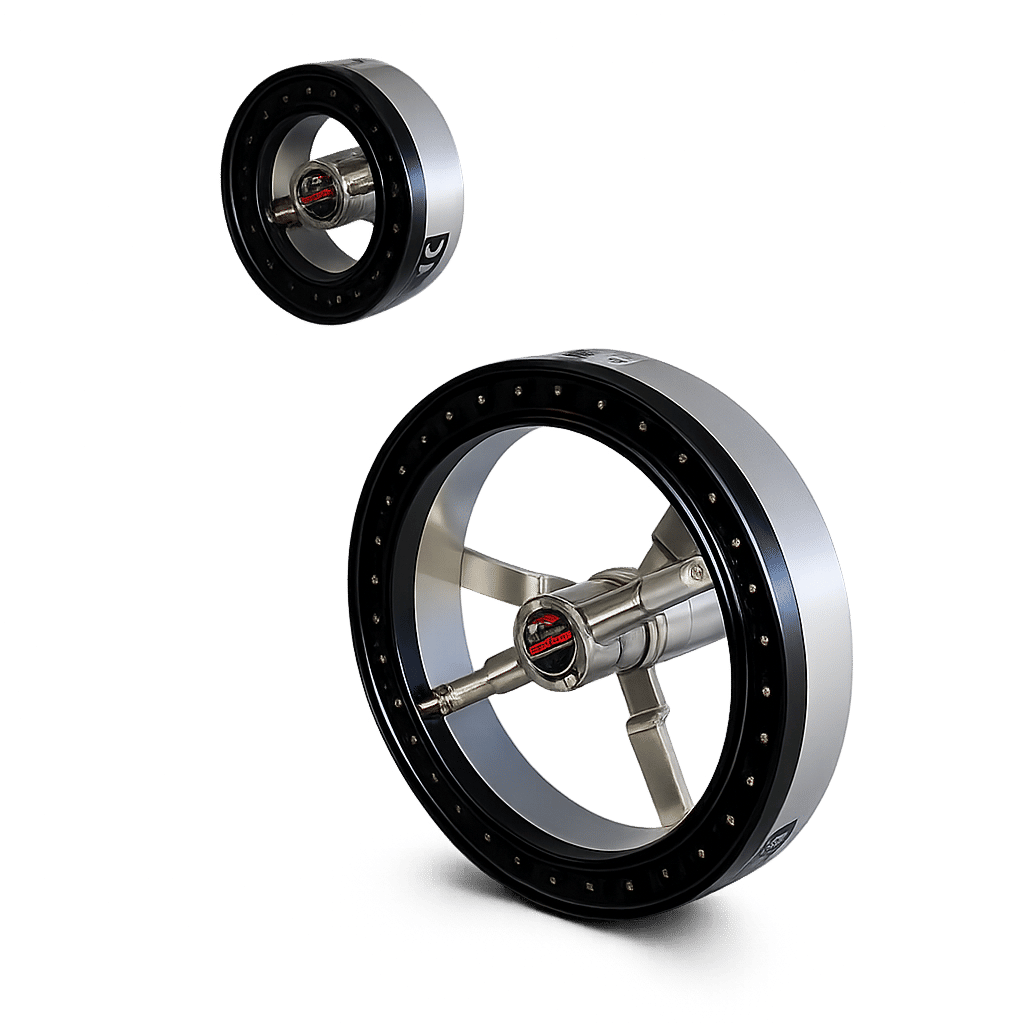

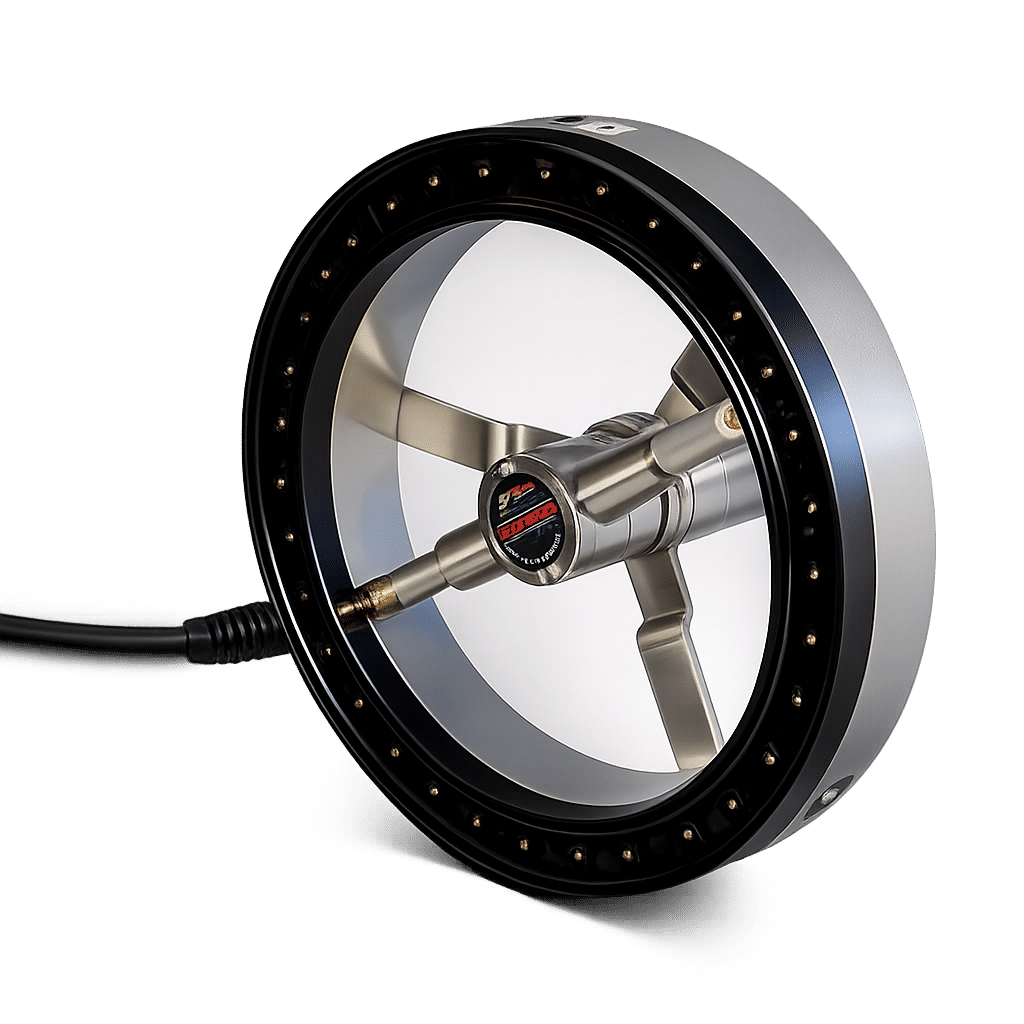

4900 Roto-Clean is a circular ionised air cleaning system that combines pulsed DC ionisation with high-speed rotating air jets to remove dust and contamination from industrial parts. It delivers 360° coverage cleaning and static neutralisation for complex geometries, ensuring consistent surface preparation in automated and manual processes.
EquipmentCircular Ionised Air Cleaning System
Manufacturer Fraser Anti-Static Techniques
Type / Model / Part no4900 Roto-Clean
Technical specification
| Parameter | Specification |
|---|---|
| Ionisation Type | Pulsed DC ionisation |
| Power Requirement | Fraser 5.5 kV / 6 kV AC power units |
| Compatible Power Unit | HP50-F (supports up to 4 devices) |
| Air Pressure Range | 1 – 3.5 bar (typical 2 bar) |
| Air Supply Requirement | Clean, dry, oil-free air |
| Air Fitting | 8 mm push-in type |
| Rotation Speed | Up to 60 rotations per second |
| Pulsed Air Effect Frequency | Up to 240 pulses per second |
| Diameter Options | 112 mm / 178 mm |
| Construction Materials | Anodised aluminium, PVC, epoxy resin, stainless steel, brass |
| Cable Type | Hi-Flex 30 kV screened cable |
| Standard Cable Length | 3 m (custom lengths available) |
| Cable Bend Radius | 70 mm |
| Safety Current (Emitter) | < 100 µA |
| Power Unit Output Limit | 5 mA current-limited |
| Operating Temperature | 0 – 50 °C |
| Humidity | 70% RH non-condensing max |
| Noise Level | < 80 dBA at 1 m (no product) |
| Installation Types | Conveyor, robot arm, cleaning stations |
| Configurations | Single unit or series-mounted systems |
| Certification | CE |
Features
- 360° ionised air coverage for complete surface cleaning
- Rotating dual air jets for pulsed cleaning action
- Effective removal of dust from complex shapes and crevices
- Optimised compressed air usage for reduced operating cost
- Modular design for flexible installation and system expansion
- Suitable for automated production lines and robotic integration
