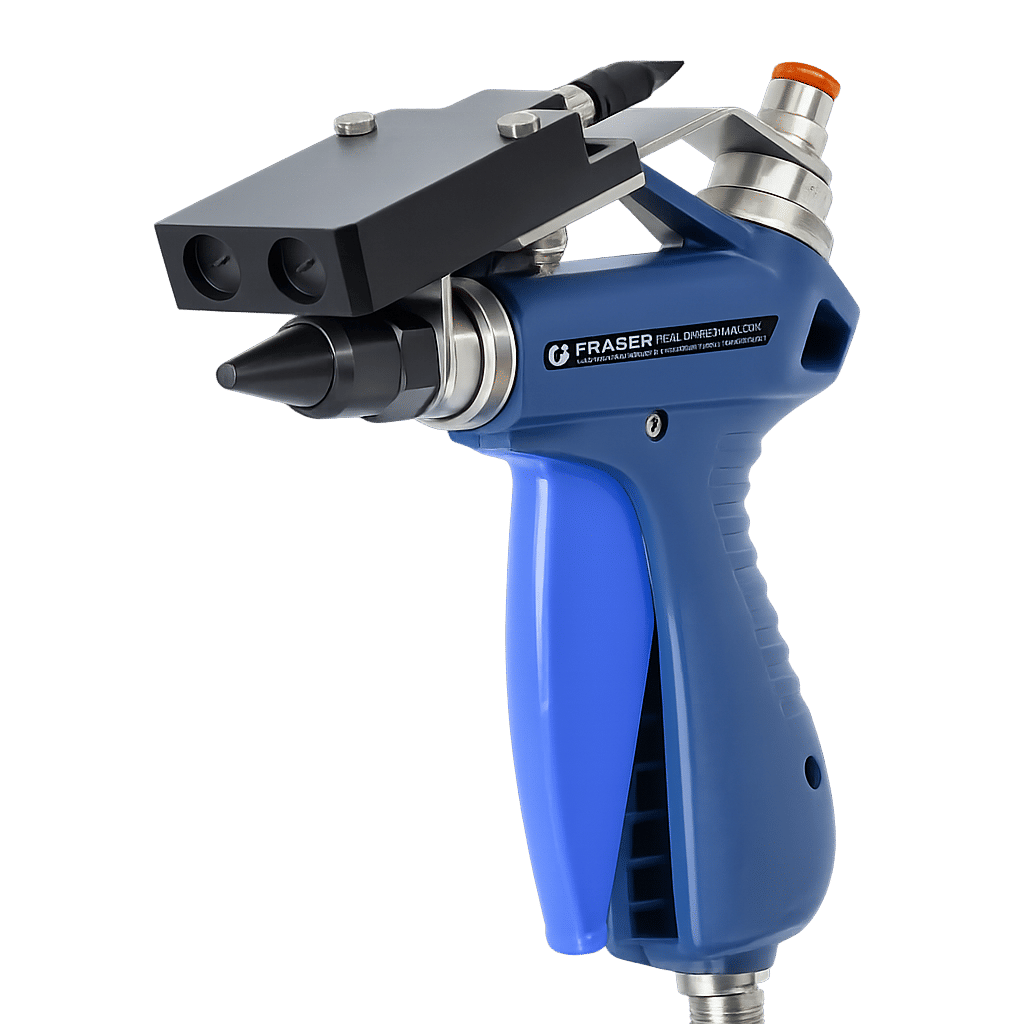

4825 24V DC Ionised Airgun

Name: 4825 24V DC Ionised Airgun
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 4825 24V DC Ionised Airgun is a high-performance static elimination and cleaning tool designed for directional removal of static charge, dust, and contaminants. It integrates a low-voltage power system with built-in high-voltage ionisation, making it suitable for demanding industrial cleaning applications where controlled airflow and consistent static neutralisation are required.

Static Neutralization and Generations

Static Elimnation

EquipmentIonised Airgun

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no4825 24V DC Ionised Airgun

Download PDF

Specification

Parameter	Value
Input Voltage	24 V DC (external supply required)
Internal Ionising Voltage	±7 kV
Air Pressure	Up to 10 bar (typical 5 bar)
Air Consumption	560 L/min at 5 bar
Air Amplification	Up to 20:1
Thrust	5.2 N at 100 mm distance (at 5 bar)
Noise Level	74 dBA at 1 m (5 bar)
Protection Rating	IP67
Operating Temperature	0–55 °C
Humidity	Up to 70% RH (non-condensing)
Air Connection	¼" BSP (standard 8 mm OD push-fit supplied)
Cable Requirement	24 V DC supply cable (sold separately)
Safety	Shockless operation with integrated ionisation system
Construction	PVC body, epoxy encapsulated ioniser, aluminium nozzle
Trigger	Ergonomic full-hand trigger design

Features:

Integrated high-voltage ionisation system (no external HV cable required)
Bi-colour LED status indicator
Pulsed DC ionisation for improved charge decay
Overload, undervoltage, and reverse polarity protection
Modular design for maintenance and servicing
Suitable for continuous industrial use in cleaning and static control applications
