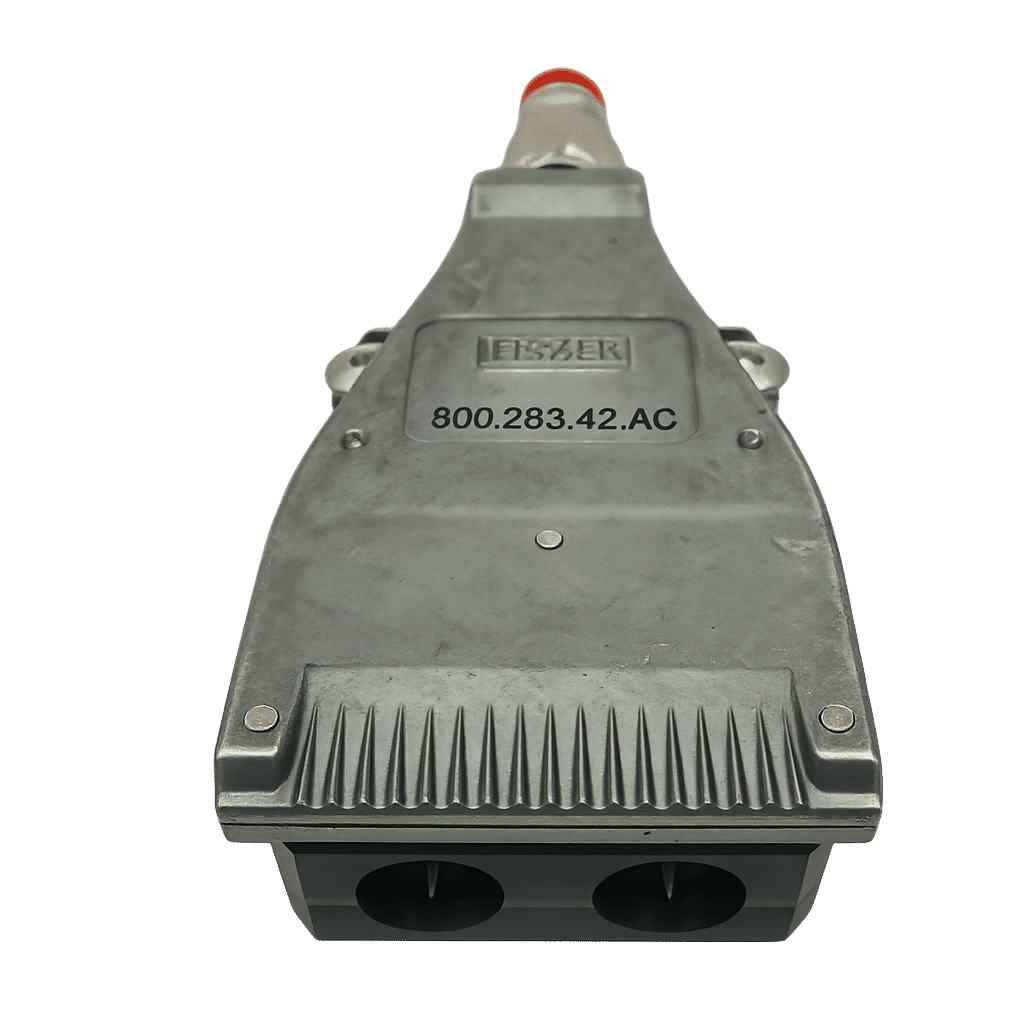

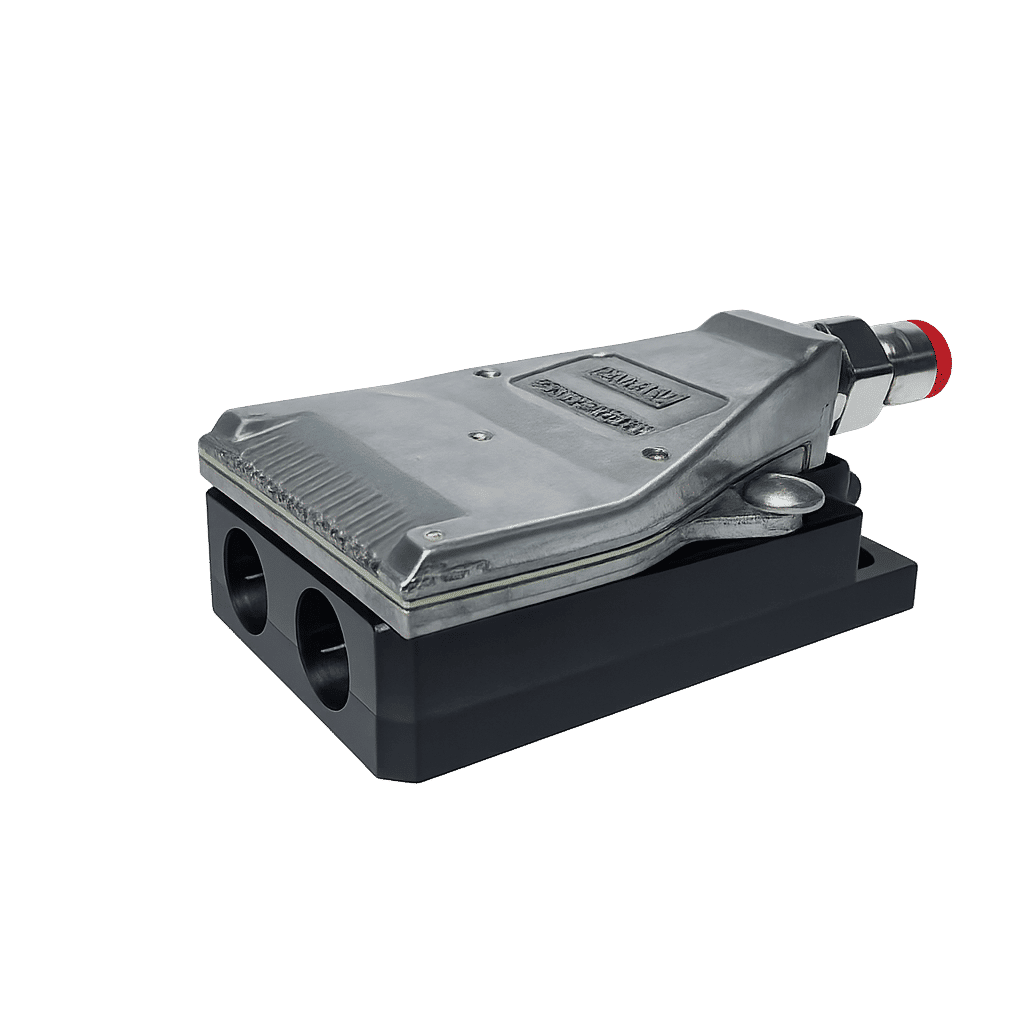

4800 DC Ionised Air Nozzle

Name: 4800 DC Ionised Air Nozzle
Brand: Fraser Anti-Static Techniques
Availability: InStock

4800 DC Ionised Air Nozzle is a high-performance 24 V DC static elimination and cleaning nozzle designed for industrial dust removal and electrostatic neutralisation. It combines integrated high-voltage ionisation with high-speed compressed air flow to deliver powerful cleaning performance, low air consumption, and reliable operation in automated and high-speed manufacturing environments.

Static Neutralization and Generations

Static Elimnation

EquipmentDC Ionised Air Nozzle

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no4800 DC

Download PDF

Technical specification

Parameter	Specification
Ionisation Type	Pulsed DC ionisation
Integrated Output Voltage	±7 kV
Electrical Input	24 V DC (21 – 28 V)
Maximum Current	0.25 A
Connector Type	M8 connector
Construction	PVC body with epoxy encapsulation and tungsten emitters
Nozzle Material	Aluminium
Dimensions	80 × 51 × 33 mm (L × W × D) excluding connectors
Operational Length	47 mm
Weight	Ioniser: 100 g, Nozzle: 60 g
Air Pressure	Maximum 10 Bar
Air Fitting	6 mm OD push-fit
Air Consumption	300 l/min at 2 Bar
Blowing Force	2.4 N at 2 Bar
Recommended Cleaning Distance	50 – 100 mm
Remote Status Signals	OK, Clean Me, Fault, Standby
PLC Compatibility	IEC 61131-2 Type 3 compatible
Status Indication	Bi-colour LED
Protection Features	Short-circuit and miswiring protected outputs
Environmental Rating	IP67
Operating Temperature	0 – 55 °C
Humidity	70% RH non-condensing max.
Certification	CE, UL
