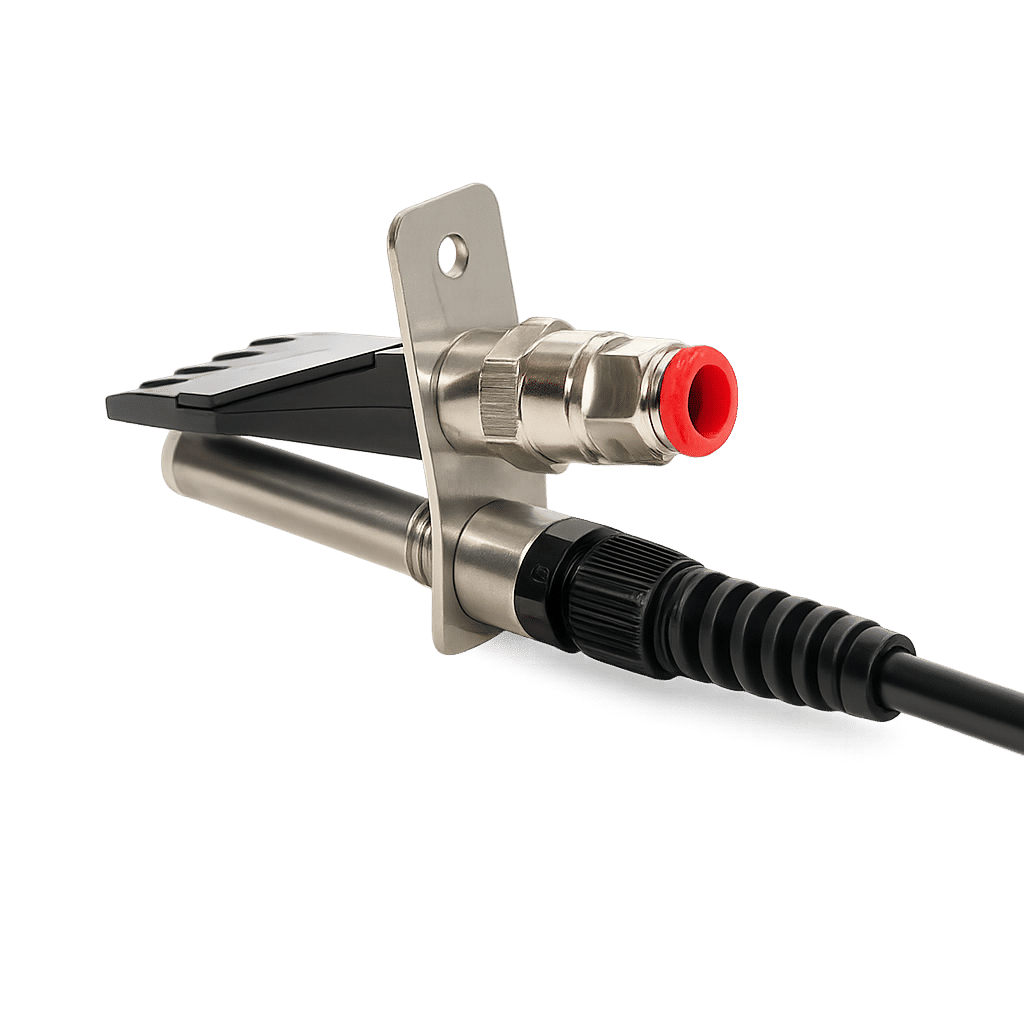

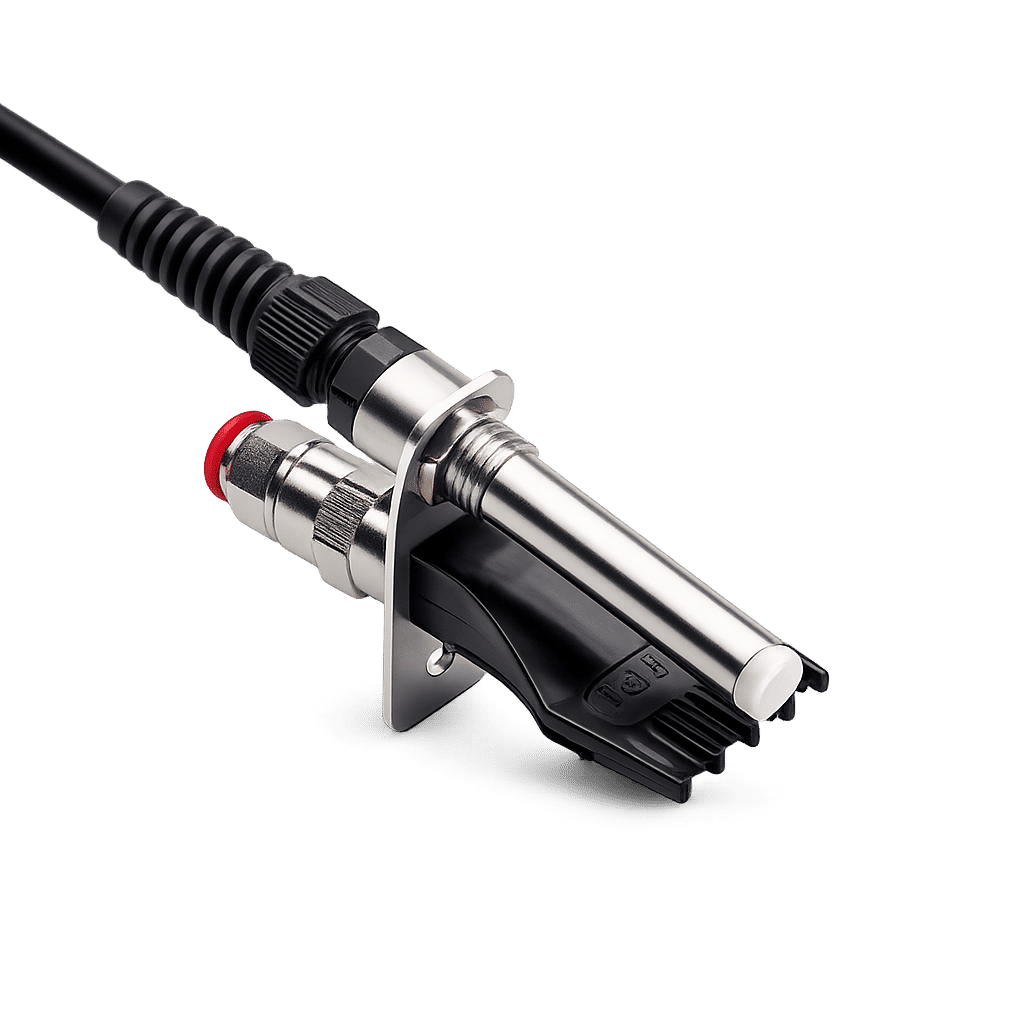

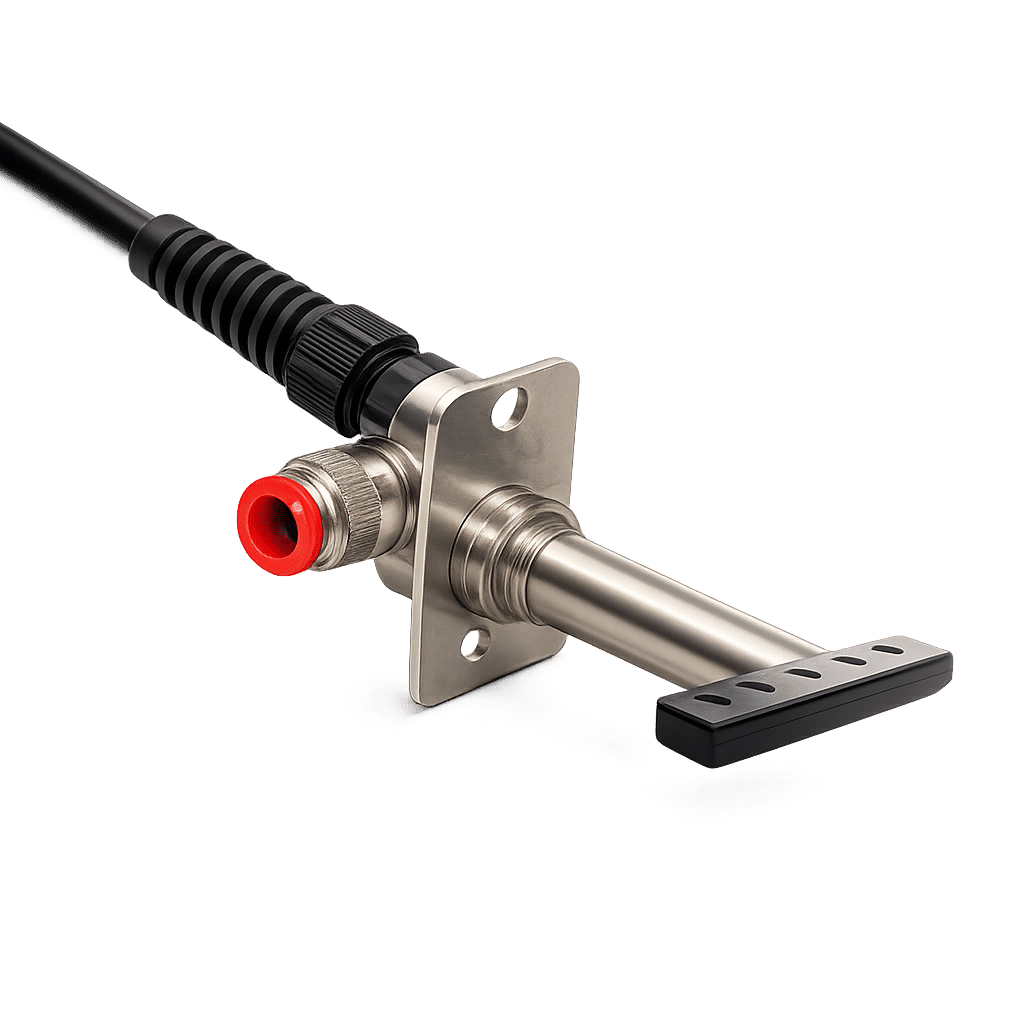

4510 Ionised Air Nozzle

Name: 4510 Ionised Air Nozzle
Brand: Fraser Anti-Static Techniques
Availability: InStock

Ionised Air Nozzle 4510 is a compressed-air-assisted static elimination and cleaning device that produces a flat, high-velocity ionised air jet for effective removal of dust and electrostatic charge. It operates using AC ionisation and is designed for applications requiring efficient surface cleaning, particle removal, and static neutralisation in industrial production environments.

Static Neutralization and Generations

Static Elimnation

Download PDF

Equipment: Ionised Air Nozzle Manufacturer: Fraser Anti-Static Techniques Type / Model / Part no: 4510

Technical specification:

4510 – Ionised Air Nozzle (AC Static Elimination & Cleaning System)

Parameter	Specification
Ionisation Type	AC ionisation system
Output Voltage	Up to 6 kV (via compatible Fraser power unit)
Air Flow Type	Flat high-speed ionised air jet
Air Pressure	Max 7 bar
Max 7 bar	180 l/min (2 bar) to 520 l/min (7 bar)
Air Fitting	Push-fit connector for 8 mm OD tubing
Safety Resistance	100 MΩ series resistance (shockless operation)
Construction Material	Stainless steel and PTFE
Cable Type	Hi-Flex 30 kV screened cable
Cable Bend Radius	70 mm minimum
Standard Cable Length	2 m (custom lengths available)
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Noise Level	76 dBA @ 7 bar
Power Requirement	Fraser 5.5 kV or 6 kV power unit
Certifications	CE
Installation Purpose	Static neutralisation and dust removal for small parts and assemblies
