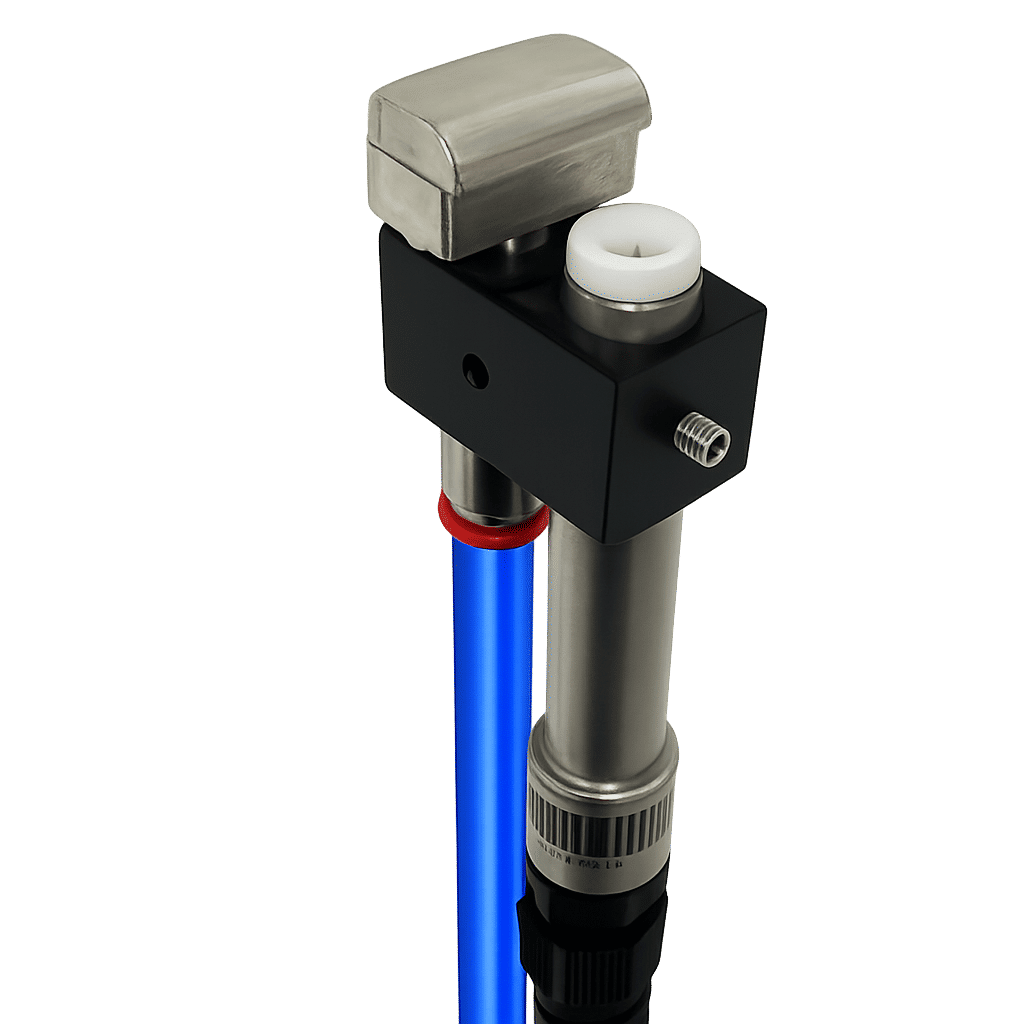

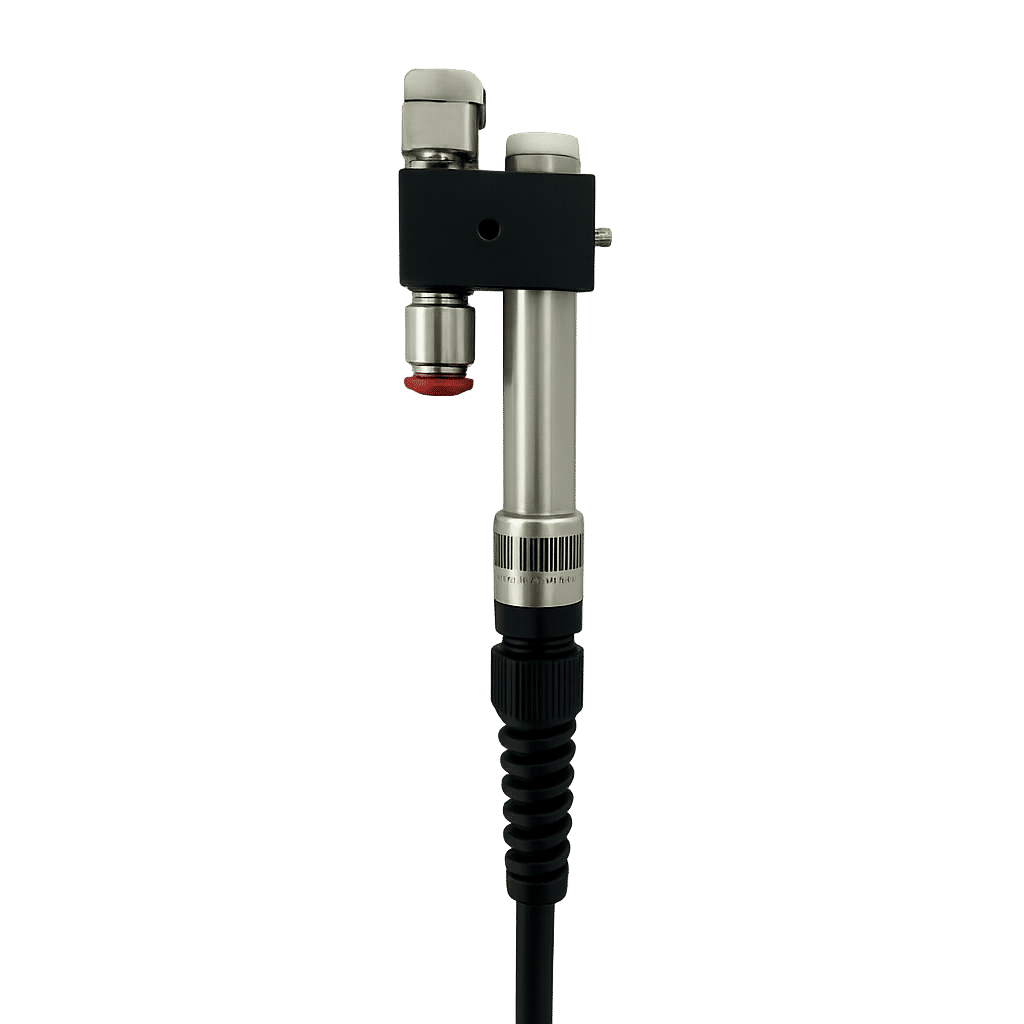

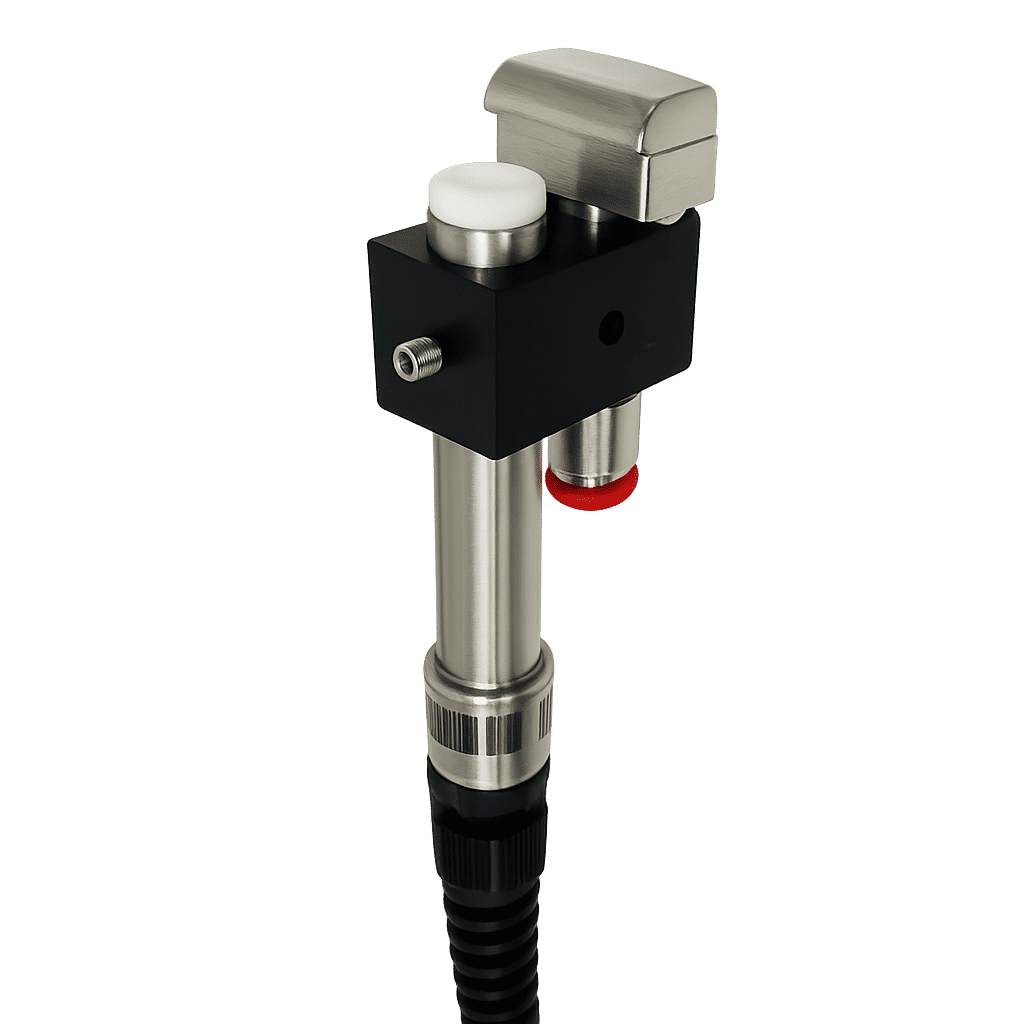

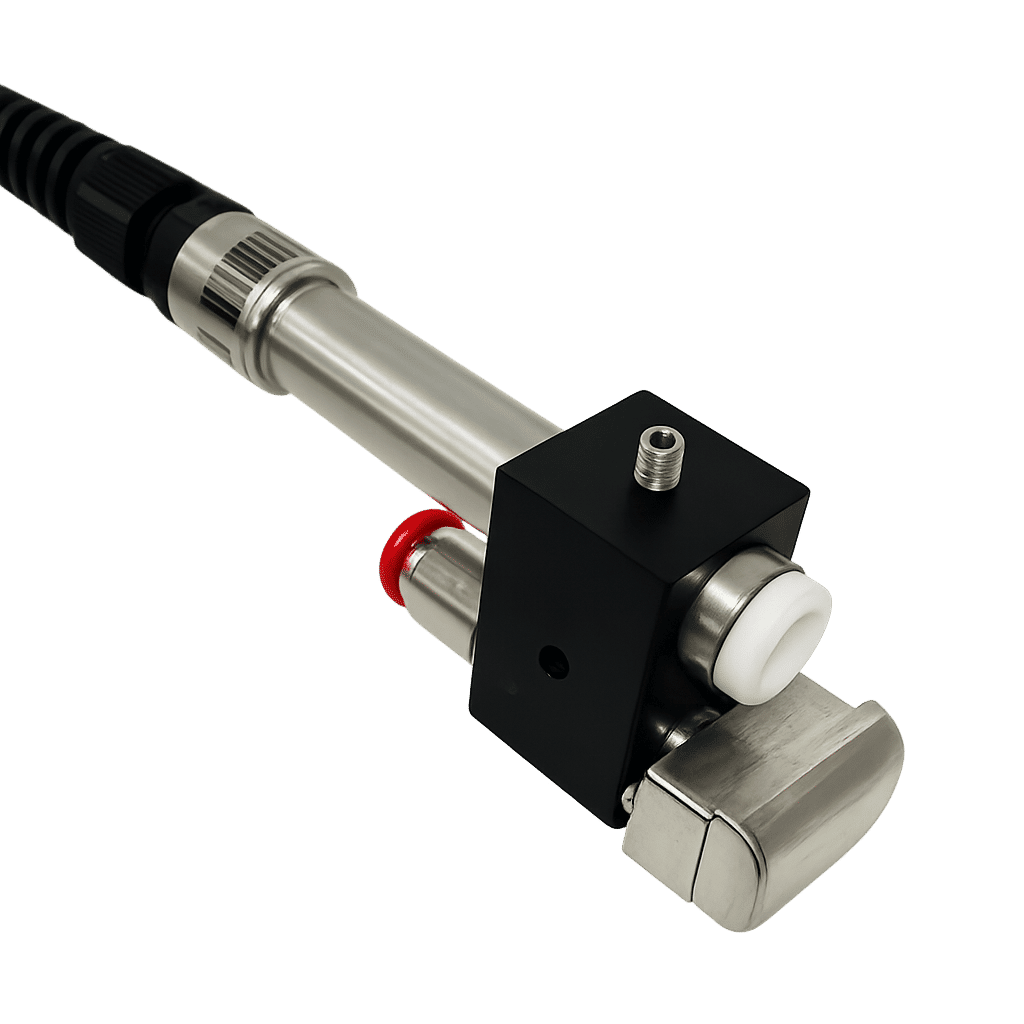

4400 Ionised Air Nozzle
4400 Ionised Air Nozzle is a compact ionised air jet system that combines a 1260 Single Point Ioniser with a precision air nozzle mounted in a metal housing. It is designed for efficient static neutralisation and dust removal in restricted spaces, producing a flat, high-speed ionised airflow for cleaning and product separation applications.
EquipmentIonised Air Nozzle
ManufacturerFraser Anti-Static Techniques
Type / Model / Part no4400
Technical specification
| Parameter | Specification |
|---|---|
| Ionisation Type | AC ionisation (Single Point Ioniser 1260) |
| Ionising Voltage | Up to 6 kV (via HP power unit) |
| Air Amplification Ratio | Up to 20:1 |
| Air Pressure | Maximum 7 bar |
| Air Fitting | 1/8" female thread with 6 mm OD push-fit connector |
| Cable Type | Hi-Flex 30 kV screened cable |
| Standard Cable Length | 2 m (custom lengths available) |
| Construction Materials | Stainless steel, PTFE, black anodised aluminium |
| Ioniser Construction | Stainless steel tube with PTFE insert |
| Air Exit Design | 90° outlet for restricted space installation |
| Safety Design | Shockproof ionisation, OSHA compliant |
| Operating Temperature | Up to 60 °C |
| Humidity | 70% RH non-condensing max |
| Power Unit Compatibility | Fraser 5.5 kV and 6 kV HP power units |
| Installation Type | Inline or mounted ionised air jet |
| Certification | CE |
Features
- Compact in-line design for installation in confined spaces
- Flat, high-speed ionised airflow for efficient cleaning
- Integrated ioniser and nozzle for improved efficiency
- Reduced compressed air consumption compared to open pipe systems
- Suitable for automated feeders, mouldings, and electronic components
- Optimised for dust removal and static neutralisation in precision applications
