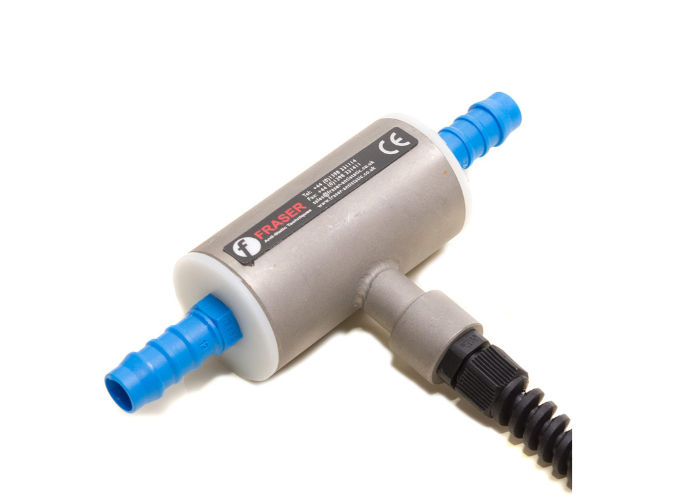

4300 In-Line Air Ioniser

Name: 4300 In-Line Air Ioniser
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 4300 In-Line Air Ioniser is a compressed air ionisation system designed to neutralise static electricity within an existing air supply line. It is particularly suitable for difficult industrial applications such as sheet feeders, separators, and colour mixing systems where ionised compressed air is required. The system uses a 1265 Single Point Ioniser to deliver 5.5–6 kV ionising power into flexible pipework, helping remove electrostatic contamination and improve material separation processes.

Static Neutralization and Generations

Speacialist Equipments

Download PDF

Key Features

In-line ionisation for existing compressed air systems
Suitable for difficult or confined applications
Compatible with Fraser 5.5 kV and 6 kV power units
Shockless operation for operator safety
Stainless steel construction for durability
Designed for low-pressure applications
Easy installation with standard 10 mm ID airline connection

Applications

Sheet feeding systems
Air separation systems
Colour mixers
Electrostatic contaminant removal
General industrial compressed air ionisation

Specifications

Parameter	Specification
Construction	Stainless steel body with PTFE insulation and nylon cable gland
Ionising Power	5.5 – 6 kV
Cable Type	Hi-Flex 30 kV screened cable
Standard Cable Length	2 m
Minimum Bend Radius	70 mm
Safety	Shockless operation, max current 5 mA
Air Connection	¼" BSP with connector for 10 mm ID flexible pipe
Air Flow Direction	Either end
Operating Temperature	Max. 60 °C
Humidity	70% RH non-condensing max
Power Unit Compatibility	Fraser 5.5 kV and 6 kV Power Units
Certification	CE

Installation Notes

Must be installed on the discharge side of the control valve
Not suitable for enclosed high-pressure systems
Air supply must be clean and dry
Plastic pipework and fittings are recommended to maximise ion life and system performance
