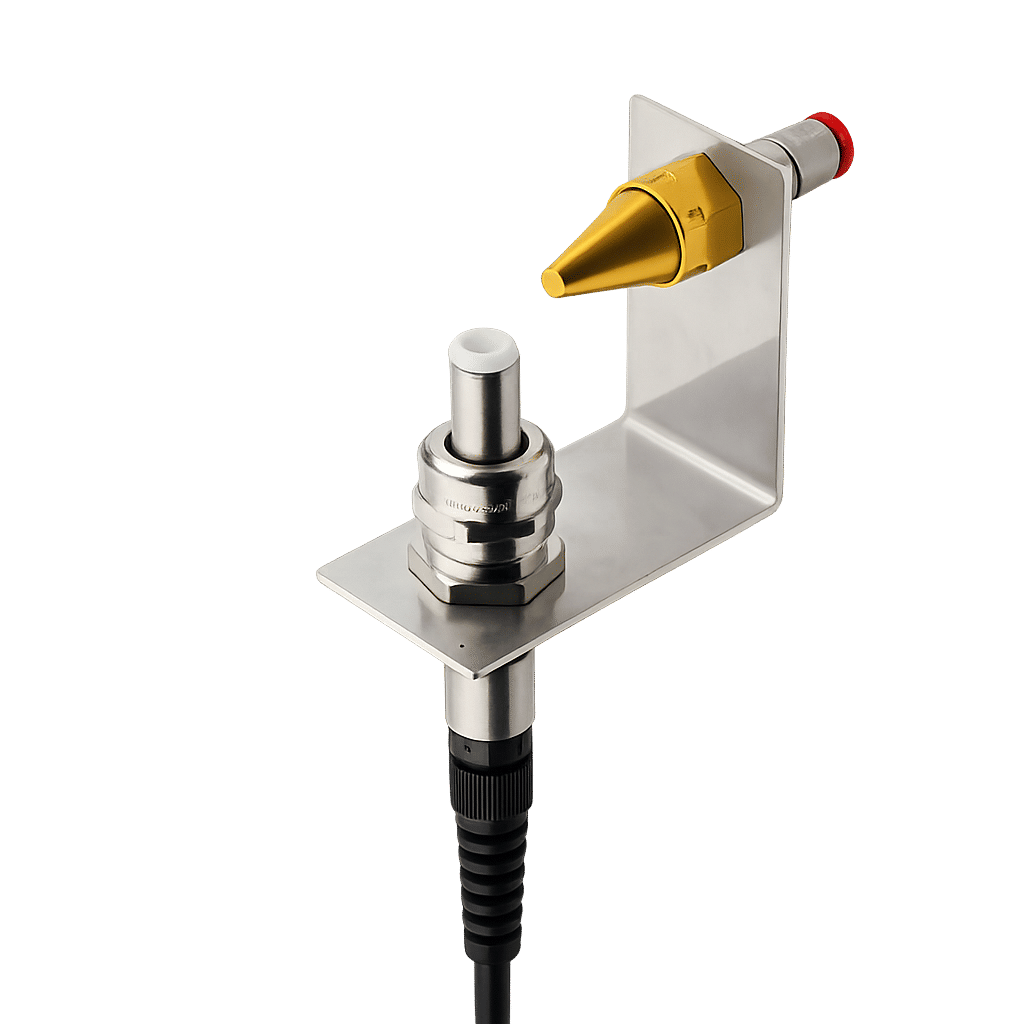

4200SP Single Point Ionised Air Nozzle

Name: 4200SP Single Point Ionised Air Nozzle
Brand: Fraser Anti-Static Techniques
Availability: InStock

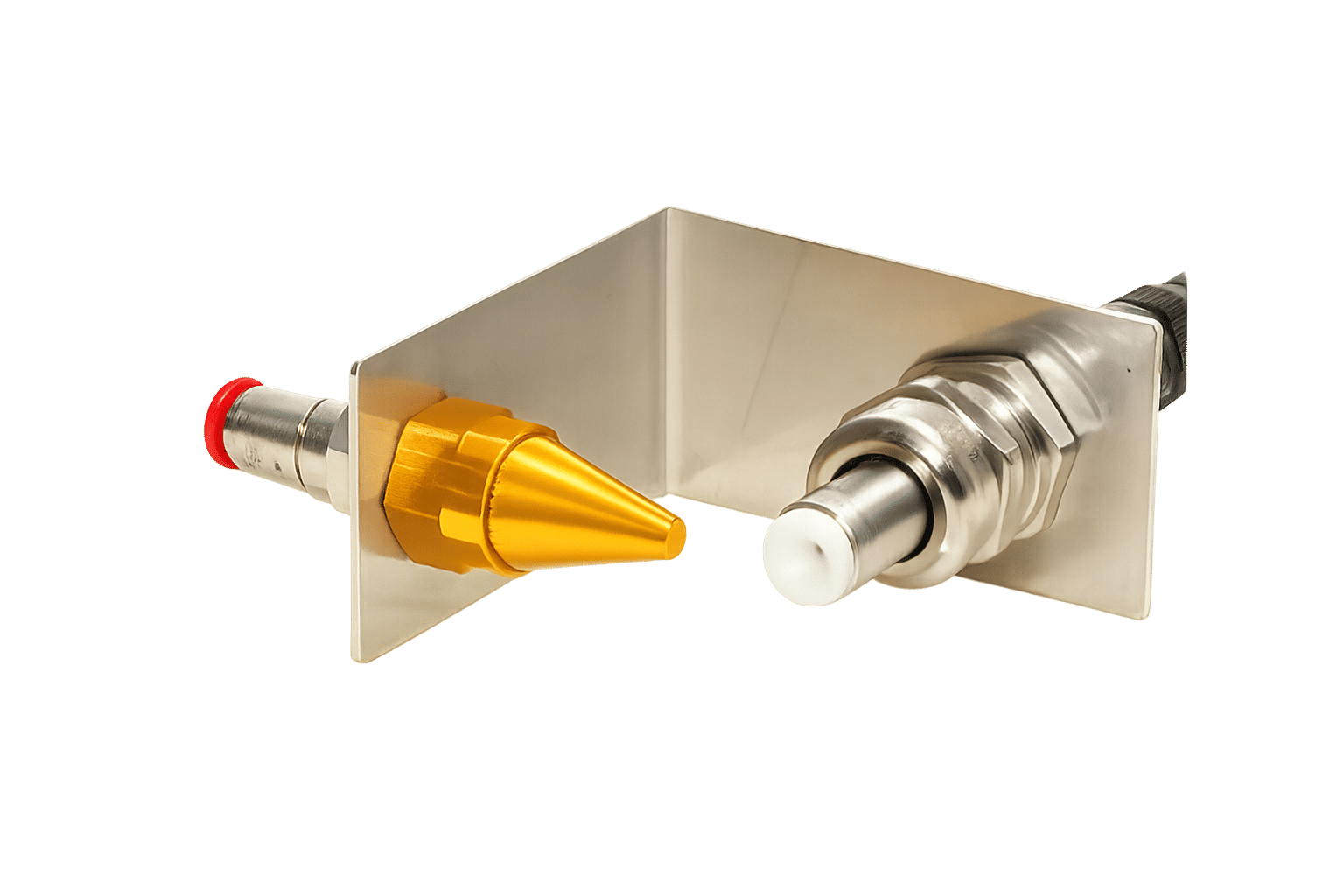

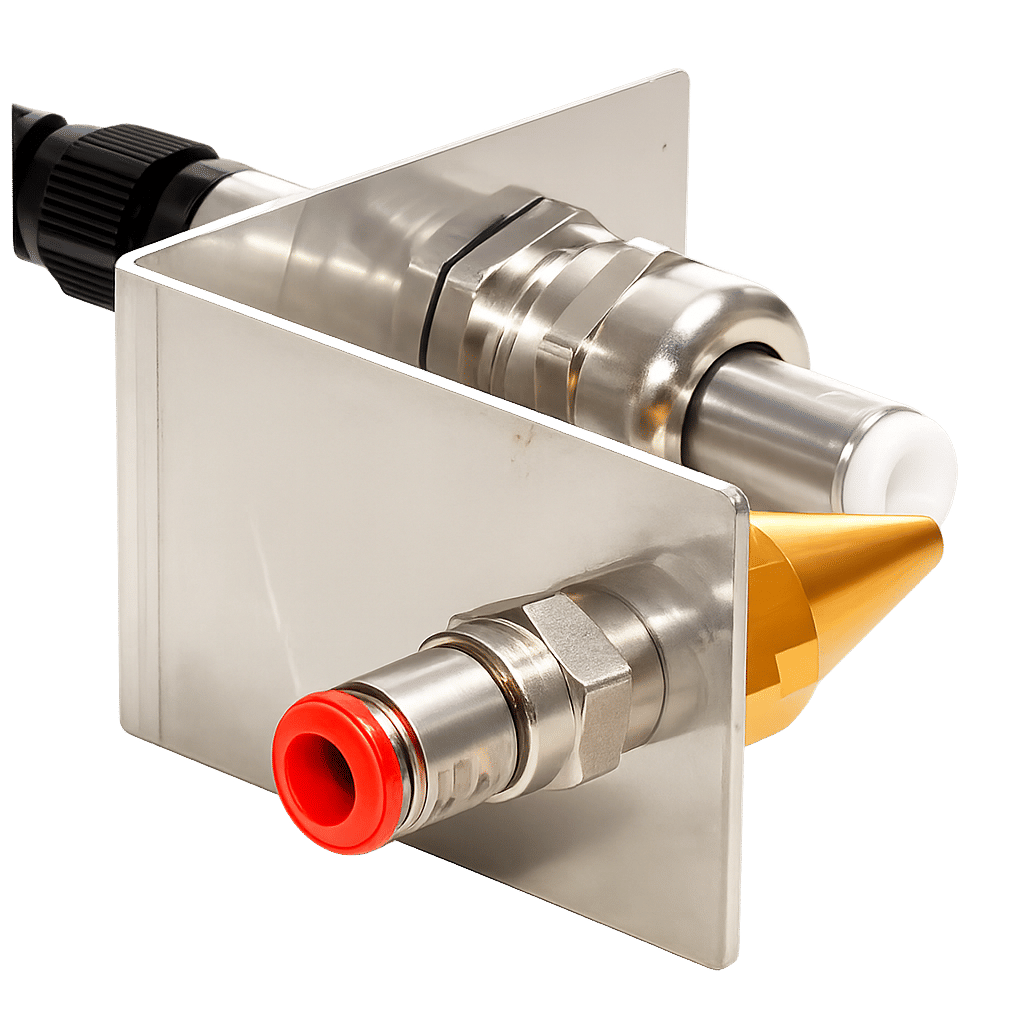

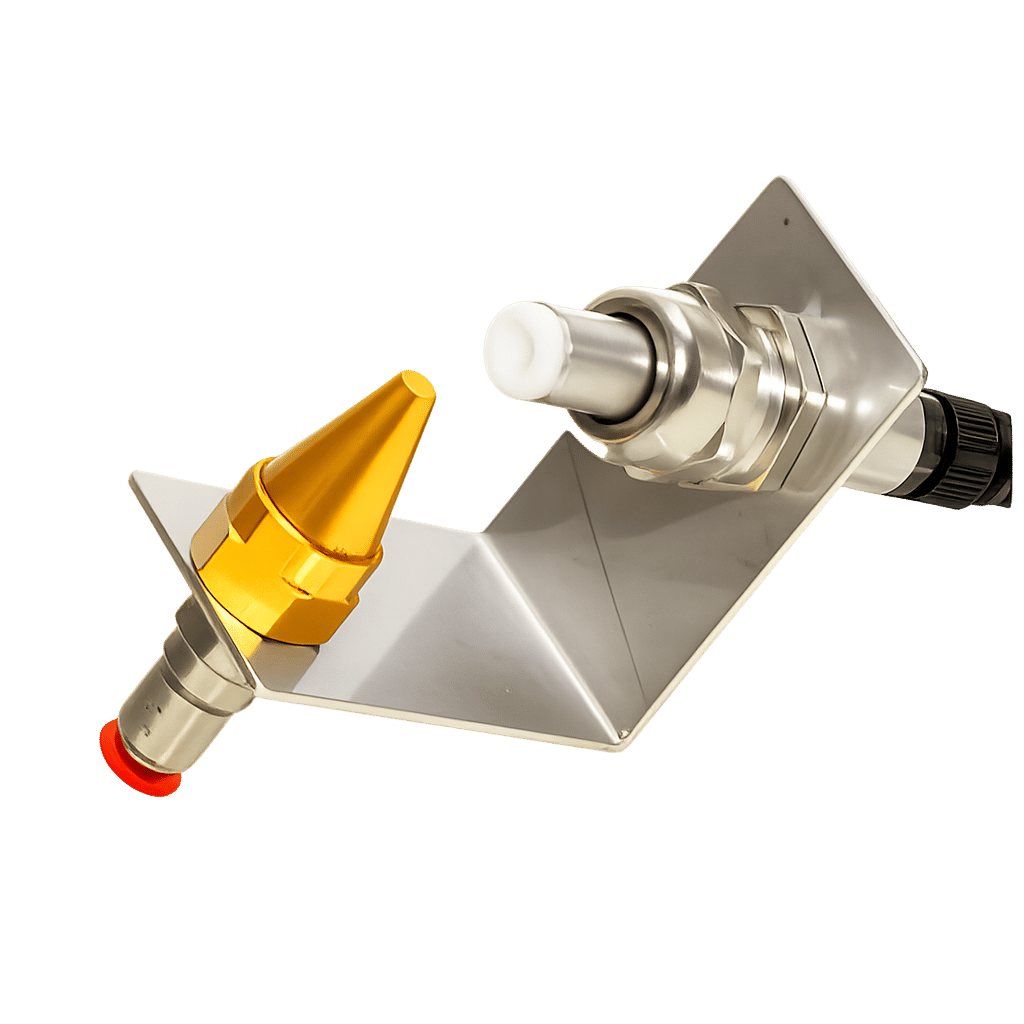

4200SP Single Point Ionised Air Nozzle is a compact ionised air device designed for efficient static neutralisation and dust removal in industrial applications. It combines a single point ioniser with an air amplification nozzle to deliver high-speed ionised airflow for cleaning mouldings, assemblies, and precision components.

Static Neutralization and Generations

Static Elimnation

EquipmentSingle Point Ionised Air Nozzle

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no4200SP

Download PDF

Technical specification

Parameter	Value
Ionisation Type	AC single point ionisation
Ionising Voltage	Up to 6 kV (via HP power unit)
Air Pressure Range	1 – 7 bar
Air Amplification Ratio	Up to 20:1
Air Connection	6 mm OD push-fit connector
Cable Type	Hi-Flex 30 kV screened cable
Standard Cable Length	2 m (custom lengths available)
Construction Materials	Stainless steel, PTFE, nylon, anodised aluminium
Mounting	Stainless steel bracket
Dimensions	154.1 × 40 mm (H × W)
Noise Level	< 68 dBA at 4 bar
Safety Design	100 MΩ resistance, shockproof operation
Power Unit Compatibility	Fraser 5.5 kV and 6 kV HP power units
Air Requirement	Clean, dry compressed air
Operating Temperature	Up to 60 °C
Humidity	70% RH non-condensing max
Installation Type	Fixed or integrated machine mounting
Certification	CE
