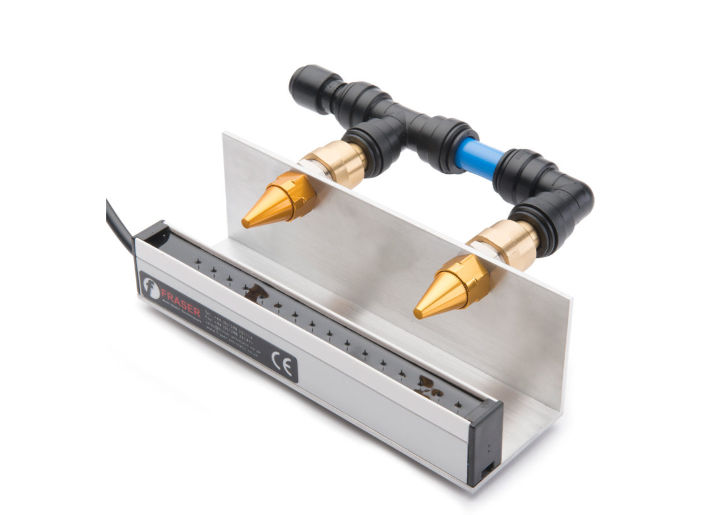

4200 Ionised Air Nozzle System

Name: 4200 Ionised Air Nozzle System
Brand: Fraser Anti-Static Techniques
Availability: InStock

4200 Ionised Air Nozzle System is a modular ionised air cleaning solution designed for static neutralisation and dust removal on complex industrial parts. It combines a 1250-S Static Eliminator bar with air amplification nozzles to deliver controlled ionised airflow for efficient cleaning of three-dimensional components and production surfaces.

Static Neutralization and Generations

Static Elimnation

EquipmentIonised Air Nozzle System

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no 4200

Download PDF

Technical specification

Parameter	Specification
Ionisation Type	AC ionisation (1250-S Static Eliminator bar)
Ionising Voltage	Up to 6 kV (via HP power unit)
Air Pressure Range	1 – 7 bar
Air Amplification Ratio	Up to 20:1
Air Supply	Clean, dry compressed air
Air Connection	Single air connection for full assembly
System Length Range	100 mm to 4000 mm
Construction Materials	Aluminium bracket (63.5 × 63.5 × 4 mm), anodised aluminium nozzles
Static Eliminator Type	1250-S bar
Cable Type	Hi-Flex 30 kV screened cable
Standard Cable Length	2 m (custom lengths available)
Cable Bend Radius	70 mm
Safety Design	Shockproof, OSHA compliant, no dead-ended nozzle
Protection Rating	IP64
Power Unit Compatibility	Fraser 5.5 kV and 6 kV power units
Air Requirement	Clean, dry compressed air
Operating Temperature	Up to 60 °C
Humidity	70% RH non-condensing max
Installation Type	Modular system for conveyors and complex shapes
Certification	CE
