3850 Ionstorm Static Eliminator

Name: 3850 Ionstorm Static Eliminator
Brand: Fraser Anti-Static Techniques
Availability: InStock

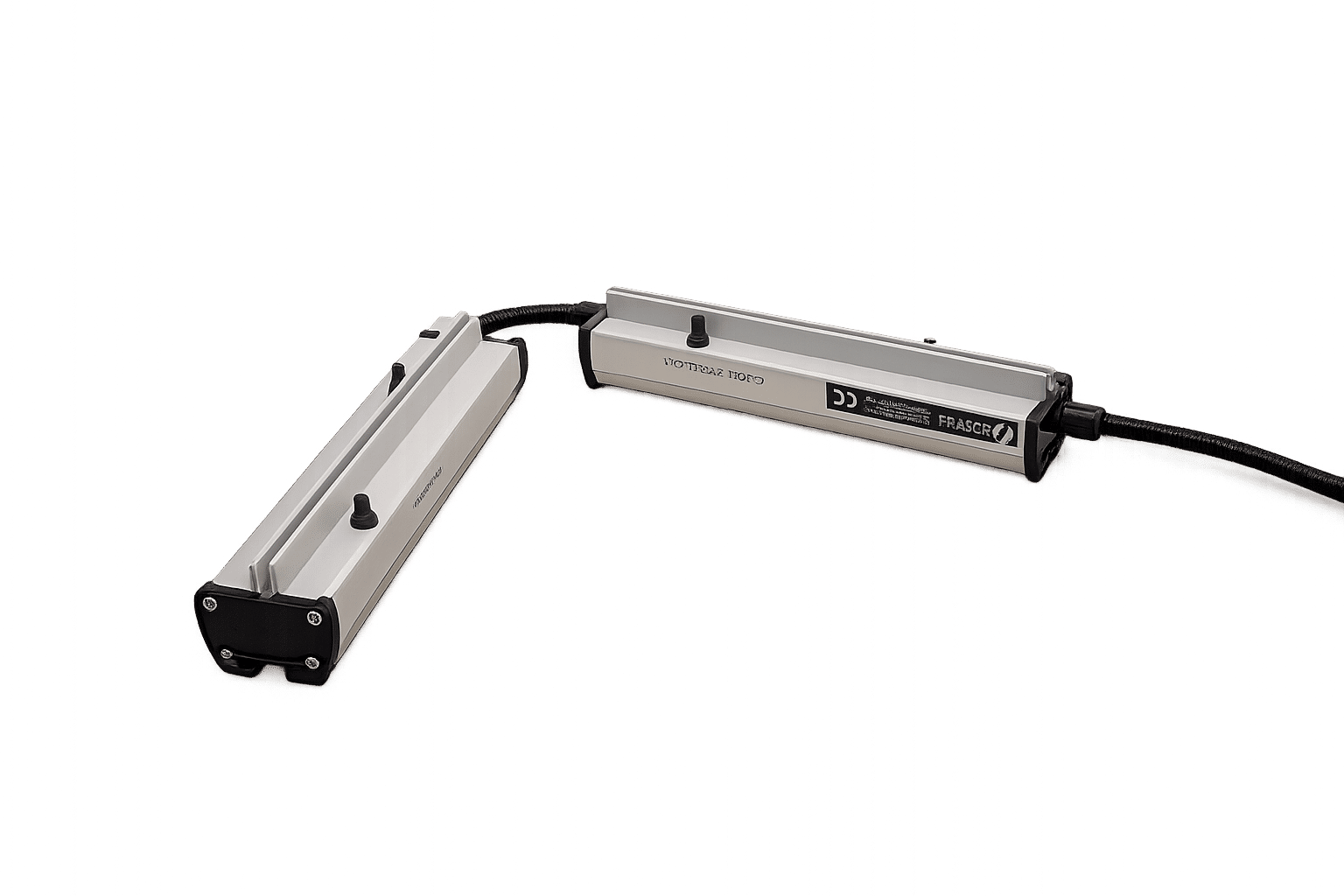

Static Eliminator Bar 3024L is a compact medium-range ionisation system designed for efficient static neutralisation in industrial machinery. It operates using integrated 24 V DC electronics and delivers up to 11 kV ionising output for stable charge control at distances up to 500 mm. The system is engineered for continuous operation in high-speed production environments requiring reliable static elimination.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no3024L

Download PDF

Technical specification

Parameter	Specification
Operating Voltage	24 V DC (21–28 V)
Maximum Current	0.5 A
Output Voltage	Up to 11 kV integrated
Ionisation Type	Pulsed DC static elimination system
Effective Range	100 – 500 mm
Electrical Connection	M8 4-pin connector (cable ordered separately)
Housing Material	FR-ABS industrial-grade extrusion with epoxy encapsulation
Emitter Type	Resistively coupled tungsten emitters
Emitter Pitch	50 mm
Protection Rating	IP66
Operating Temperature	0 – 55 °C
Humidity	Up to 70% RH non-condensing
Dimensions	22 mm x 41.5 mm (W x H)
Length	Options 300 mm to 5000 mm (100 mm increments)
Weight	1.1 kg/m
Control Features	Remote ON/OFF switching
Status Indication	Bi-colour LED (Bar OK / Fault)
Remote Outputs	Bar OK and Fault signals (PLC compatible)
Coverage	100% active length coverage
Installation Class	Cleanroom compatible (ISO Class 4)
Certifications	CE, CB, UL
Power Supply Option	E3024-PSU (100–250 V AC to 24 V DC)
