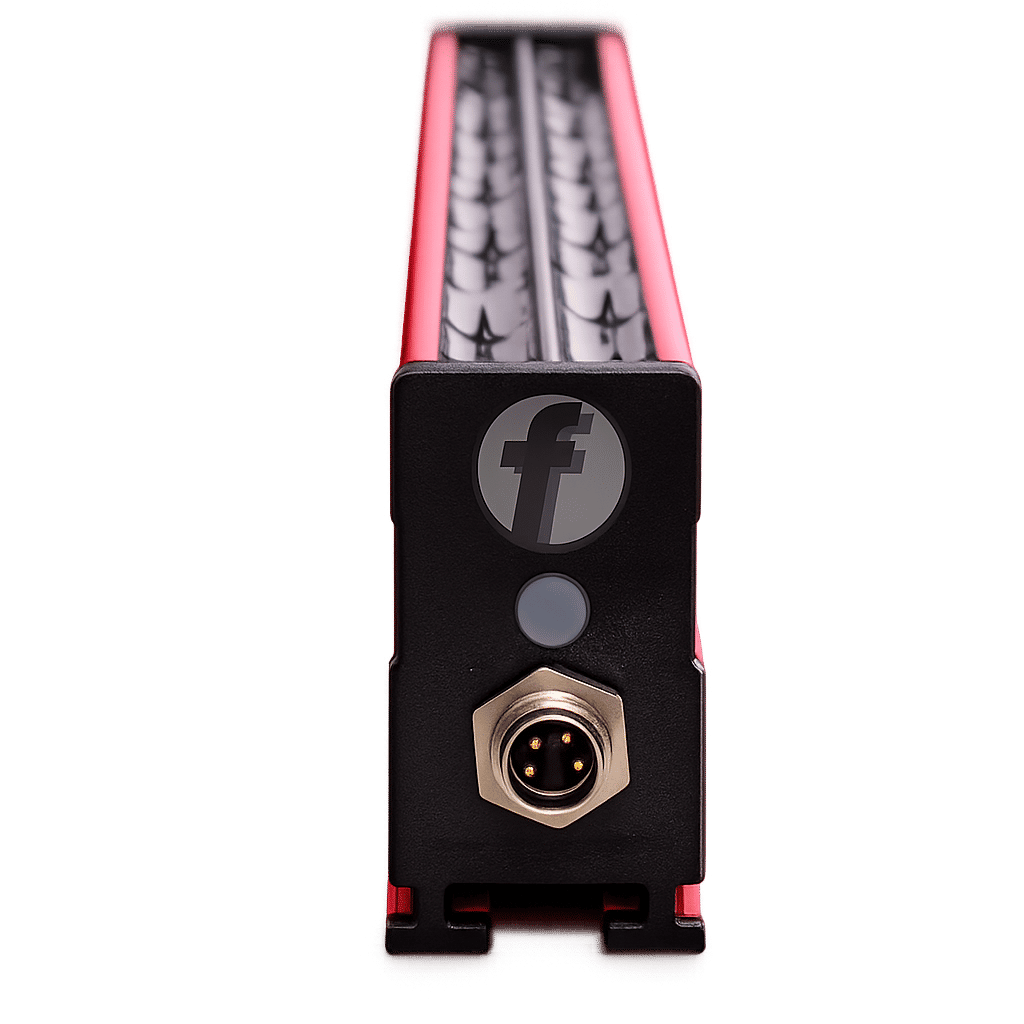

3024F Static Eliminator
The 3024F is a compact short-range static eliminator with integrated electronics and 24 V DC operation. It is designed for high-speed industrial applications requiring fast and stable static neutralisation with remote monitoring capability.
Specifications
| Parameter | Details |
|---|---|
| Operating distance | 25 – 150 mm |
| Output voltage | Up to 11 kV (integrated) |
| Emitter pitch | 25 mm |
| Construction | FR-ABS extrusion, epoxy resin encapsulation |
| Emitters | Tungsten, resistively coupled |
| Weight | 1.1 kg/m |
| Dimensions | 22 mm × 41.5 mm |
| Electrical input | 24 V DC (21–28 V), max 0.5 A |
| Connector | M8 4-pin (cable ordered separately) |
| Environmental rating | 0–55 °C, 70 % RH non-condensing |
| Protection | IP66 |
| Certification | CE, CB, UL; ISO Class 4 cleanroom suitable |
Features
- Short-range high-speed static neutralisation (tested up to 1300 m/min)
- No dead zone: full active ionisation along entire bar length
- Integrated 24 V DC power system (no external HV supply required)
- LED status indication on end cap
- Remote monitoring outputs for PLC integration
- Remote on/off control support
- Designed for OEM machinery integration
Related products
View Details
660 Static Discharger
Al Ghwasa
View Details

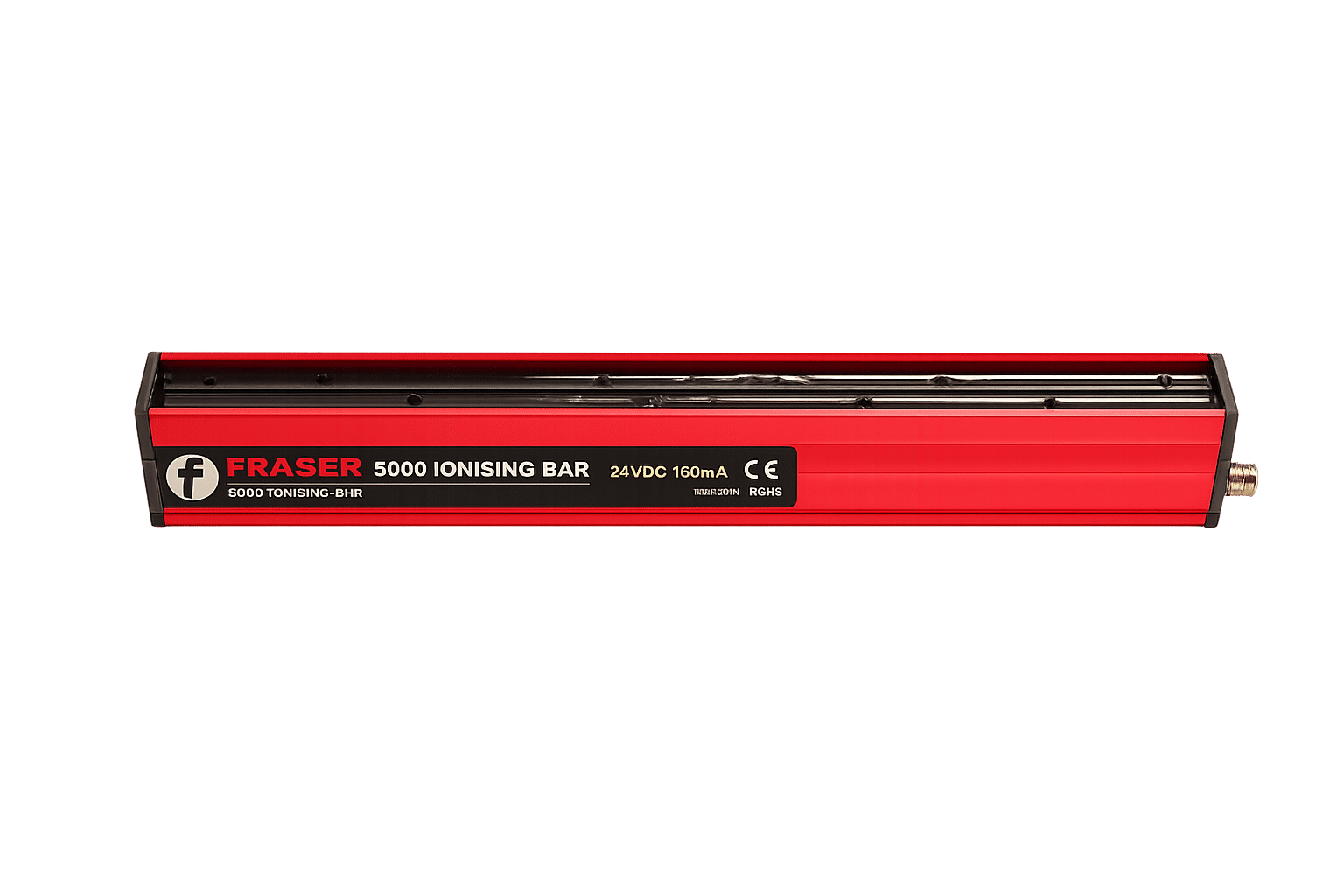

5000 / 5100 Ionised Air Knives
