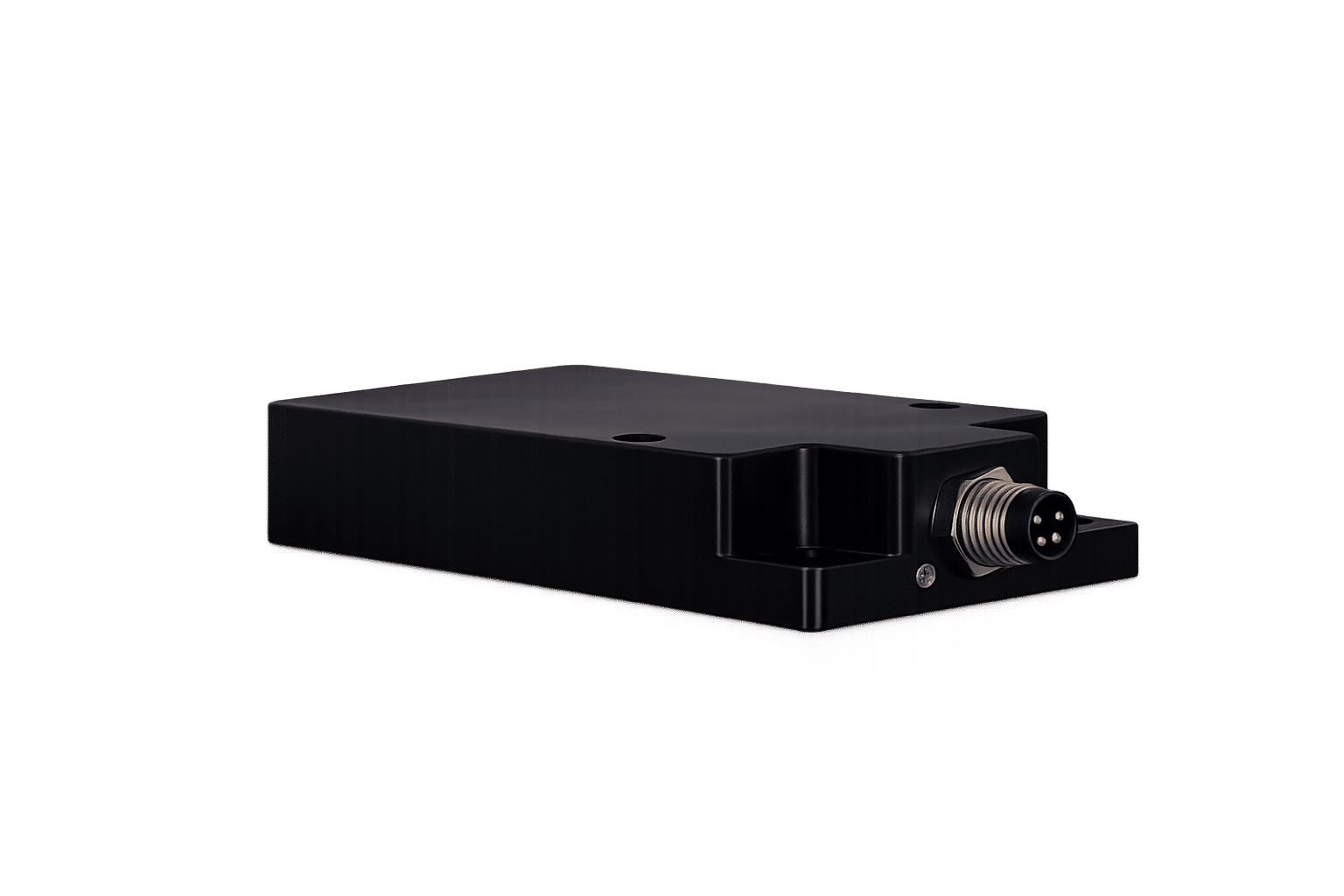

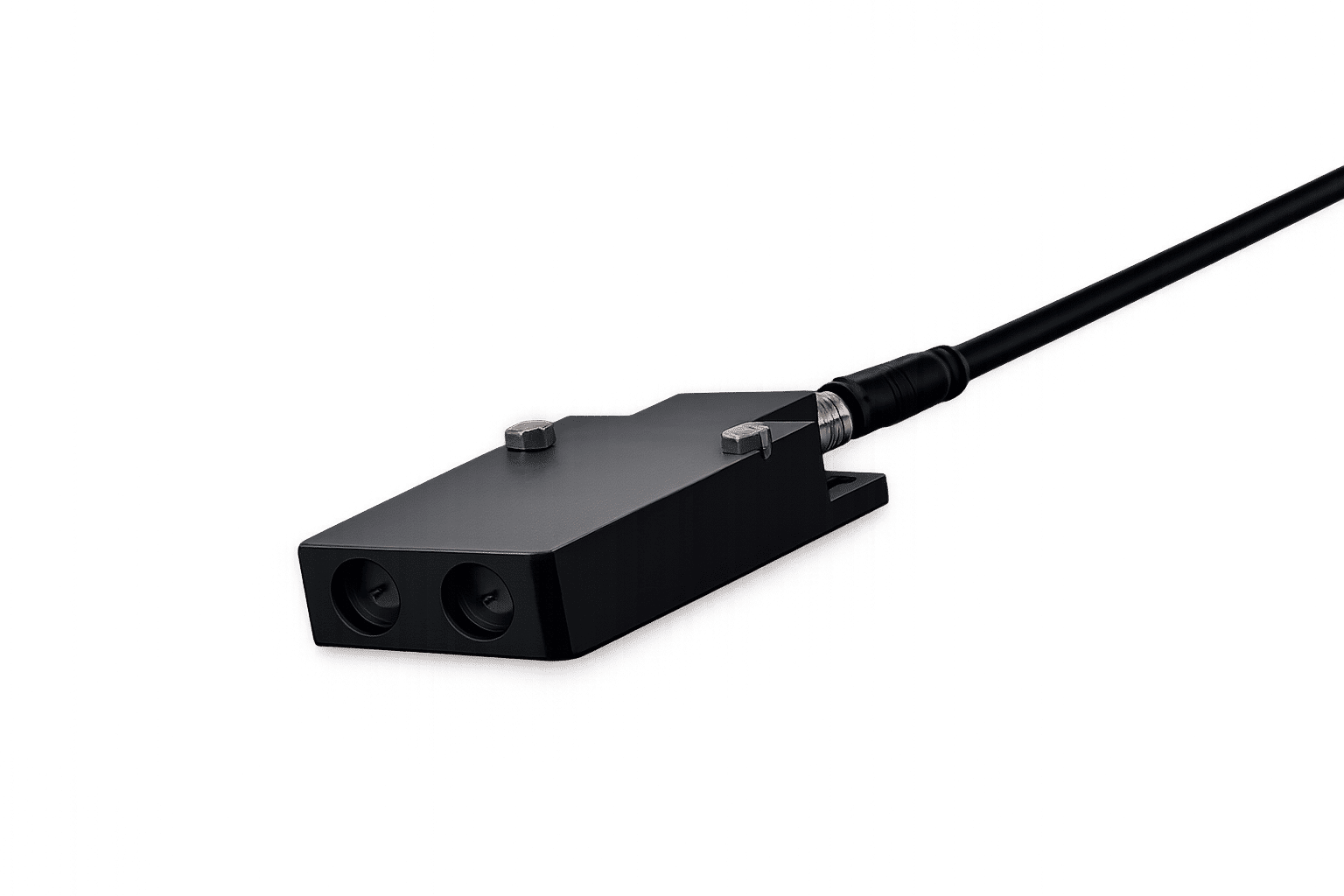

3024 Ultra-Compact Static Eliminator
The 3024 Ultra-Compact Static Eliminator is a close-range 24 V DC ionising device designed for installation in very confined spaces. It provides efficient static neutralisation for compact machinery and applications requiring precise integration and reliable short-range performance.
Specifications
| Parameter | Details |
|---|---|
| Operating distance | 20 – 150 mm |
| Output voltage | ±7 kV (integrated) |
| Construction | PVC body with epoxy resin encapsulation |
| Emitters | Tungsten, resistively coupled |
| Dimensions | 47 × 16 × 80 mm (L × W × H) |
| Weight | 100 g |
| Electrical input | 24 V DC (21–28 V), max 0.25 A |
| Connector | M8 (4-pin, cable ordered separately) |
| Environmental rating | 0–55 °C, 70 % RH non-condensing |
| Protection | IP67 |
| Certification | CE, UL |
Features
- Ultra-compact design for tight installation spaces
- Integrated 24 V DC power electronics
- Close-range static neutralisation performance
- Shockless tungsten emitters for long service life
- LED status indicator with clean-me, fault, and standby signals
- Remote monitoring outputs compatible with PLC systems
- Remote on/off and standby control
- Suitable for integration in automated and robotic systems
