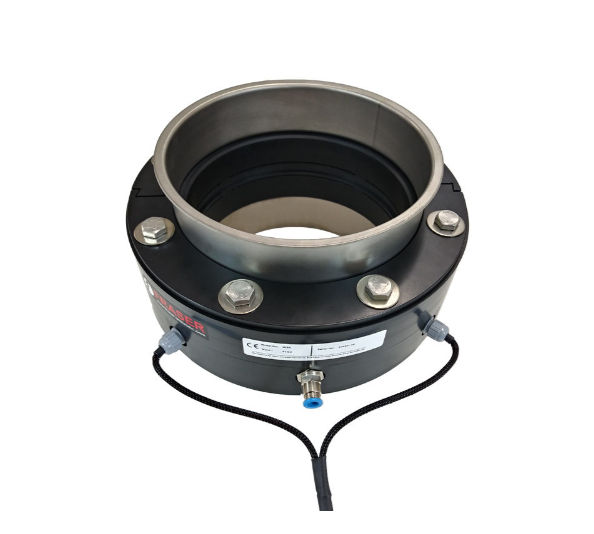

3024 DC Ring Ioniser

Name: 3024 DC Ring Ioniser
Brand: Fraser Anti-Static Techniques
Availability: InStock

The 3024 DC Ring Ioniser is an in-line static elimination system designed for neutralising electrostatic charge in pneumatic conveying, polymer handling, and powder transport systems. It combines DC ionisation with air assistance to deliver ions directly into pipework, improving charge neutralisation and reducing issues such as blockages, material build-up, and product misbehaviour in bends, cyclones, and discharge points. The system is suitable for compact installations where efficient in-line static control is required.

Static Neutralization and Generations

Speacialist Equipments

EquipmentDC Ring Ioniser

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no3024 DC Ring Ioniser

Download PDF

Technical specification

Specification item	Details
System type	In-line DC ring ioniser
Application	Pneumatic transport, polymer handling, powder conveying
Ionisation technology	High-voltage DC ionisation with air assistance
Ionising voltage	11 kV (via external power unit)
Power input	24 V DC (21–28 V)
Air supply	Max 5 bar
Air connection	8 mm push-fit
Construction	PVC/steel body with stainless steel HV electrodes
Installation sizes	150 mm / 200 mm / 250 mm Jacob tube compatibility
Weight	6.0 kg (150 mm), 7.5 kg (200 mm), 8.0 kg (250 mm)
Power unit weight	0.5 kg
Cable / connection	M8 3-pin connector (optional 10 m cable)
Status indication	Bi-colour LED (Green = OK, Red = Fault)
Operating temperature	0–60 °C
Humidity	70% RH non-condensing max
Protection rating	IP60
Certification	CE
Options	10 m cable + M8 connector (81588), 90–250 V AC power supply (E31101)
