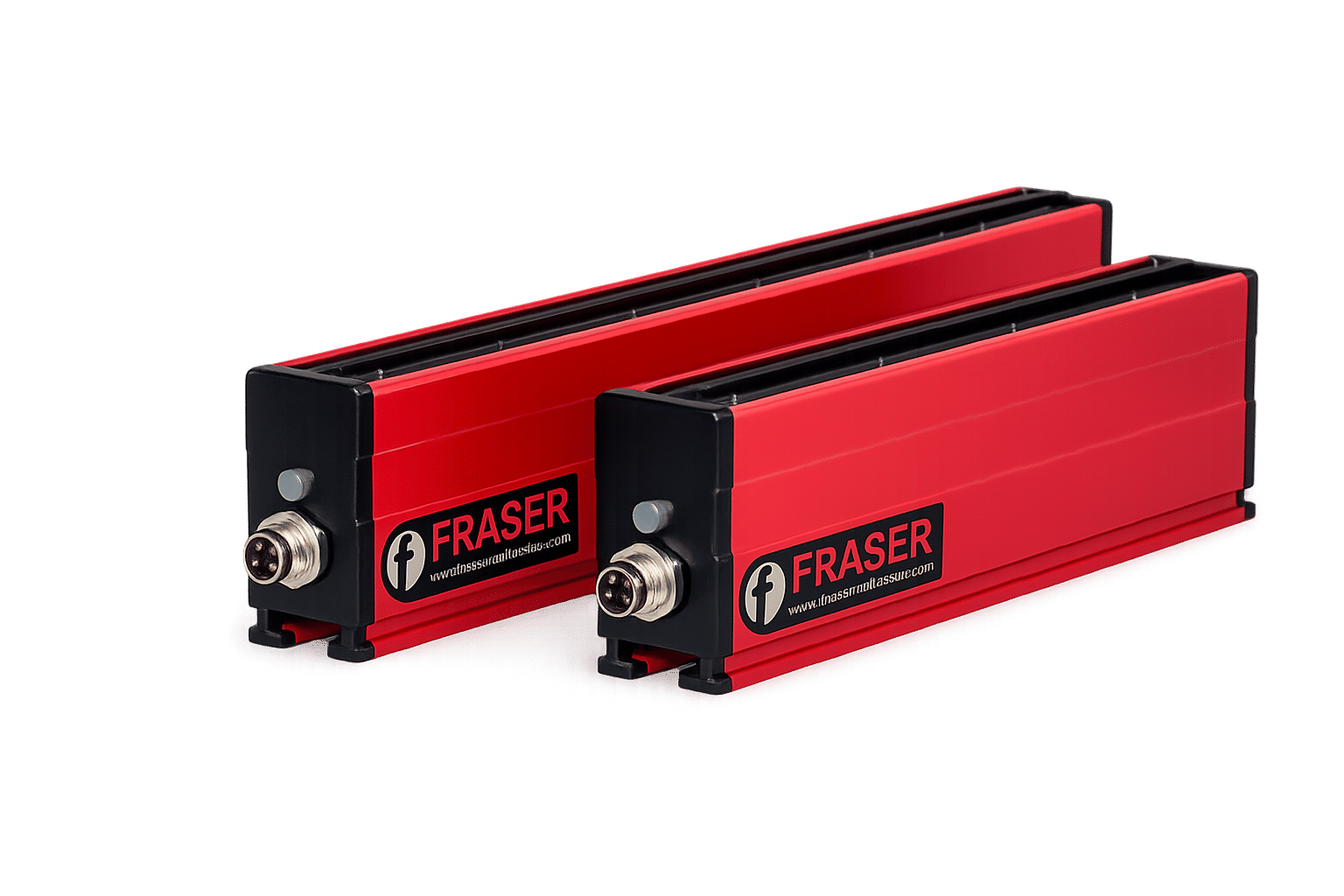

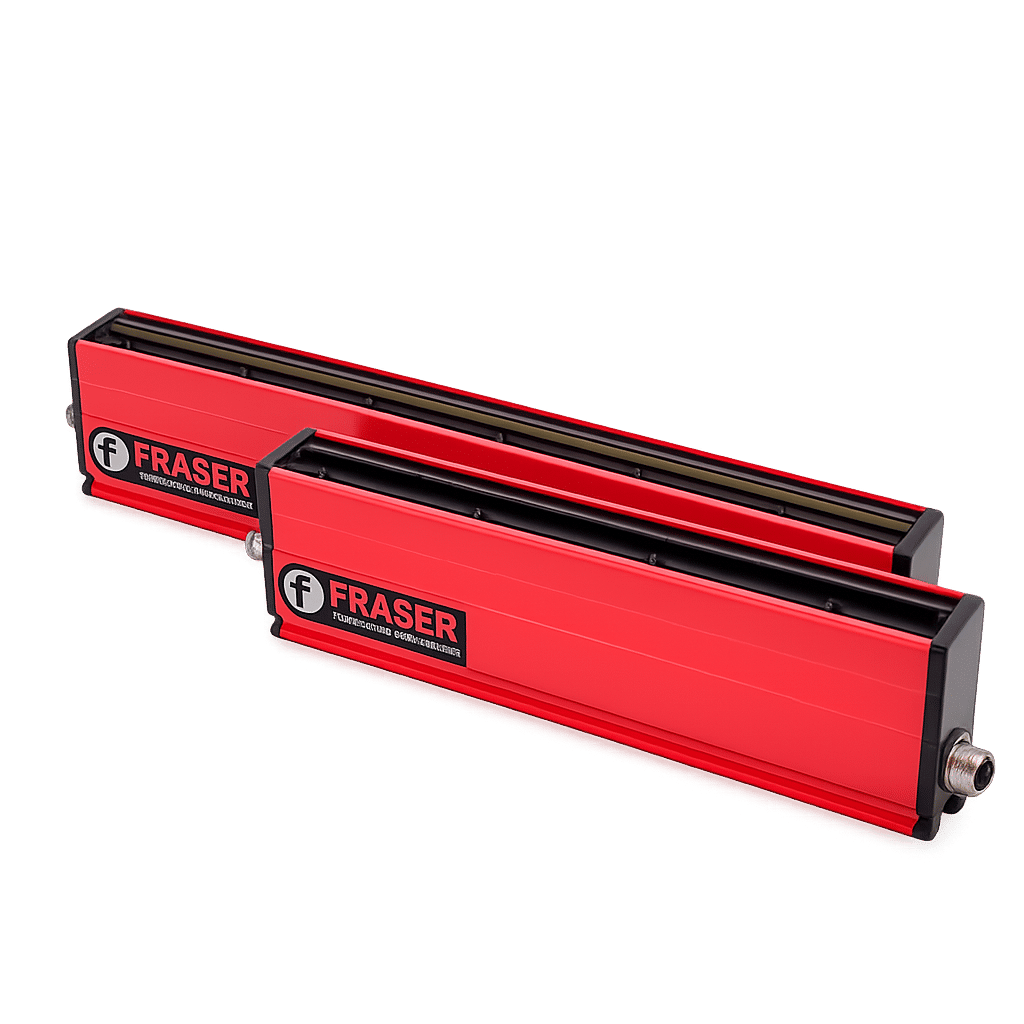

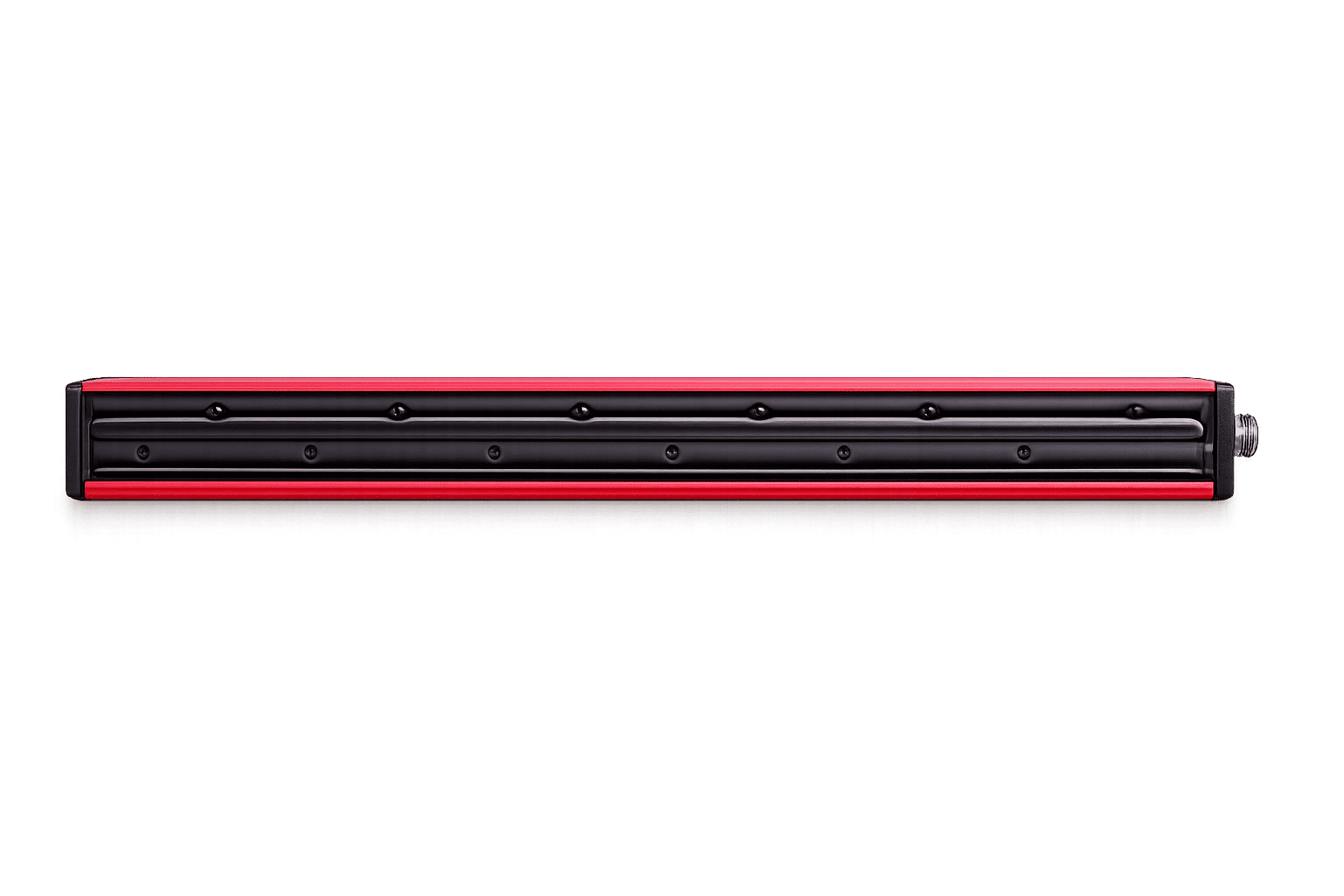

3024 Compact Static Eliminator
The 3024 Compact Static Eliminator is a short-range 24 V DC ionising bar designed for small industrial applications. It provides reliable static neutralisation with integrated electronics and is available in compact fixed lengths for space-limited machinery.
| Parameter | Details |
|---|---|
| Available lengths | 150 mm, 200 mm |
| Operating distance | 20 – 150 mm (best performance: 20 – 50 mm) |
| Output voltage | Up to 7.5 kV (integrated) |
| Emitter pitch | 20 mm |
| Construction | FR-ABS extrusion with epoxy resin encapsulation |
| Emitters | Tungsten, resistively coupled |
| Dimensions | 22 mm × 41.5 mm |
| Weight | 150 mm: 220 g; 200 mm: 280 g |
| Electrical input | 24 V DC (21–28 V), ~0.5–1 A depending on configuration |

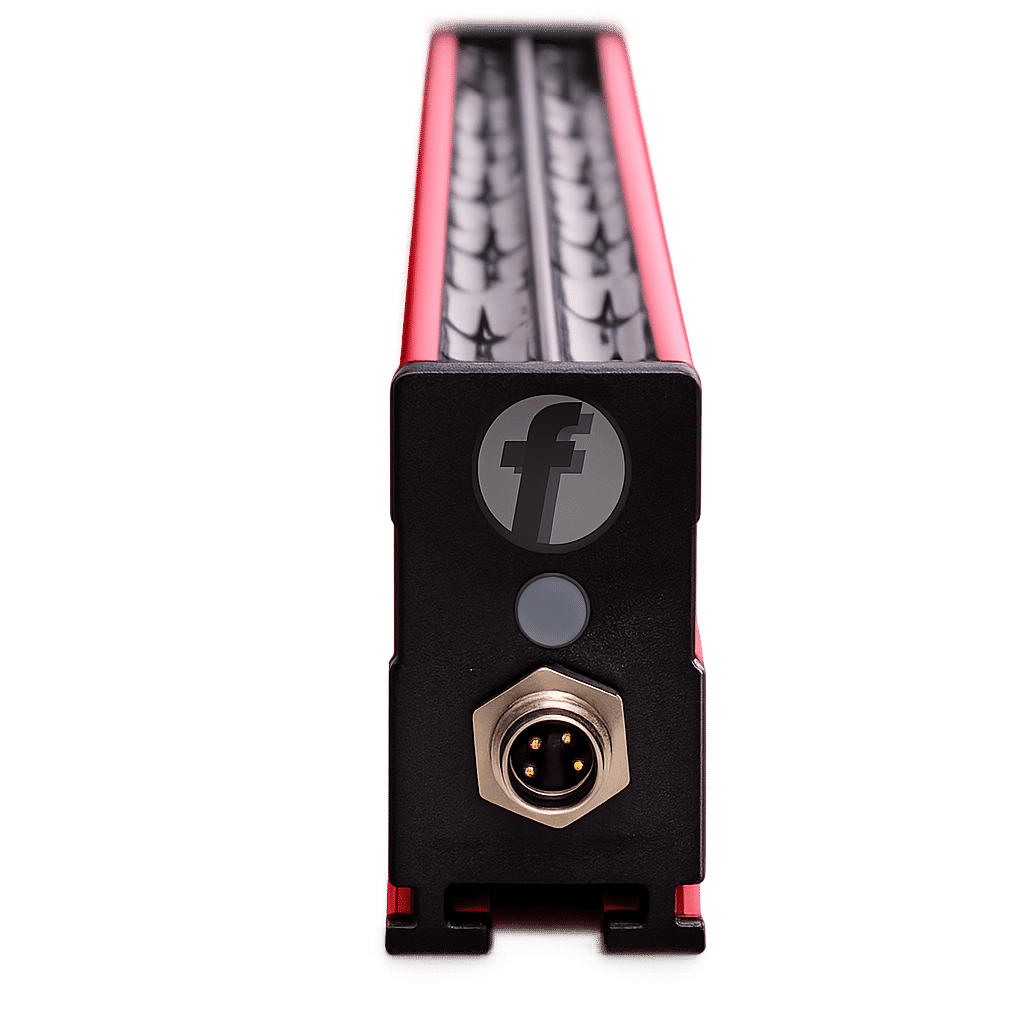

| Connector | M8 (4-pin, cable ordered separately) |
| Environmental rating | 0–55 °C, 70 % RH non-condensing |
| Protection | IP66 |
| Certification | CE, UL |
Features
- Compact fixed-length design for small machinery integration
- Integrated 24 V DC high-voltage generation (no external HV unit required)
- Full-length active ionisation (no dead zones)
- LED status indication with fault monitoring
- Remote monitoring and PLC-compatible outputs
- Remote on/off switching capability
- Suitable for narrow web, label, and digital print applications
