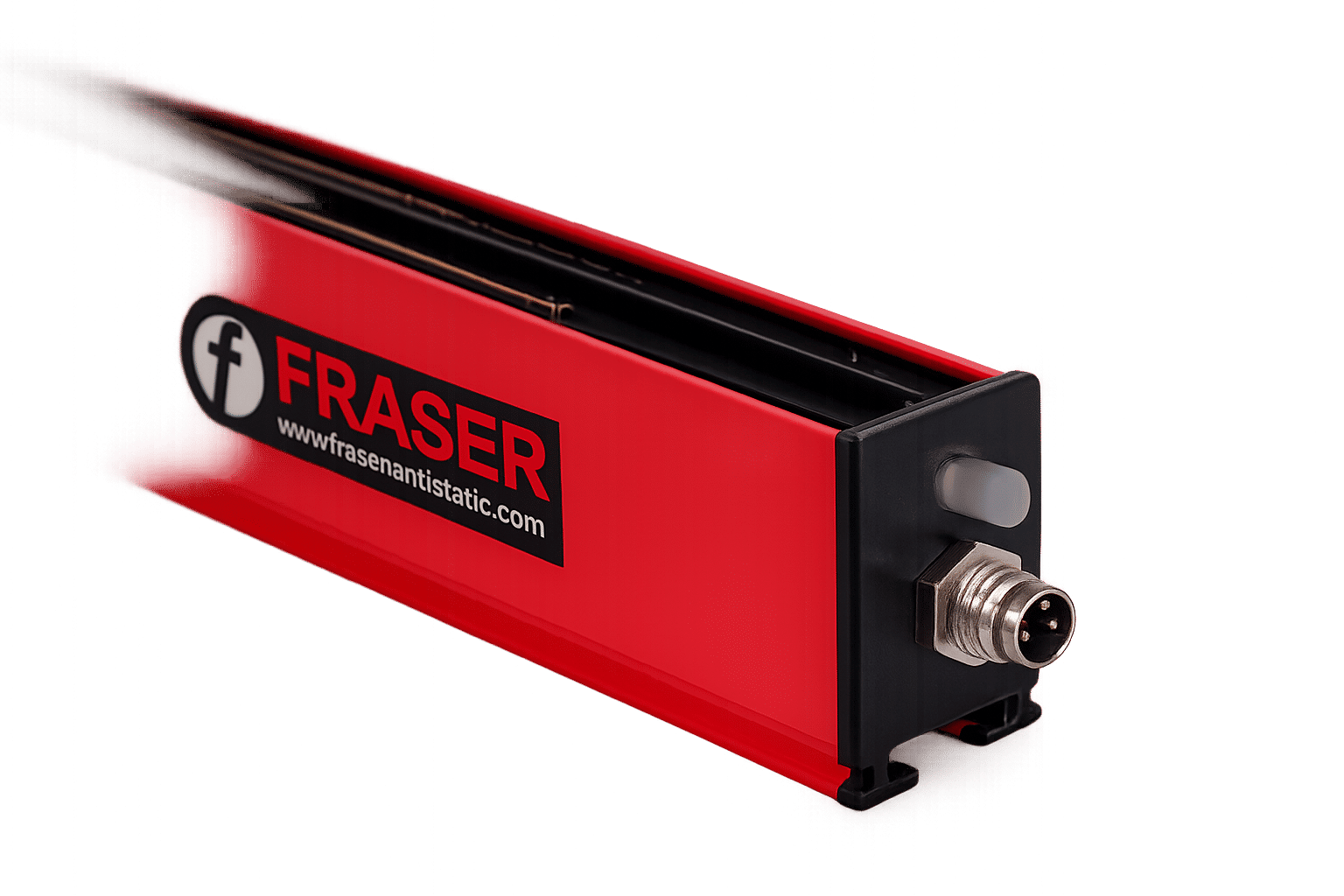

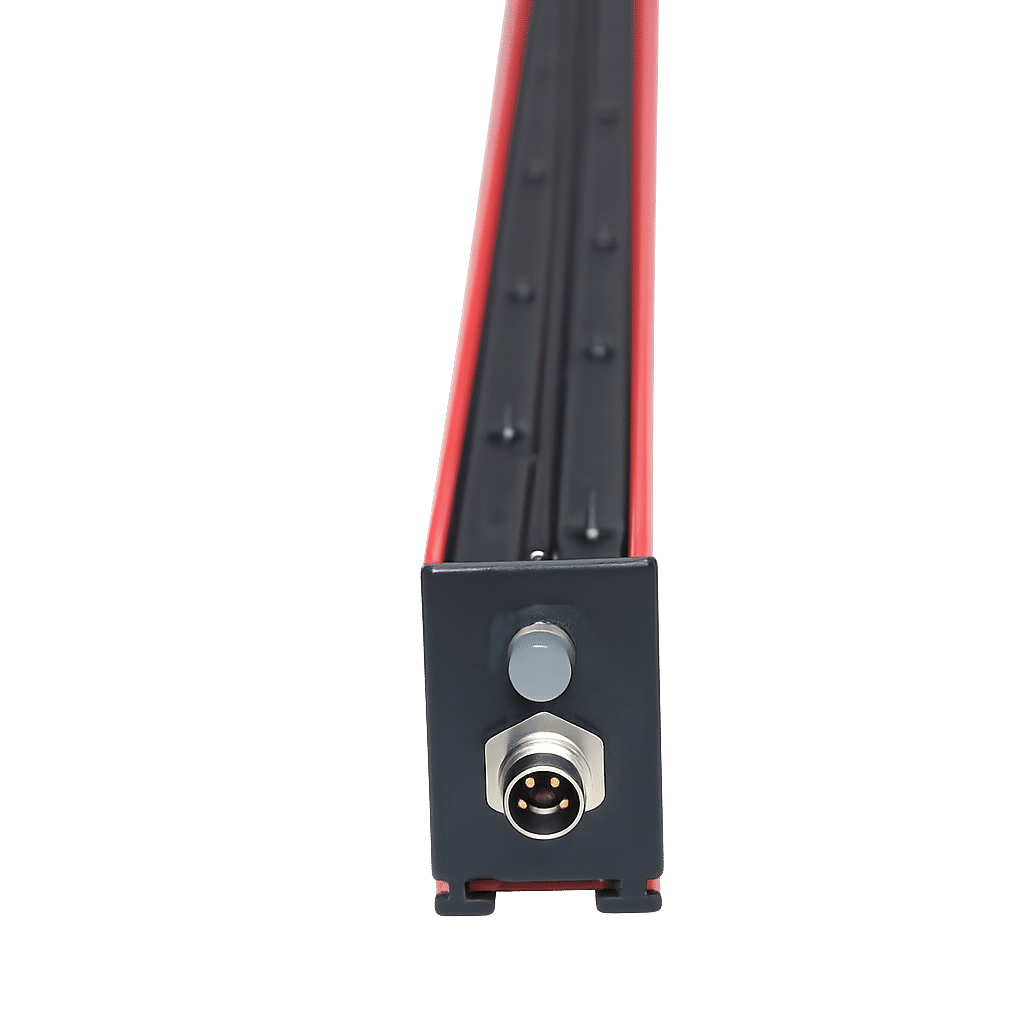

3014 Static Eliminator
The 3014 Static Eliminator is a compact 24 V DC ionising bar designed for short-range static neutralisation in industrial applications. It uses integrated electronics and field overlap ionisation technology to deliver stable performance in a small form factor, making it suitable as a replacement for traditional AC static bars.
Specifications
| Parameter | Details |
|---|---|
| Operating distance | 20 – 150 mm |
| Output voltage | Up to 7.5 kV (integrated) |
| Emitter pitch | 20 mm |
| Construction | FR-ABS extrusion with epoxy resin encapsulation |
| Emitters | Tungsten, resistively coupled |
| Weight | 0.28 kg (0.25 m unit), +0.51 kg per additional metre |
| Dimensions | 20 mm × 32.5 mm |
| Active length | Overall length minus 20 mm |
| Electrical input | 24 V DC (21–28 V), max 0.5 A |
| Connector | M8 4-pin (cable ordered separately) |
| Environmental rating | 0–55 °C, 70 % RH non-condensing |
| Protection | IP67 |
| Certification | CE, CB, UL |
Features
- Compact short-range ionisation bar for industrial use
- Field overlap technology for consistent ion coverage
- Integrated 24 V DC power supply (no external HV unit required)
- LED status indication with fault and clean-me alerts
- Remote monitoring outputs compatible with PLC systems
- Remote on/off switching capability
- Fully sealed construction for harsh environments
- Suitable for air knife or air bar mounting systems
