1260 / 1265 Single Point Ionisers

Name: 1260 / 1265 Single Point Ionisers
Brand: Fraser Anti-Static Techniques
Availability: InStock

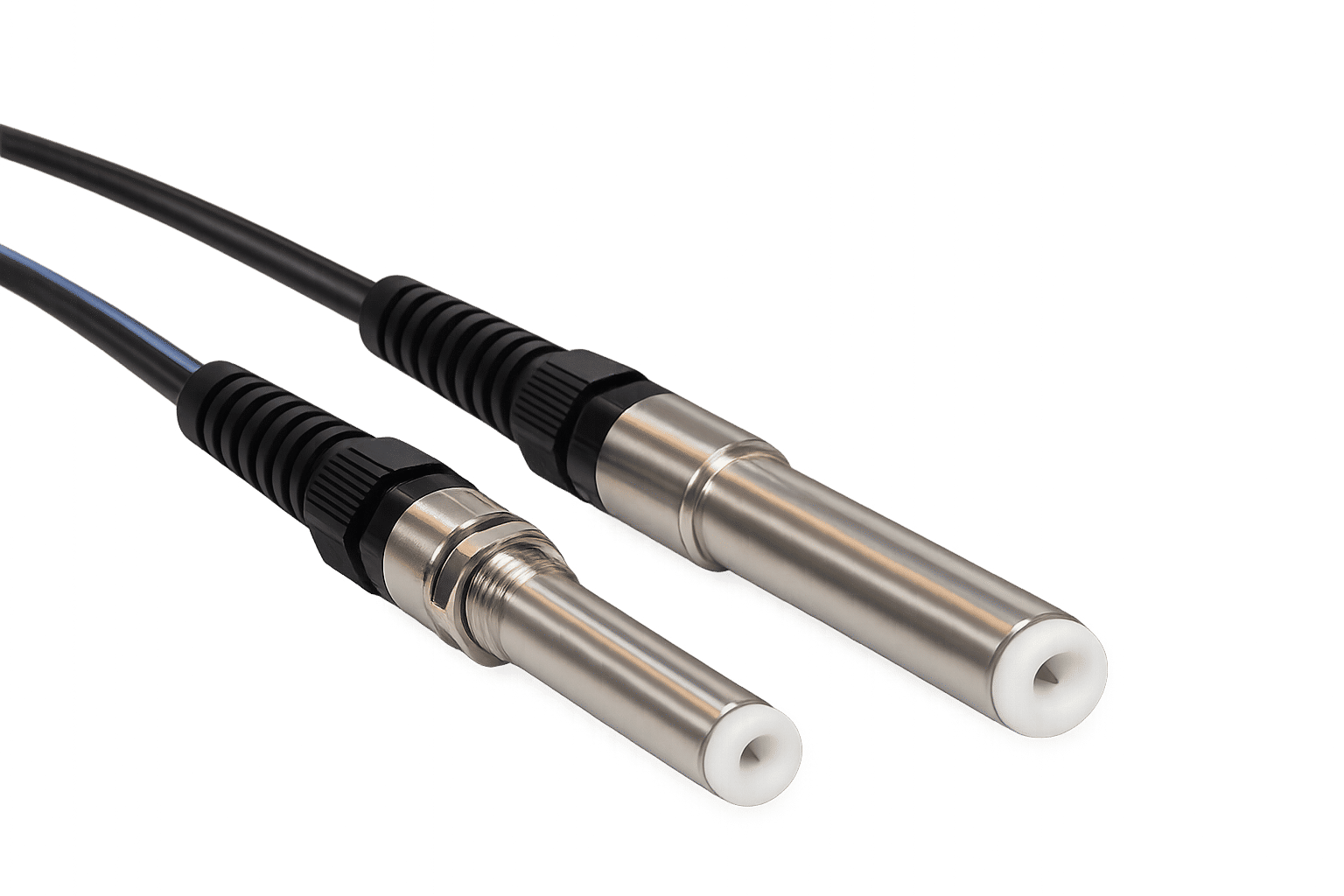

AC Single Point Ioniser 1260 / 1265 is a compact ionisation system designed for static neutralisation in confined spaces and on small components. It produces a concentrated cone of ionised air for effective charge removal at short range, making it suitable for precision applications requiring localised static control and integration into restricted machinery layouts.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator (Single Point Ioniser)

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no1260 / 1265

Download PDF

Technical specification

Parameter	Value
Ionisation Type	AC ionisation system
Output Voltage	5.5 – 6 kV (via compatible power unit)
Effective Range	20 – 50 mm (optimal operating distance)
Ionised Field	Up to 150 mm diameter cone
Construction Material	Stainless steel with PTFE insulation
Electrical Insulation	100 MΩ series resistance (shockless operation)
Cable Type	Hi-Flex 30 kV screened cable
Cable Bend Radius	70 mm
Standard Cable Length	2 m (custom lengths available)
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Protection Design	Fully encapsulated high-voltage components
Cleanroom Compatibility	ISO Class 4
Power Requirement	Fraser 5.5 – 6 kV AC power units
Installation Use	Small parts, confined spaces, air jet ionisation
Certification	CE
