1255 Static Eliminator

Name: 1255 Static Eliminator
Brand: Fraser Anti-Static Techniques
Availability: InStock

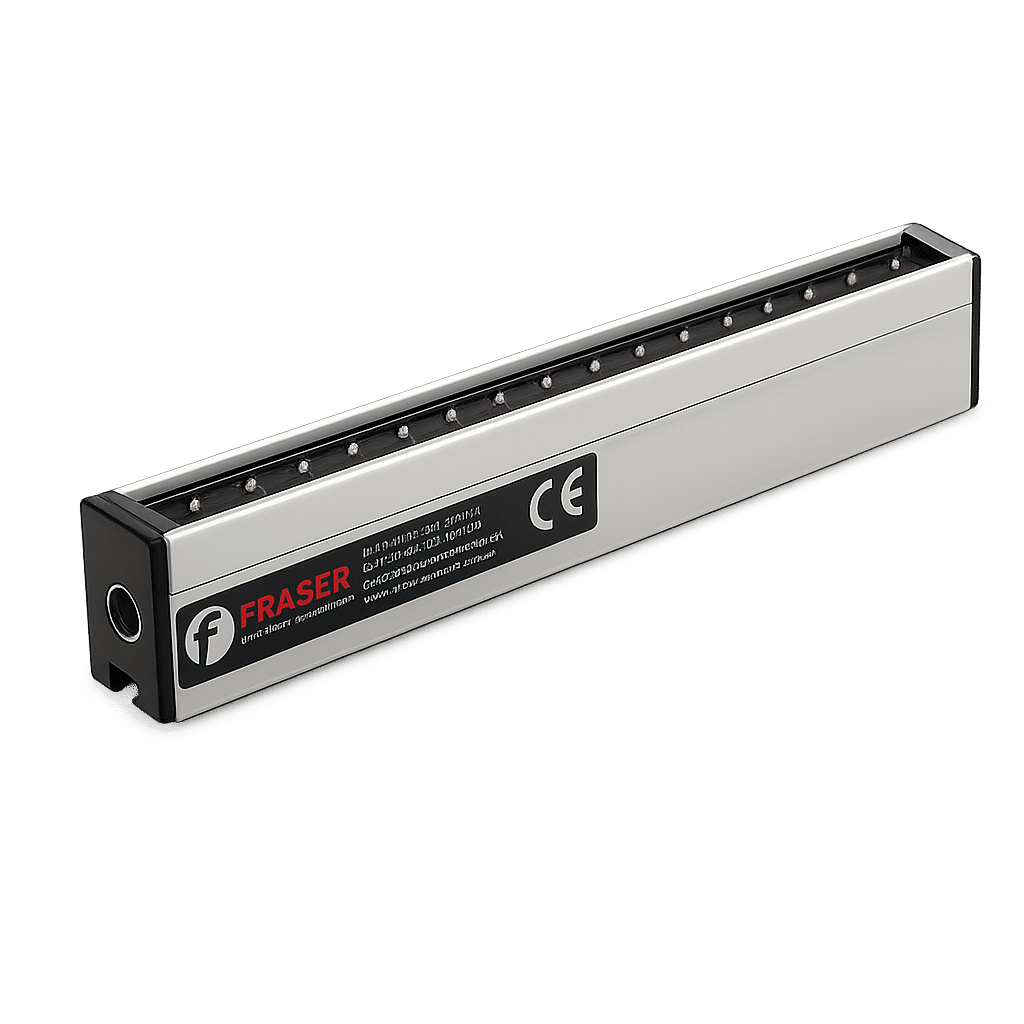

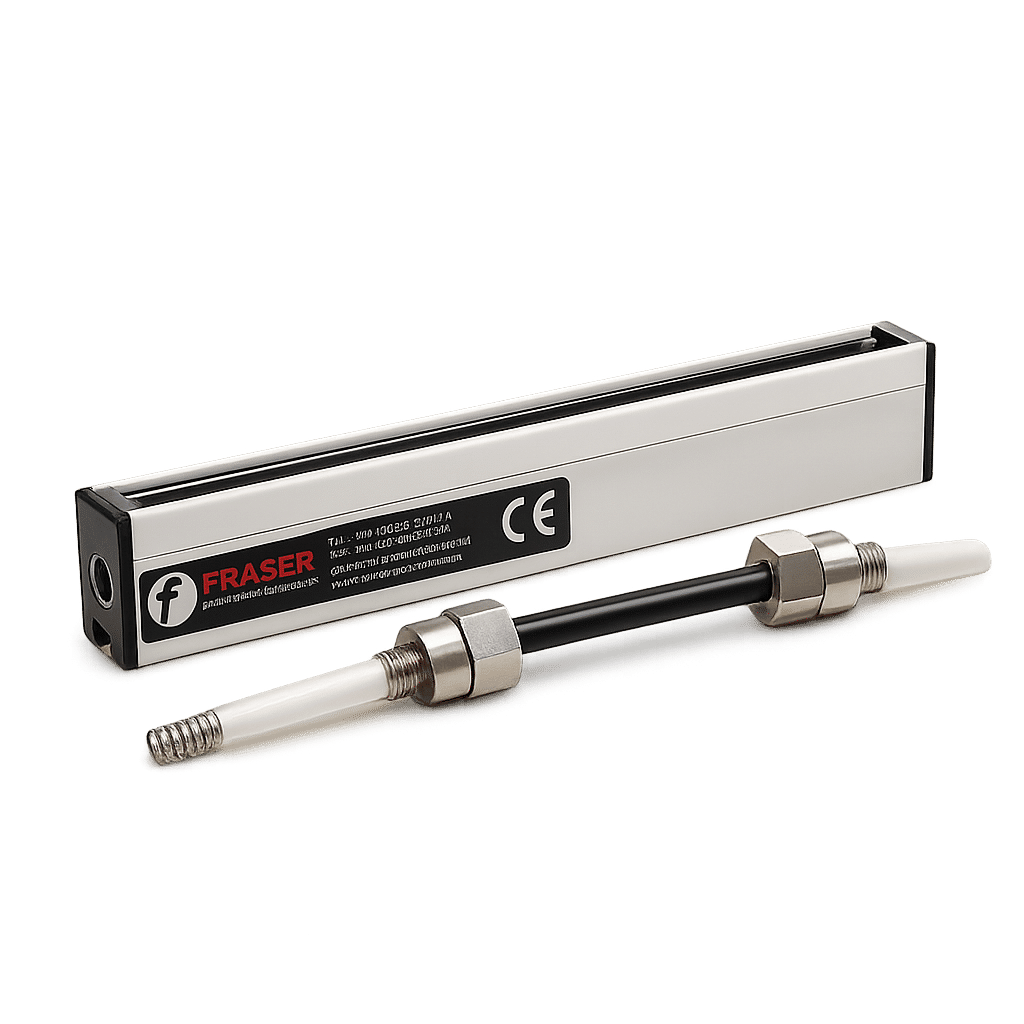

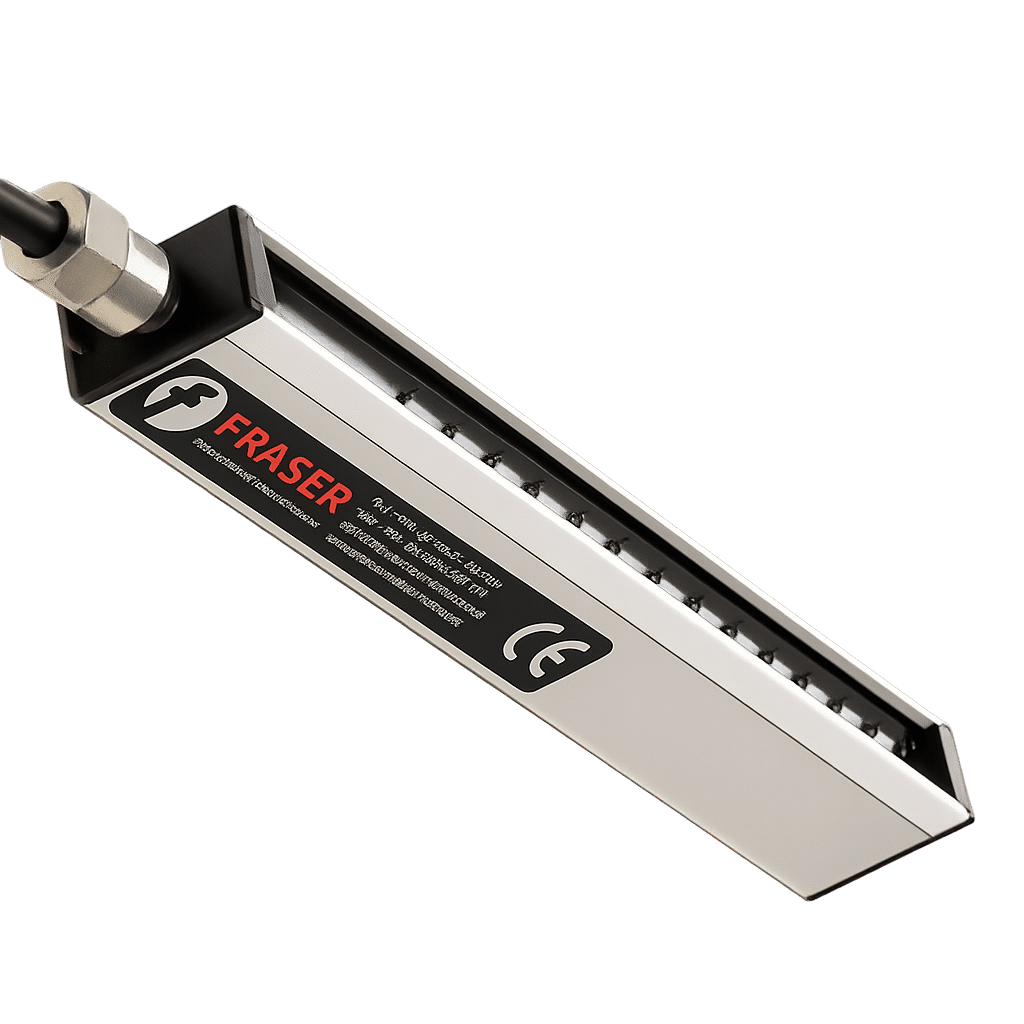

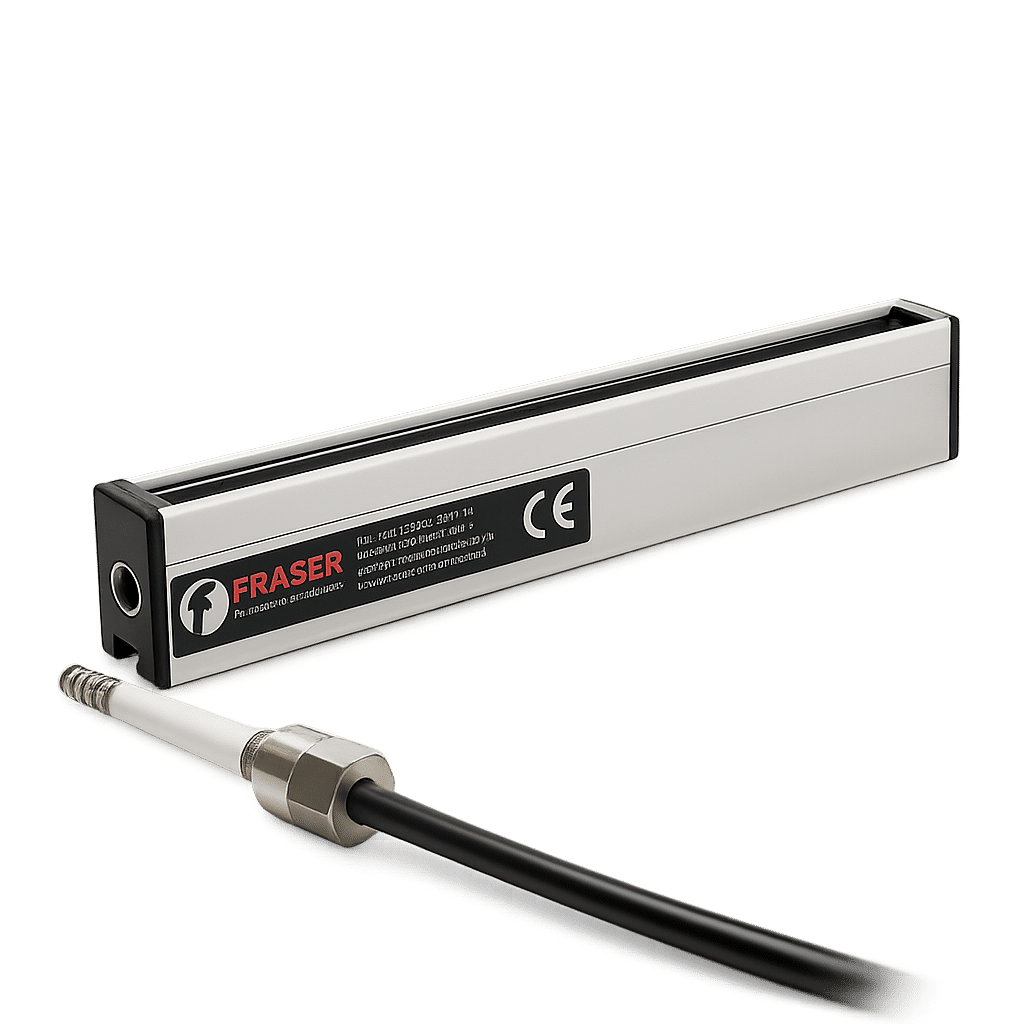

Static Eliminator Bar 1255 is a detachable-cable AC ionisation system designed for industrial applications where high-voltage cable replacement is required without replacing the complete bar assembly. It provides reliable short-range static neutralisation using shockproof resistive coupling and stay-sharp emitters for continuous performance in converting, plastics, packaging, and automated production systems.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no1255

Download PDF

Technical specification

Parameter	Specification
Ionisation	Type AC ionisation system
Operating Voltage	5.5 – 6 kV power unit required
Operating Distance	20 – 150 mm (optimal ≤ 50 mm)
Emitter Pitch	10 mm
Emitter Type	Stay-sharp hardened emitter
Safety Design	Resistively coupled, shockproof operation
Current Limitation	5 mA max from power unit
Internal Safety Resistance	Limits current below 50 μA
Construction Material	Anodised aluminium, epoxy resin, ABS
Dimensions	20 mm x 32 mm (W x H)
Single Entry Length Range	180 mm to 6000 mm
Single Entry Active Length	Overall length minus 80 mm
Double Entry Length Range	200 mm to 6000 mm
Double Entry Active Length	Overall length minus 120 mm
Cable Type	Hi-Flex 30 kV screened detachable cable
Cable Bend Radius	70 mm
Standard Cable Length	2 m (custom lengths available)
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Mounting Options	Adjustable mounting studs standard
Optional Configurations	Fixed studs, bars joined in series, Airboost option
Power Requirement	Fraser 5.5 – 6 kV HP50 Power Units
Monitoring Option	Optional remote operational status monitoring
Certification	CE
