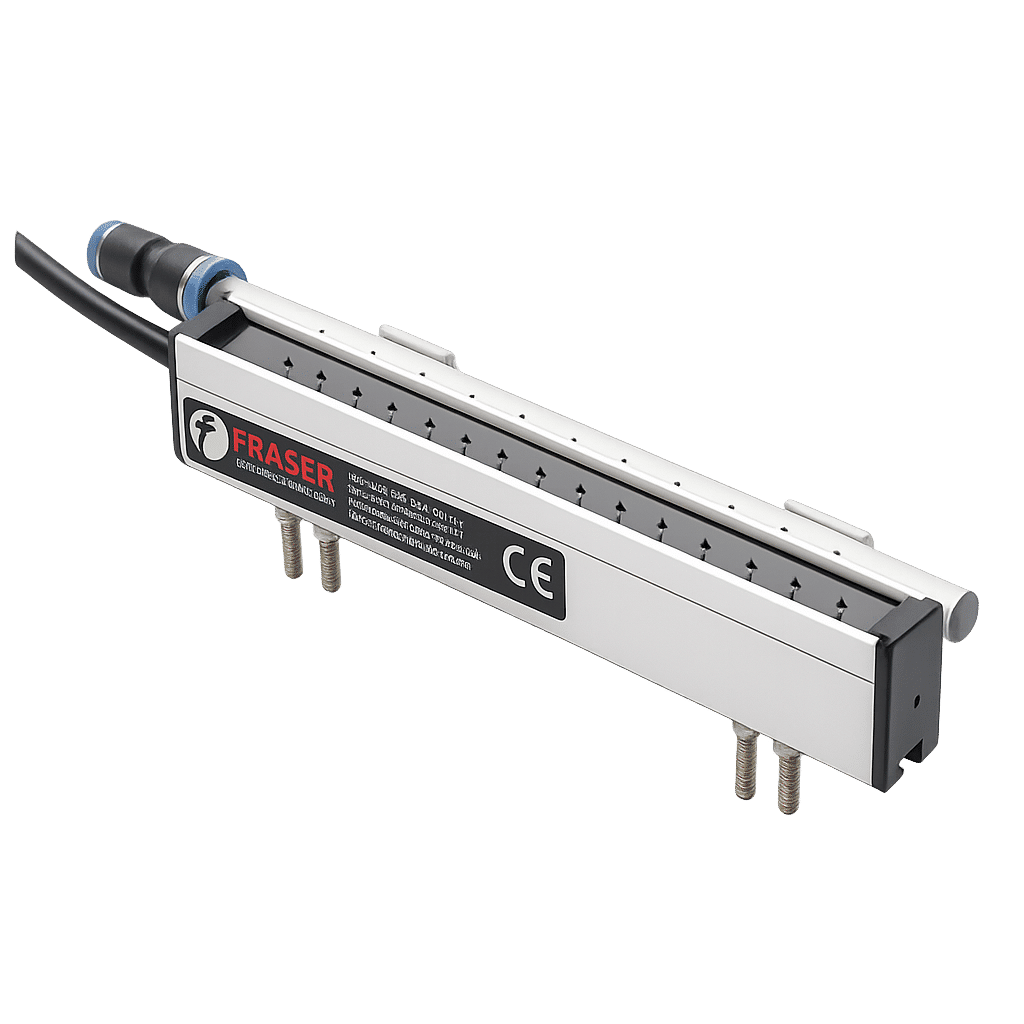

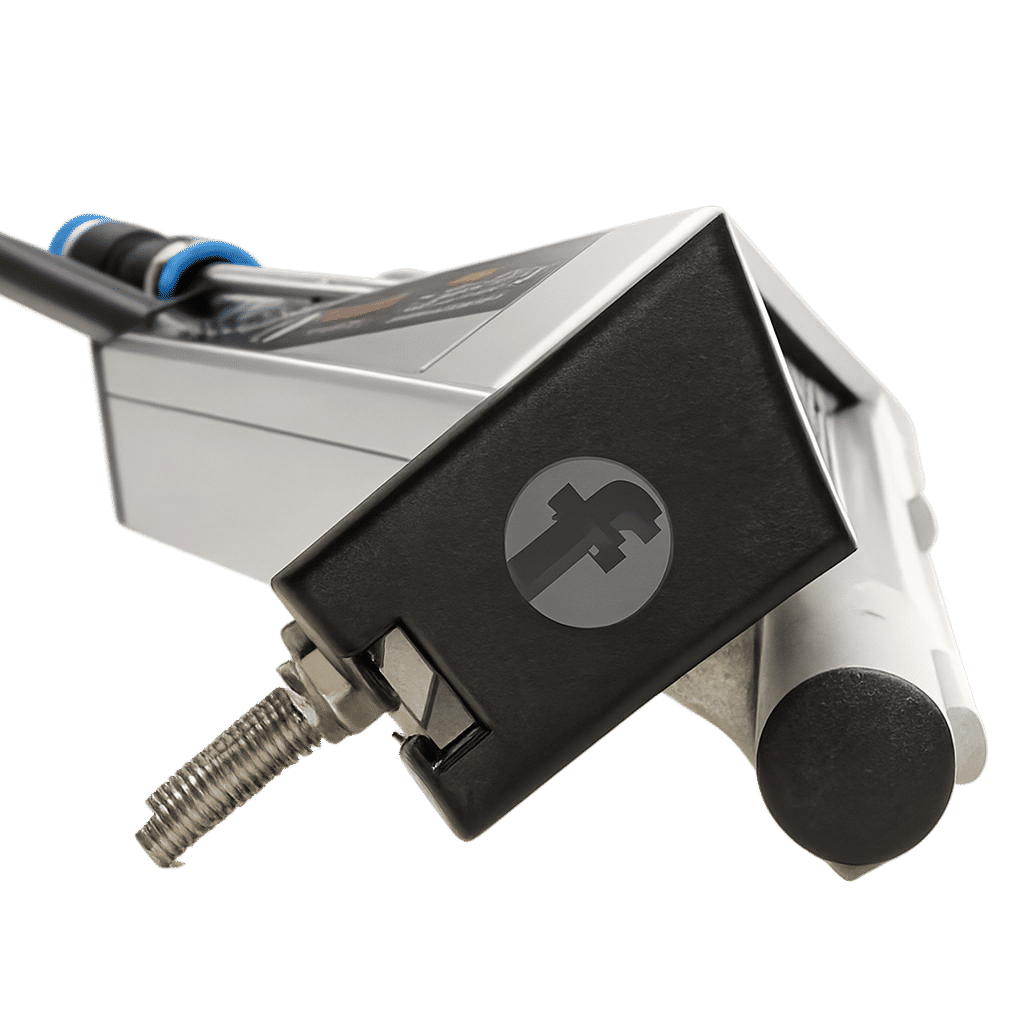

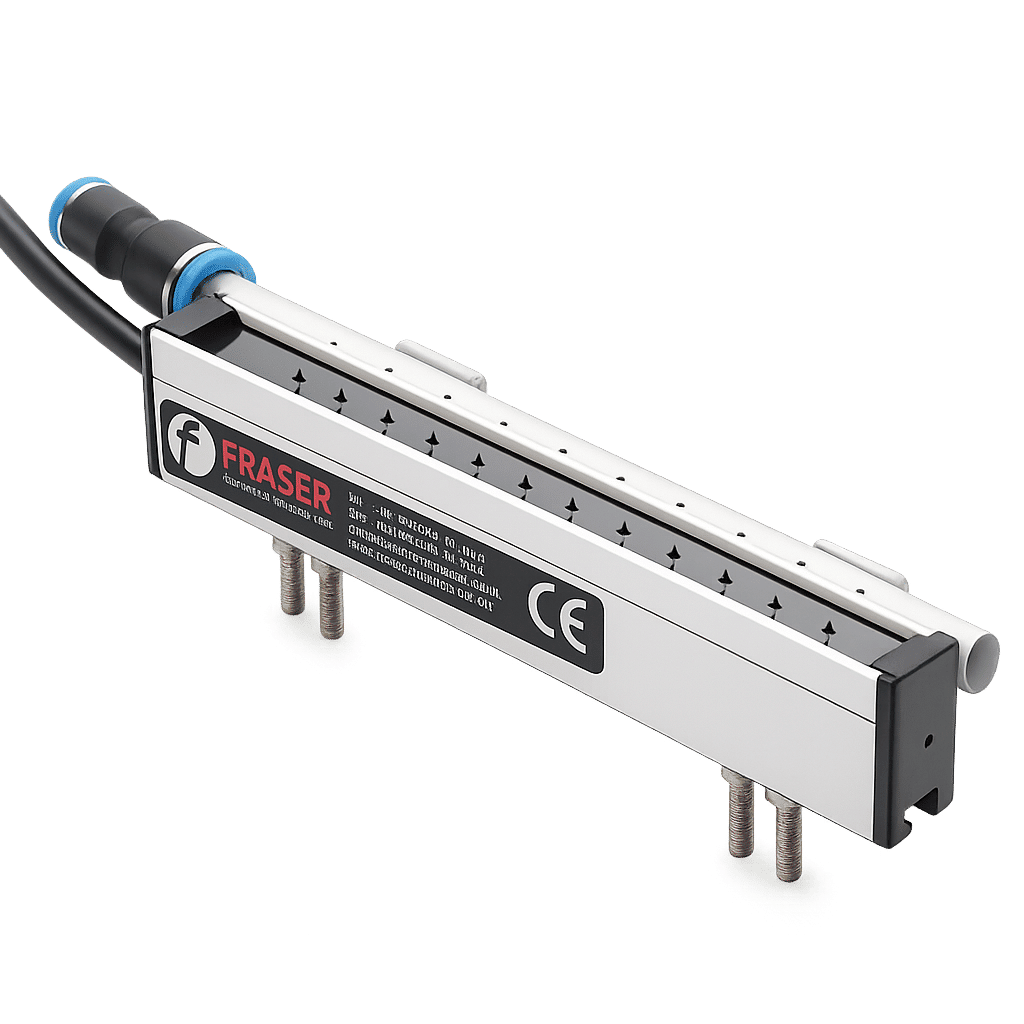

1250 Air Bar Static Eliminator

Name: 1250 Air Bar Static Eliminator
Brand: Fraser Anti-Static Techniques
Availability: InStock

1250 Air Bar is an air-assisted static elimination system designed to extend the effective ionisation range of the 1250, 1250-S, and EX-1250 static eliminator bars. It combines AC ionisation with low-pressure compressed air to deliver ionised airflow into restricted spaces, around three-dimensional products, and across wider operating distances exceeding 500 mm.

Static Neutralization and Generations

Static Elimnation

EquipmentAir-Assisted Static Eliminator Bar

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no1250 Air Bar

Download PDF

Technical specification

Parameter	Specification
onisation Type	AC ionisation with compressed air assistance
Operating Voltage	5.5 – 6 kV power unit required
Effective Range	Over 500 mm
Base Ioniser	1250-S / 1250 / EX-1250 Static Eliminator
Emitter Pitch	10 mm

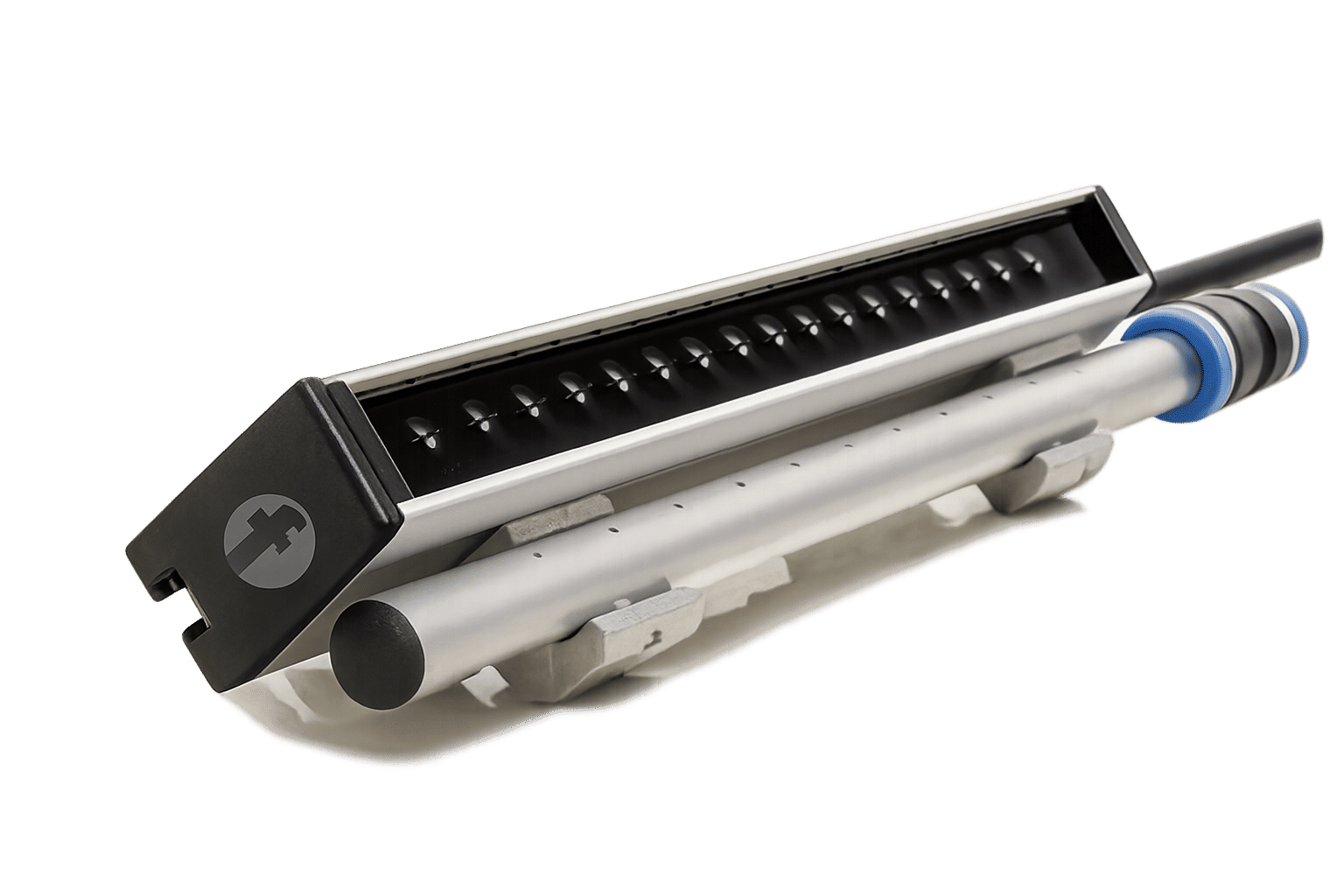

Construction	1250-S bar mounted on aluminium air pipe
Housing Material	Anodised aluminium with encapsulated electrical components
Air Pipe Diameter	12 mm aluminium pipe
Air Hole Configuration	1 mm holes at 15 mm intervals
Air Pressure Requirement	Typical 0.5 – 2.0 bar
Air Supply Condition	Clean and dry compressed air
Air Connection (≤1000 mm)	10 mm OD push-fit connector at one end
Air Connection (1000–2500 mm)	10 mm OD push-fit connectors at both ends
Dimensions	20 mm x 32 mm (W x H)
Length Range	60 mm to 2500 mm
Cable Type	Flexible screened high-voltage cable
Standard Cable Length	2 m
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Power Requirement	Fraser HP Power Unit
Certification	CE
