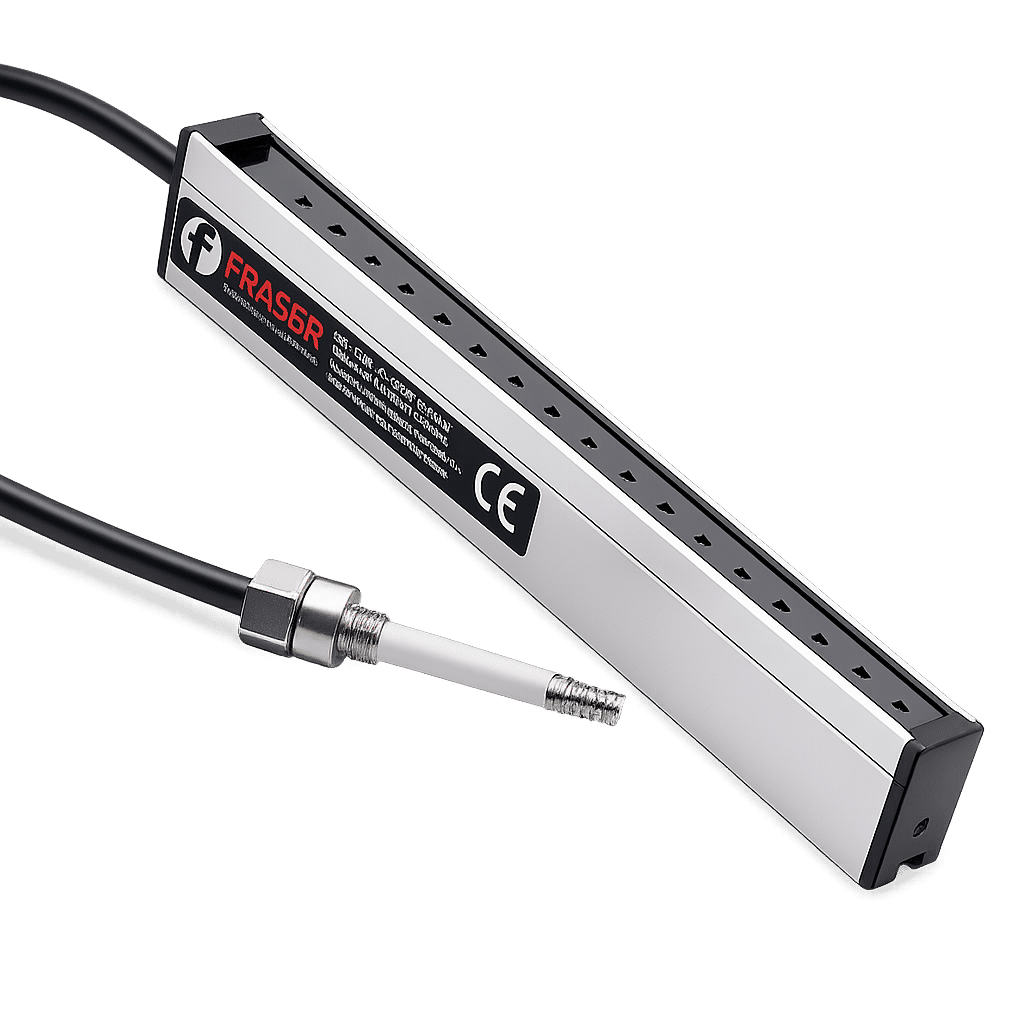

1250 / 1250-S Static Eliminators

Name: 1250 / 1250-S Static Eliminators
Brand: Fraser Anti-Static Techniques
Availability: InStock

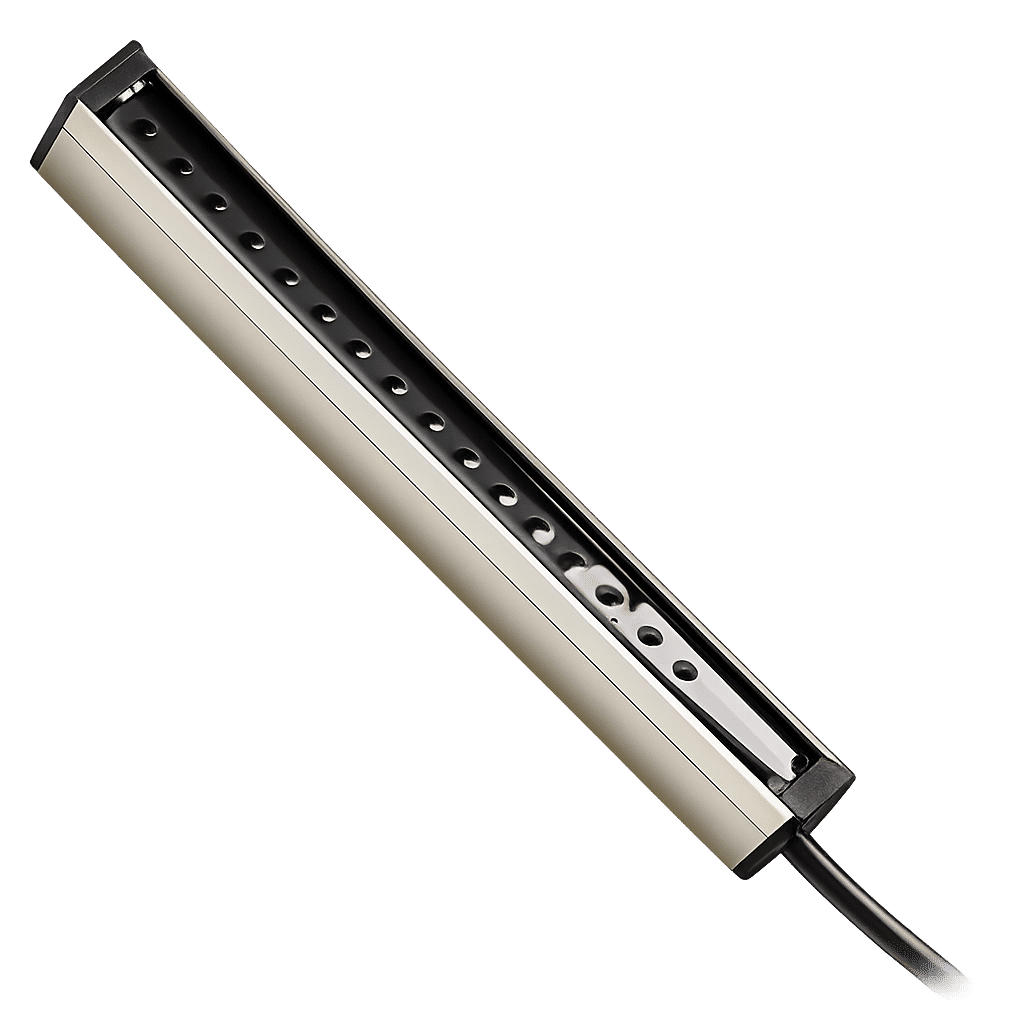

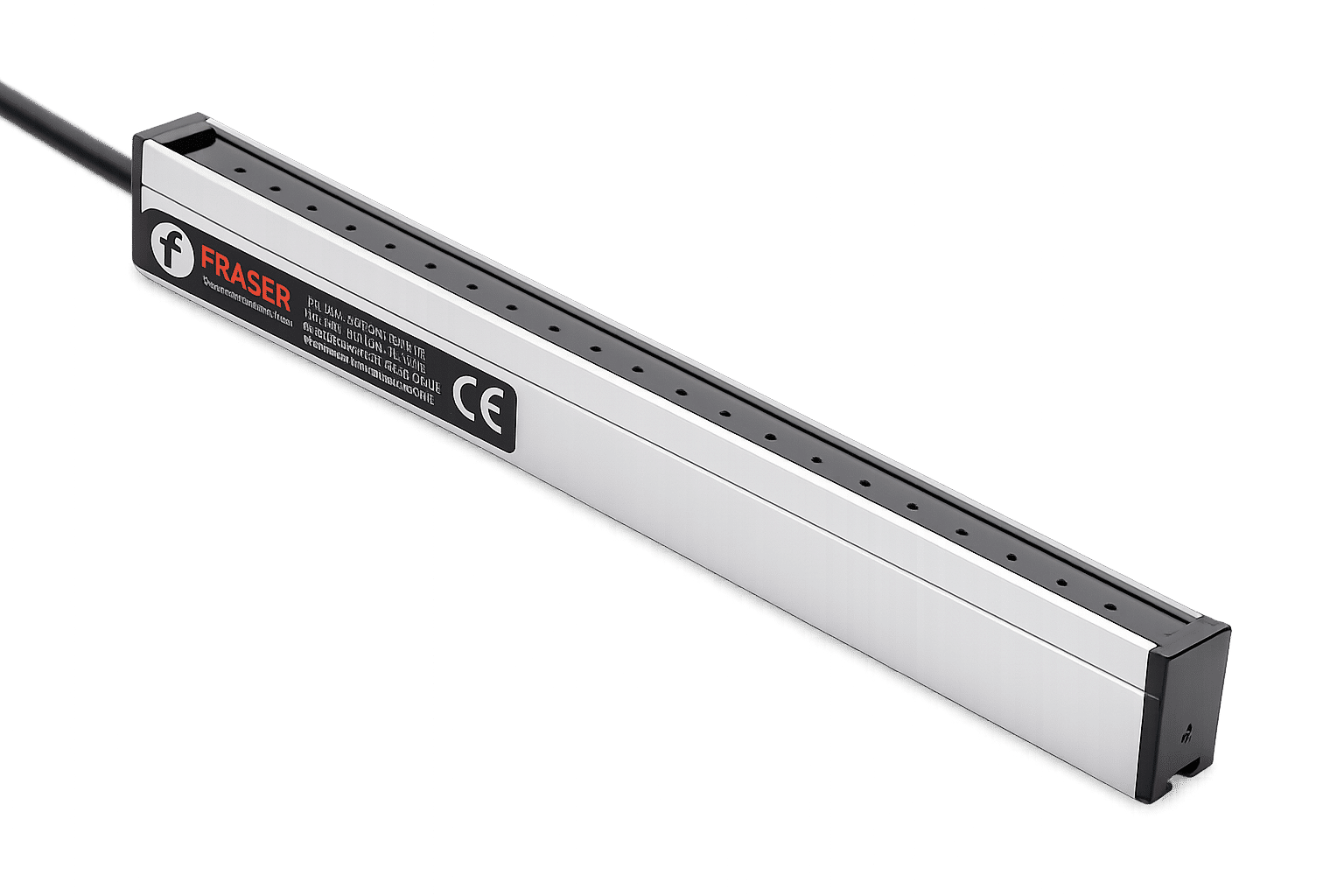

AC Static Eliminator Bar 1250 / 1250-S is a high-performance short-range ionisation system designed for reliable static neutralisation in industrial sheet and web processing. It delivers consistent AC ionisation for effective charge control at close operating distances and is engineered for long service life in continuous production environments across plastics, packaging, and converting applications.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no 1250 / 1250-S

Download PDF

Technical specification

Parameter	Specification
Ionisation Type	AC ionisation system
Operating Voltage	5.5 – 6 kV power unit required
Operating Distance	20 – 150 mm (optimal ≤ 50 mm)
Emitter Pitch	10 mm (stay-sharp emitters)
Electrical Current Limit	5 mA max from power unit
Internal Safety Resistance	Limits current below 50 μA
Construction Material	Anodised aluminium, epoxy resin, ABS
Protection Rating	IP66
Cable Type	Hi-Flex 30 kV screened cable
Cable Bend Radius	70 mm
Standard Cable Length	2 m (custom lengths available)
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Weight	1.1 kg/m
Length Range	60 mm to 6000 mm
Active Length	Overall length minus 50 mm
Mounting Options	Fixed (1250) or adjustable studs (1250-S)
Safety Certification	CE, UL (optional)
Cleanroom Rating	ISO Class 5 compatible
Power Requirement	Fraser 5.5 – 6 kV AC power units
Variants	UL Listed, EX-ATEX, Airboost, detachable cable options
