1100 / 1100-S Static Eliminators

Name: 1100 / 1100-S Static Eliminators
Brand: Fraser Anti-Static Techniques
Availability: InStock

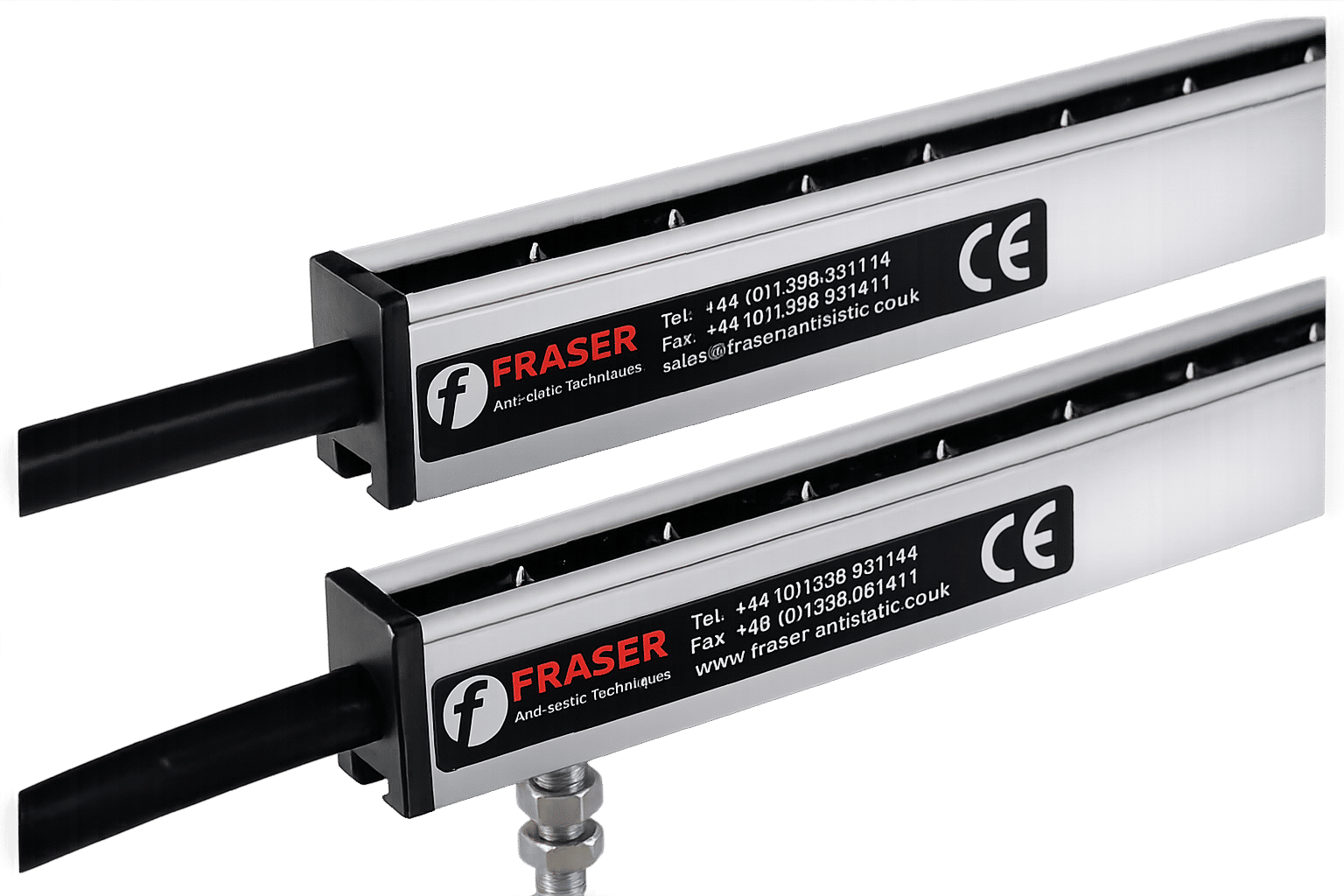

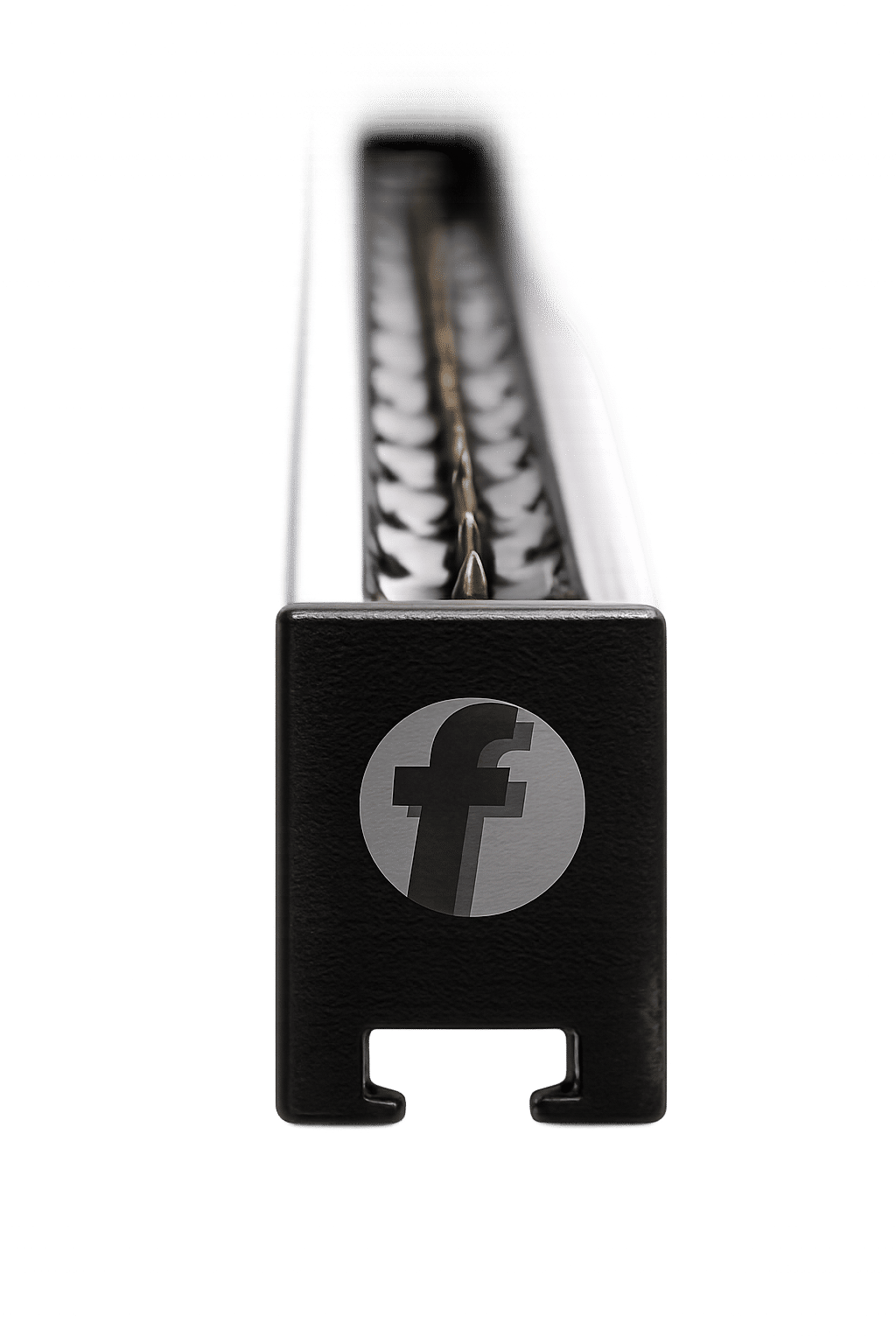

AC Static Eliminator Bar 1100 / 1100-S is a compact short-range ionisation system designed for efficient static neutralisation in space-restricted industrial applications. The resistively coupled design provides stable ion output with shockproof operation, making it suitable for web and sheet processing systems requiring reliable static control in compact installation areas.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

ManufacturerFraser Anti-Static Techniques

Type / Model / Part no1100 / 1100-S

Download PDF

Specification

Parameter	Value
Ionisation Type	AC ionisation system
Operating Voltage	5.5 – 6 kV power unit required
Operating Distance	20 – 100 mm (optimal ≤ 50 mm)
Construction Material	Anodised aluminium, epoxy resin, ABS
Emitter Type Hardened	long-life emitters
Safety Design	Resistively coupled, shockproof operation
Current Limitation	5 mA max from power unit
Internal Safety Resistance	Limits current below 50 μA
Protection Rating	IP66
Operating Temperature	Up to 60 °C
Humidity	Up to 70% RH non-condensing
Dimensions (1100)	14.0 mm x 17.2 mm (W x H)
Dimensions (1100-S)	14.0 mm x 19.9 mm (W x H)
Length Range	60 mm to 3000 mm
Active Length	Overall length minus 20 mm
Weight	0.45 kg/m
Cable Type	Hi-Flex 30 kV screened cable
Cable Bend Radius	70 mm
Standard Cable Length	2 m (custom lengths available)
Mounting Options	Fixed studs (1100) or adjustable studs (1100-S)
Cleanroom Compatibility	ISO Class 4
Power Requirement	Fraser 5.5 kV or 6 kV power units
Certification	CE
