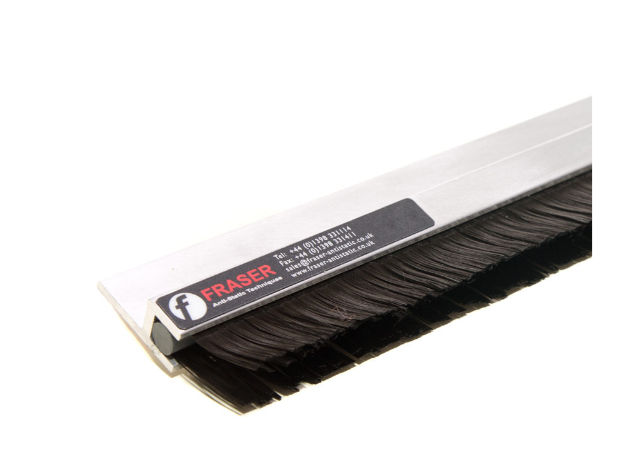

101 / 201 Static Dischargers
101 / 201 Static Dischargers are passive anti-static devices designed to reduce electrostatic charge on moving materials such as sheets and webs. They operate without electrical supply by using conductive fibre elements to dissipate static charges safely to earth, making them suitable for simple, cost-effective static control applications.
EquipmentStatic Discharger
ManufacturerFraser Anti-Static Techniques
Type / Model / Part no101 / 201
Technical specification
| Parameter | Specification |
|---|---|
| Operating Type | Passive ionisation (no electrical supply required) |
| Application Distance | 2 – 3 mm from material |
| Body Types | 101: aluminium “h” body / 201: aluminium “u” body |
| Body Dimensions | 101: 11 × 25 mm / 201: 9.5 × 9.5 mm |
| Maximum Length | 101: up to 4000 mm / 201: up to 3000 mm |
| Fibre Types | Carbon fibre or conductive nylon |
| Fibre Diameter | Carbon: 6/7 μm / Nylon: 35 μm |
| Fibre Density | Carbon: 60,000 filaments/cm / Nylon: 4,000–5,000 filaments/cm |
| Fibre Length Options | 18 mm, 30 mm, 50 mm, 80 mm |
| Mounting System | 101: M4x10 earthing stud / 201: M4x10 fixed mounting studs |
| Fixing Position | 201: studs at ends and centre (for >1000 mm lengths) |
| Construction Materials | Aluminium body with conductive fibre elements |
| Electrical Requirement | None (passive operation) |
| Maintenance | Minimal, periodic cleaning required |
| Installation Type | Fixed mounting close to material path |
Features
- Passive static control with no power supply required
- Suitable for high-speed sheet and web processing
- Effective reduction of high static charges to safe levels
- Simple installation and low operating cost
- Flexible custom-length design for different machine layouts
